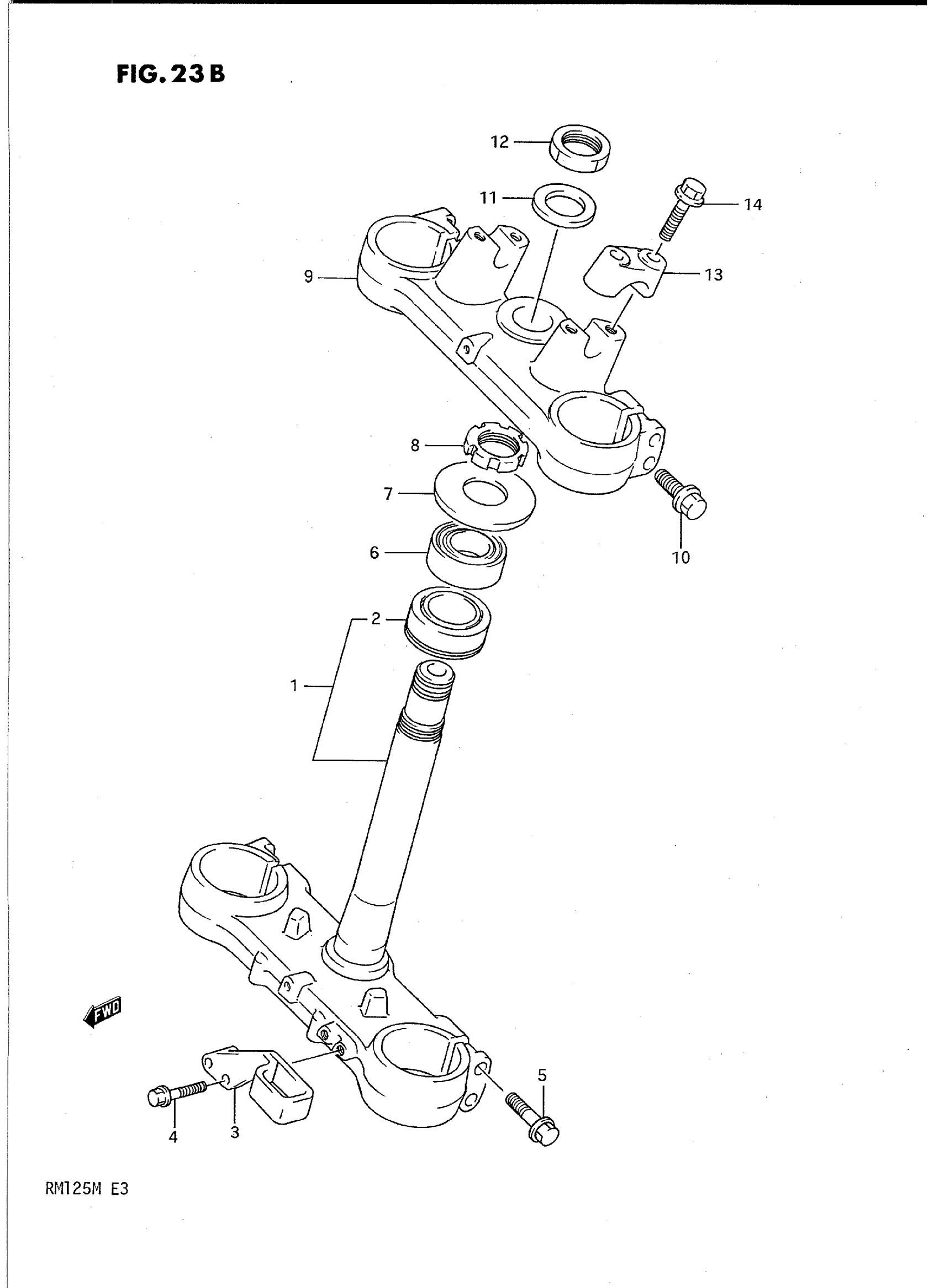

Suzuki RM125M (1991) STEERING STEM (MODEL M) Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2 This part replaces 51410-27C40.

51410-43D01

Unavailable

2

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$46.72

3

GUIDE, HOSE

58621-27C40

$25.70

4

BOLT This part replaces 58629-27C40.

01547-06257

$2.03

5

BOLT This part replaces 51328-27C40.

51166-27E30

$4.37

6

BEARING This part replaces 09265-28002.

09265-28003

Unavailable

7

SEAL, STEERING

51643-28C00

Unavailable

8

NUT, STEERING

51631-28C10

Unavailable

9

HEAD, STEERING STEM This part replaces 51310-27C40.

51310-28E00

Unavailable

10

BOLT This part replaces 51328-27C40.

51166-27E30

$4.37

11

WASHER,STEM HEAD This part replaces 51356-27C40.

51356-29E00

$15.29

12

NUT, STEM HEAD

51353-27C40

$27.87

13

HOLDER, HANDLE

56211-27100

$15.23

14

BOLT,HANDLE HOLDER (8X35)

51321-27C40

$4.96
