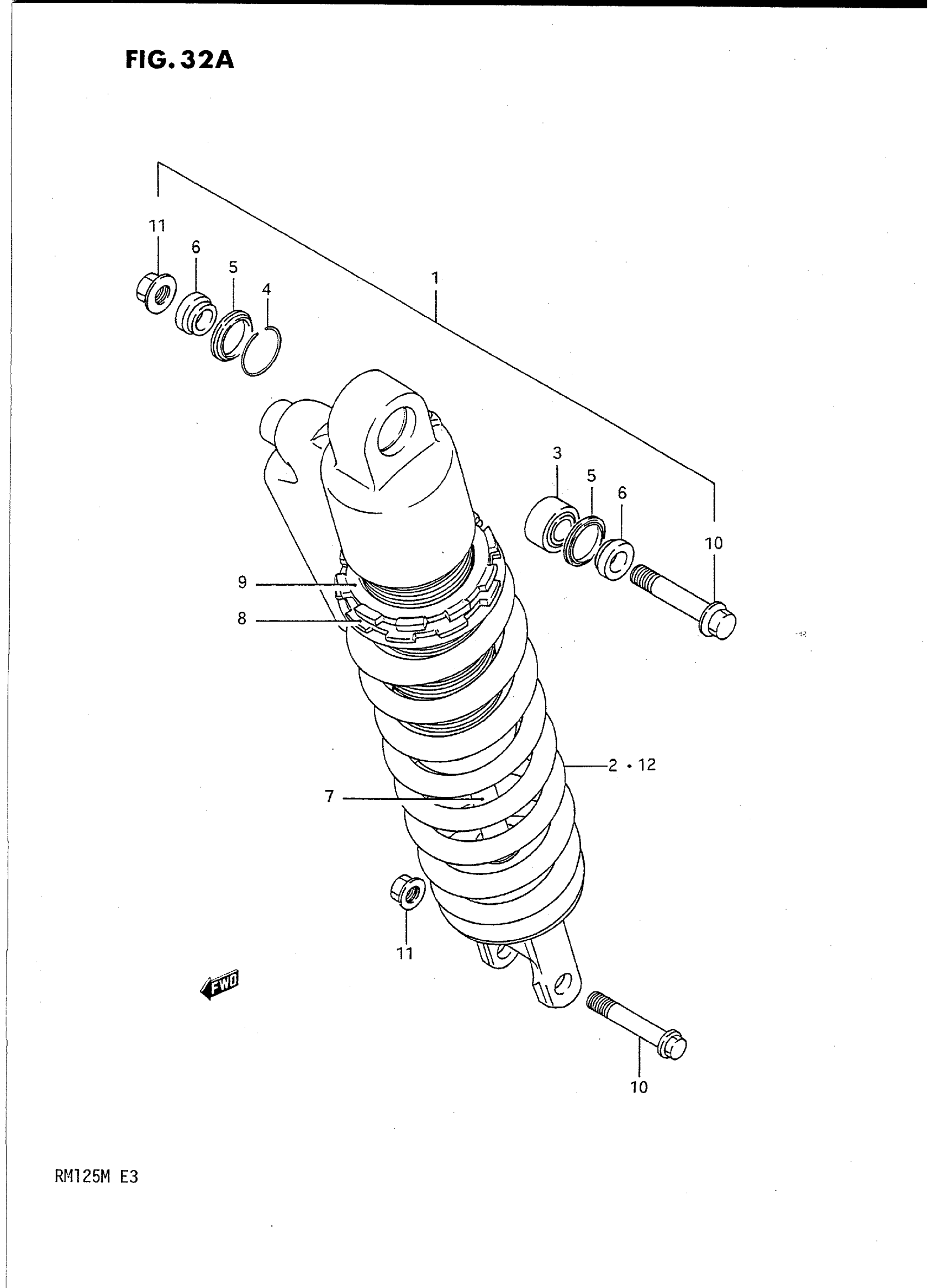

Suzuki RM125M (1991) SHOCK ABSORBER (MODEL L) Diagram

#

Description

Price

1

ABSORBER ASSY, REAR SHOCK | YELLOW; Includes Item(s) 2 - 9

62100-27C30-163

Unavailable

2

SPRING

62211-27C60

Unavailable

3

BEARING

62175-00B00

$61.15

4

RING, STOPPER This part replaces 62277-14200.

62657-34A01

$1.99

5

DUST SEAL

62226-01B20

Unavailable

6

COLLAR

62684-27C10

Unavailable

7

ROD, PISTON This part replaces 62120-27C20.

62120-28C30

Unavailable

8

GUIDE, SPRING

62191-27C20

Unavailable

9

NUT

62194-27C20

Unavailable

10

BOLT, LOWER (10X54) This part replaces 62311-28C00.

62311-28E00

$6.19

11

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

12

SPRING (HARD) | OPT

62211-28C50

Unavailable

12

SPRING (SOFT) | OPT

62211-27C00

Unavailable
