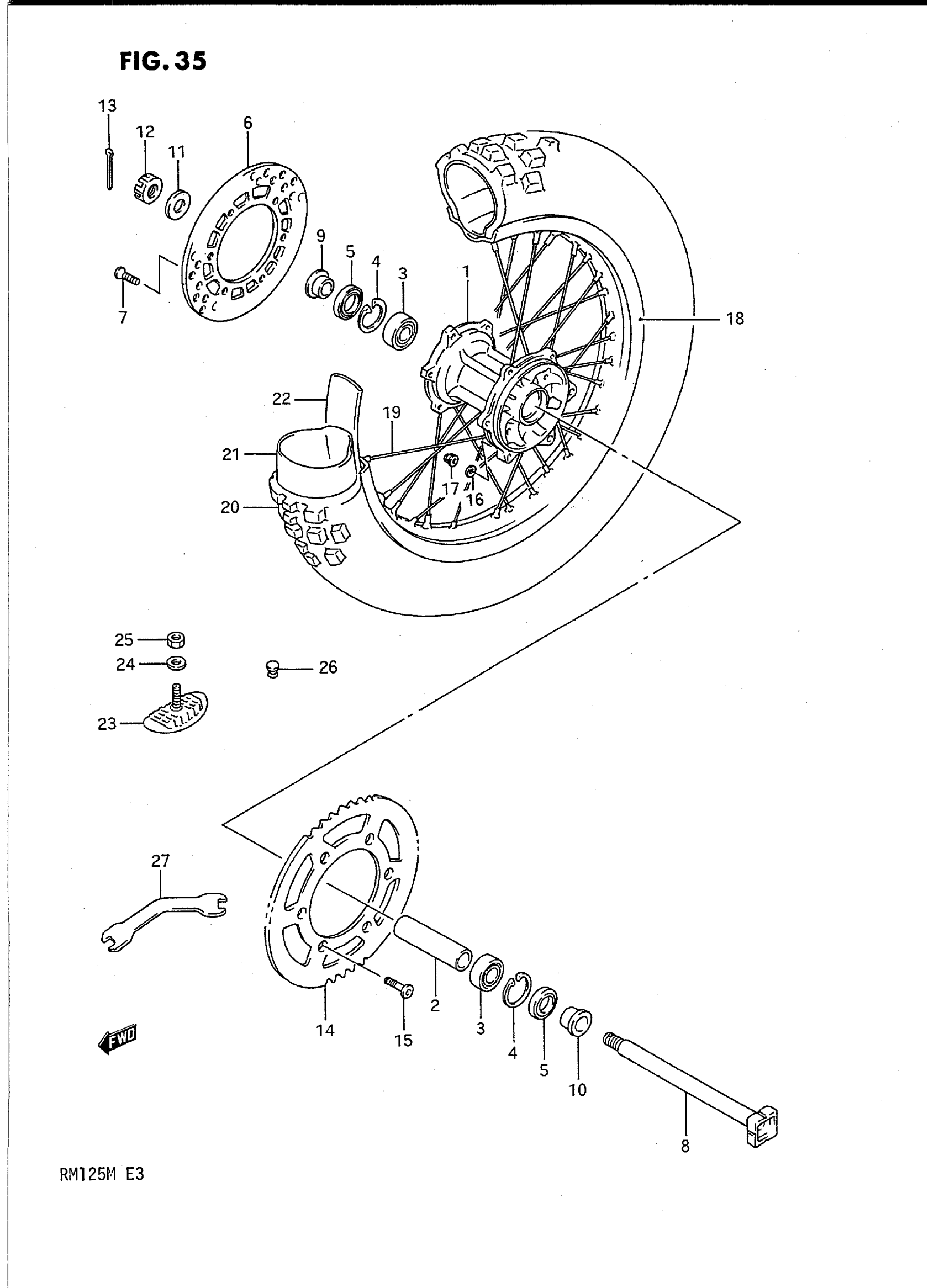

Suzuki RM125M (1991) REAR WHEEL (MODEL K) Diagram

#

Description
Price

1

HUB, REAR

64110-27C01

Unavailable

2

SPACER, BEARING

64731-00B22

Unavailable

3

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

4

CIRCLIP This part replaces 08331-41476.

08331-41479

$2.31

5

OIL SEAL (26X47X5) This part replaces 09284-26003.

09283-26019

$11.61

6

DISC, REAR BRAKE This part replaces 69211-27C00.

69211-43D00

$299.30

7

SCREW

02122-06167

$1.49

8

AXLE, REAR

64711-27C01

Unavailable

9

SPACER, RH

64741-00B21

Unavailable

10

SPACER, LH

64751-27C00

Unavailable

11

WASHER This part replaces 09160-19010.

09160-19022

$4.90

12

NUT This part replaces 08314-41188.

08314-40187

$5.64

13

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

14

SPROCKET, REAR (NT:51)

64511-40261

$155.22

14

SPROCKET,RR (NT:50) | OPT ALUMINIUM This part replaces 64511-40271.

64511-36E00

$126.60

14

SPROCKET, REAR (NT:52) | OPT ALUMINIUM

64511-40266

Unavailable

14

SPROCKET, REAR (NT:50) | OPT STEEL This part replaces 64511-00B11.

64511-00B12

$125.38

14

SPROCKET, REAR (NT:51) | OPT STEEL

64511-00B21

Unavailable

14

SPROCKET, REAR (NT:52) | OPT STEEL

64511-00B31

Unavailable

15

SCREW

09120-08004

$2.40

16

WASHER

09164-08011

$2.71

17

NUT

08319-31087

$2.32

18

RIM, WHEEL (1.85X18AL)

65311-27C00

Unavailable

19

SPOKE ASSY, WHEEL

65320-27C00

Unavailable

20

TIRE, REAR (100/100-18) DUNLO

65100-27C00

Unavailable

21

TUBE ASSY, WHEEL INNER This part replaces 65200-14540.

65200-42AA1

$65.62

22

PROTECTOR, INNER TUBE This part replaces 65261-14540.

65261-15D00

Unavailable

23

STOPPER, BEAD This part replaces 65270-46910.

65270-43D00

$58.75

24

WASHER This part replaces 08322-11088.

08322-01087

$2.13

25

NUT This part replaces 08310-22088.

08310-00087

$2.13

26

CAP

09250-08013

$2.68

27

SPANNER, OPEN

09813-00039

Unavailable
