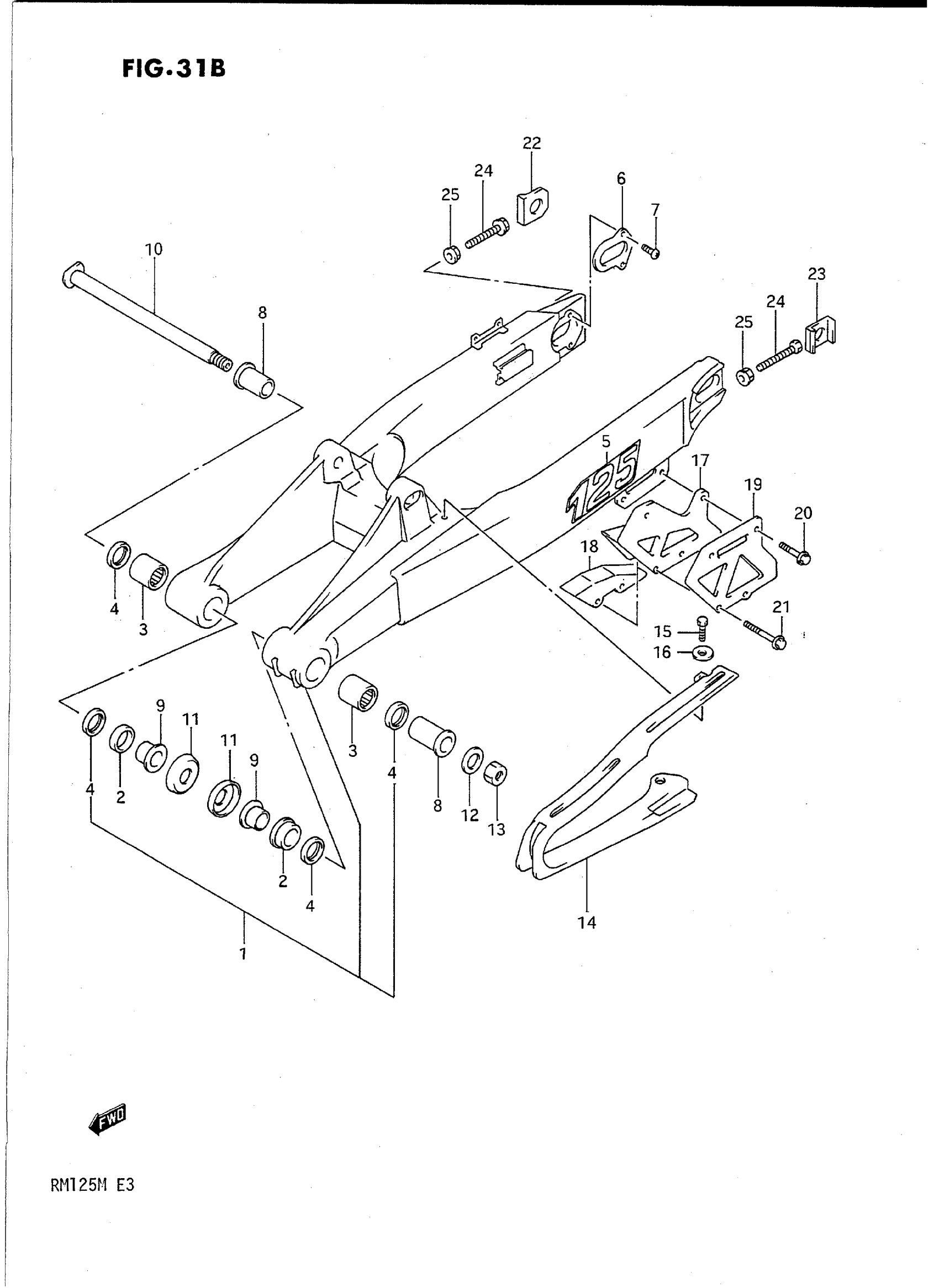

Suzuki RM125M (1991) REAR SWINGING ARM (MODEL M) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 61000-27C20.

61000-27C22

Unavailable

2

BUSH

61261-27C00

Unavailable

3

BEARING

09263-20039

Unavailable

4

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

$5.24

5

EMBLEM

68381-27C10-12R

Unavailable

6

PLATE, INNER

61128-27C10

Unavailable

7

SCREW,5X8 This part replaces 09125-05072.

09125-05072-XC0

$2.15

8

SPACER

61251-27C00

Unavailable

9

SPACER, INNER

61252-27C00

Unavailable

10

SHAFT, PIVOT

61211-27C00

Unavailable

11

COVER

61262-27C10

Unavailable

12

WASHER

09160-14027

$2.42

13

NUT This part replaces 09159-14013.

09159-14019

$11.61

14

BUFFER, CHAIN DEFENSE

61273-27C01

$55.52

15

BOLT

01547-06167

$1.65

16

WASHER

09169-06057

$3.18

17

GUIDE, CHAIN

61341-27C20

$45.08

18

DEFENCE, CHAIN GUIDE

61348-27C20

$32.18

19

PLATE, GUIDE OUTER

61342-27C20

Unavailable

20

BOLT, 6 X 20 This part replaces 09103-06146.

09103-06143

Unavailable

21

SCREW, UNDER

09126-06013

$3.60

22

WASHER, RH

61445-27C01

Unavailable

23

WASHER,CHAIN AD This part replaces 61446-27C20.

61446-27C21

$37.60

24

BOLT

09100-08287

$3.10

25

NUT

09159-08034

$1.62
