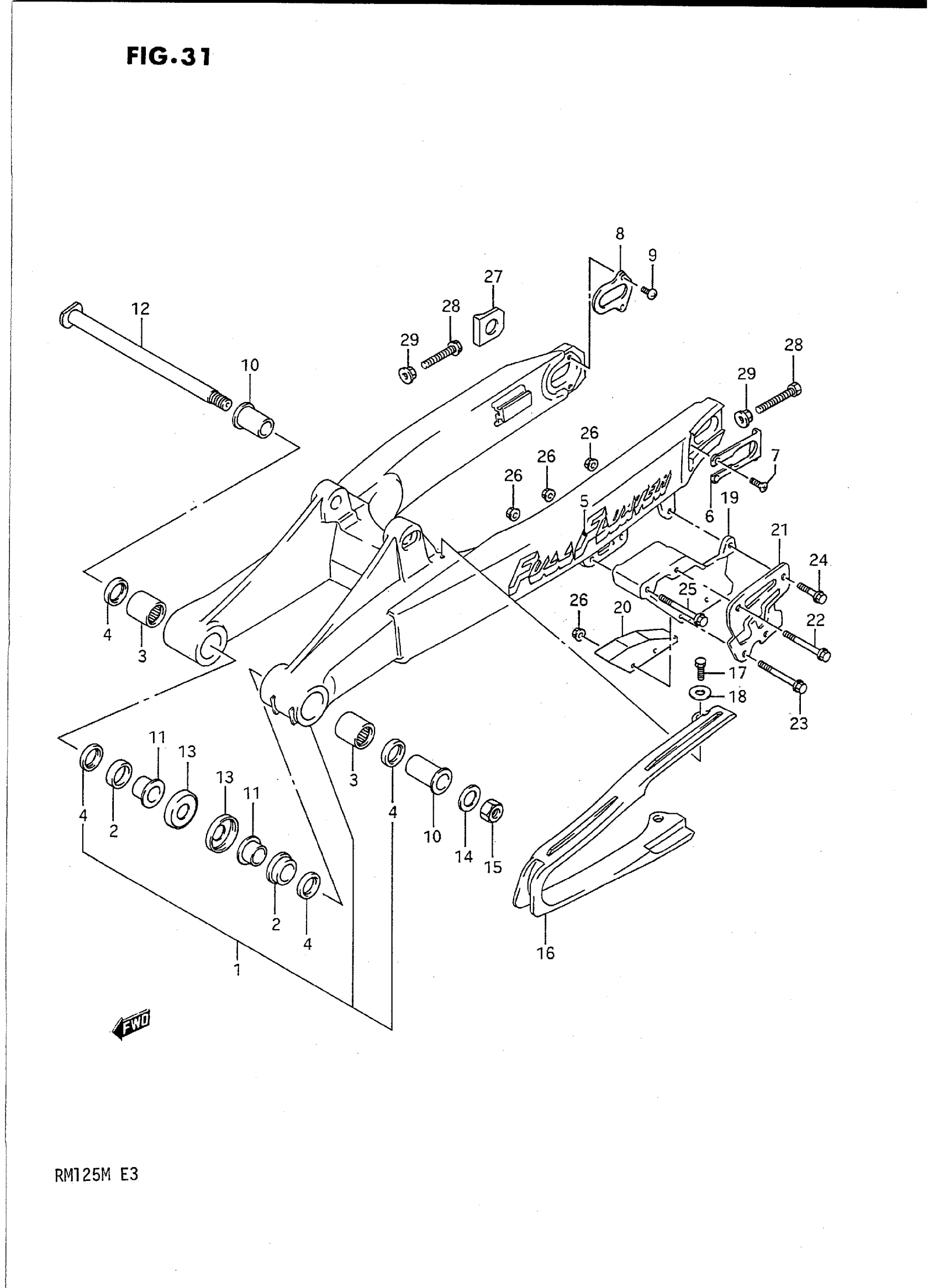

Suzuki RM125M (1991) REAR SWINGING ARM (MODEL K) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | ->61000-27C01 This part replaces 61000-27C00.

61000-27C01

Unavailable

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 9

61000-27C01

Unavailable

2

BUSH

61261-27C00

Unavailable

3

BEARING

09263-20039

Unavailable

4

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

$5.24

5

EMBLEM This part replaces 68381-19A10-97J.

68381-27C00-97J

Unavailable

6

PLATE, OUTER | FOR 61000-27C01 This part replaces 61129-27C00.

61129-27C10

Unavailable

7

SCREW | FOR 61000-27C01

09120-05003

$1.91

8

PLATE, INNER | FOR 61000-27C01 This part replaces 61128-27C00.

61128-27C10

Unavailable

9

SCREW,5X8 | FOR 61000-27C01 This part replaces 09125-05072.

09125-05072-XC0

$2.15

10

SPACER

61251-27C00

Unavailable

11

SPACER, INNER

61252-27C00

Unavailable

12

SHAFT, PIVOT

61211-27C00

Unavailable

13

COVER This part replaces 61262-27C00.

61262-27C10

Unavailable

14

WASHER

09160-14027

$2.42

15

NUT This part replaces 09159-14013.

09159-14019

$11.61

16

BUFFER, CHAIN DEFENSE

61273-27C01

$55.52

17

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

18

WASHER

09169-06057

$3.18

19

GUIDE, CHAIN

61341-27C00

Unavailable

20

DEFENSE, CHAIN GUIDE This part replaces 61348-01B30.

61348-27C20

$32.18

21

PLATE, GUIDE OUTER

61342-27C00

Unavailable

22

BOLT, UPPER REAR

01547-06607

$3.18

23

BOLT, UNDER

01547-06507

$2.41

24

BOLT, REAR

01547-06307

$2.03

25

BOLT, UPPER FRONT

01547-06557

$2.32

26

NUT

08319-31067

$2.03

27

WASHER, RH This part replaces 61445-27C00.

61445-27C01

Unavailable

28

BOLT (8X50) This part replaces 09100-08275.

09100-08287

$3.10

29

NUT This part replaces 08310-12088.

08310-00087

$2.13
