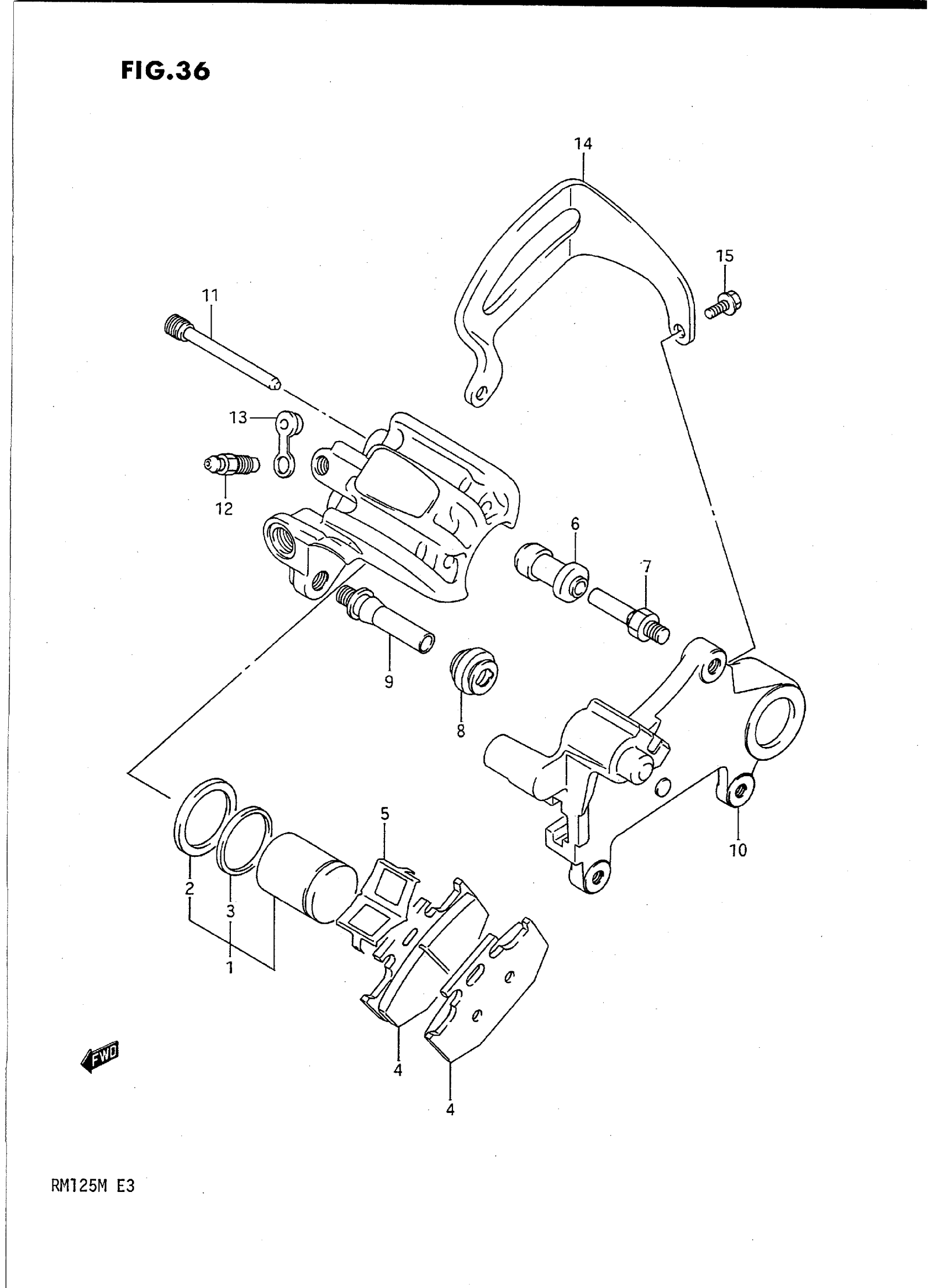

Suzuki RM125M (1991) REAR CALIPERS (MODEL K) Diagram

#

Description
Price

CALIPER ASSY, REAR | Includes Item(s) 1 - 13 This part replaces 69100-27C00.

69100-28C00

Unavailable

1

PISTON SET

69100-27830

Unavailable

2

SEAL SET, PISTON This part replaces 59107-00B20.

69100-36810

$9.03

3

SEAL, DUST

59108-00B20

Unavailable

4

PAD SET This part replaces 69140-27C00.

69100-05840

Unavailable

5

SPRING

59315-27C00

$14.02

6

BOOT

59386-13A00

$7.95

7

PIN

59382-14500

$8.95

8

BOOT

59303-14500

$5.52

9

PIN

59305-27C00

$23.48

10

BRACKET

69351-27C00

Unavailable

11

PIN

59345-14600

$16.25

12

BLEEDER

59121-01A00

$8.73

13

CAP

59122-01A00

$4.34

14

GUARD, CALIPER This part replaces 69725-27C10.

69725-27C20

Unavailable

15

BOLT

01547-06107

$1.65
