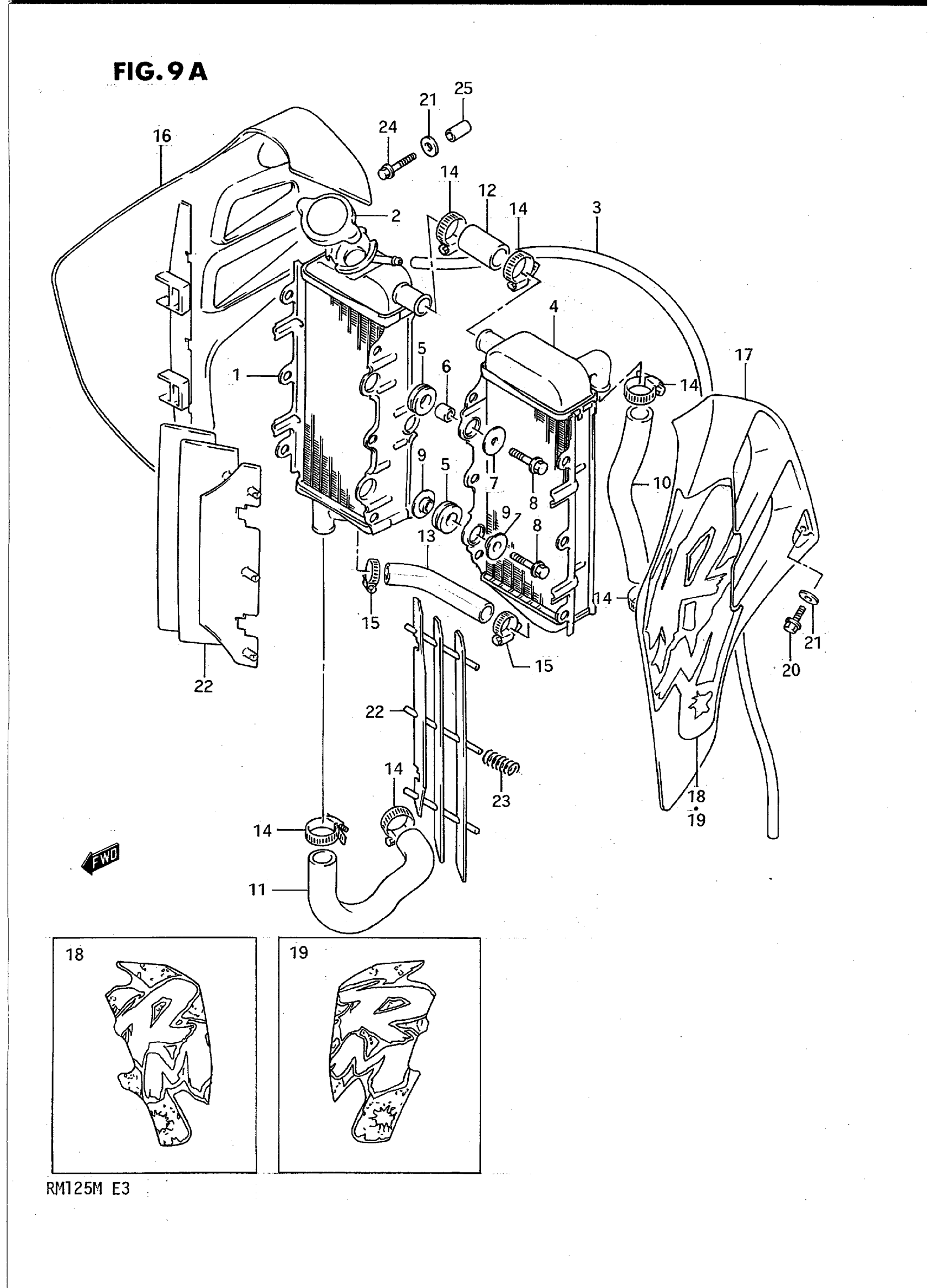

Suzuki RM125M (1991) RADIATOR (MODEL M) Diagram

#

Description
Price

1

RADIATOR, RH

17710-27C30

Unavailable

2

CAP, RADIATOR This part replaces 17730-20930.

17730-08J00

$42.50

3

HOSE (5X8X2000) | L:1000->650 This part replaces 09351-50801-00A.

09351-50803-00B

$9.10

4

RADIATOR, LH

17720-27C30

Unavailable

5

CUSHION, SUPPORT

17787-19A00

$3.56

6

SPACER (6.5X10.5X12)

09180-06221

Unavailable

7

WASHER (6.5X24X1.2) This part replaces 09160-06002.

09160-06114

$2.03

8

BOLT

01547-06257

$2.03

9

WASHER, RADIATOR SUPPORT

17781-26C00

$2.81

10

HOSE, INLET

17851-27C30

Unavailable

11

HOSE,RADIATOR O This part replaces 17852-27C30.

17852-27810

Unavailable

12

HOSE, CYLINDER JOINT This part replaces 17853-27C30.

17851-01A00

$22.10

13

HOSE, JOINT NO.2 This part replaces 17854-27C30.

17854-43810

$13.32

14

CLAMP This part replaces 09402-25502.

09402-28511

$6.88

15

CLAMP This part replaces 09402-22502.

09402-22511

$7.05

16

COVER, RADIATOR RH This part replaces 17761-27C00-30H.

17761-27C00-25Y

$52.66

17

COVER, RADIATOR LH This part replaces 17762-27C00-30H.

17762-27C00-25Y

Unavailable

18

EMBLEM, RADIATOR COVER RH

68661-27C40-0WN

Unavailable

19

EMBLEM, RADIATOR COVER LH

68671-27C40-0WN

Unavailable

20

BOLT

01547-06127

$1.65

21

WASHER (6.5X20X1.5)

09168-06027

$2.80

22

LOUVER, RADIATOR

17831-26C00

$19.41

23

SPRING This part replaces 09440-11024.

09440-11024-XC0

$3.79

24

BOLT

01547-06307

$2.03

25

SPACER (6.4X10X22)

09180-06178

$4.50
