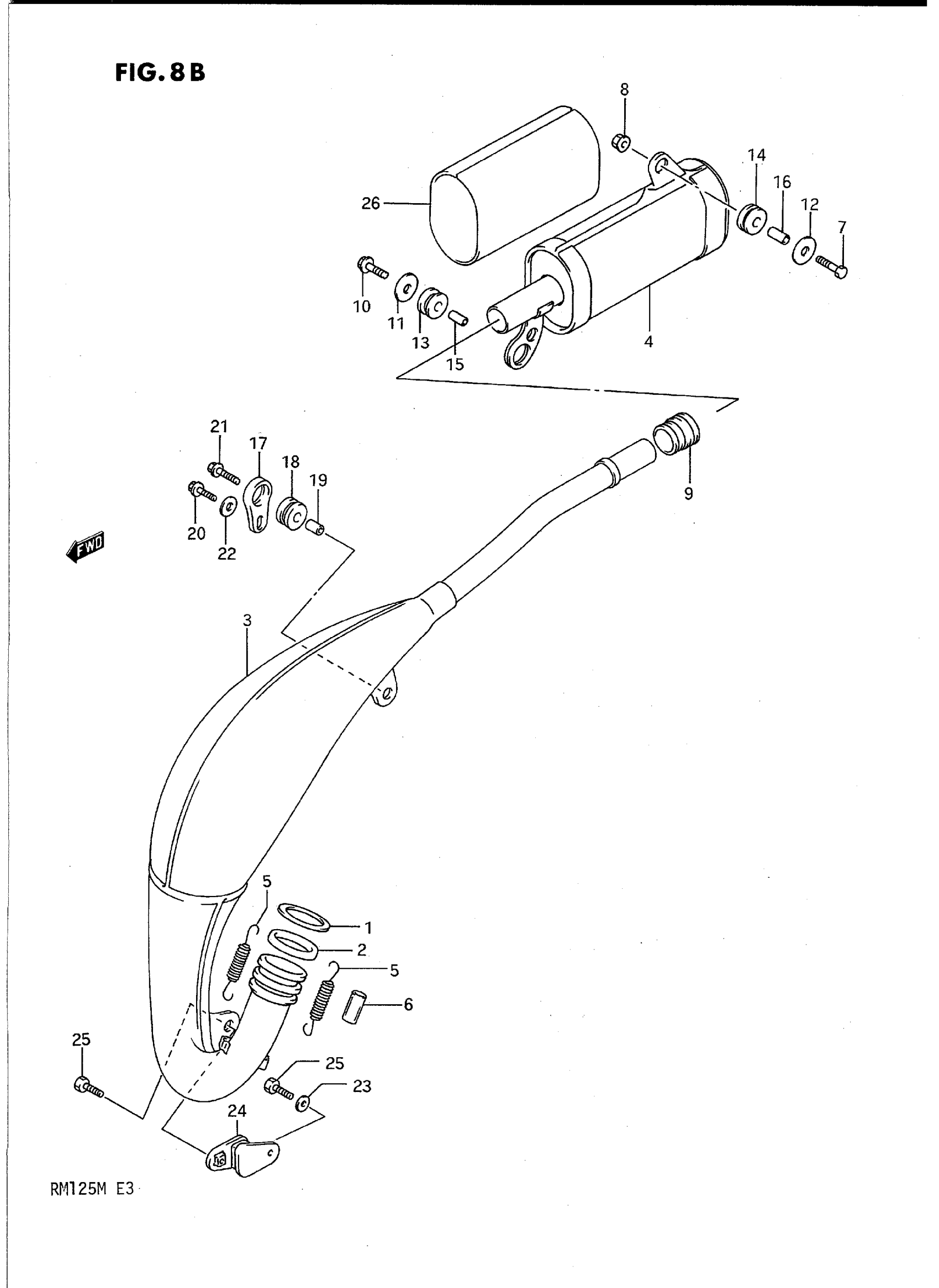

Suzuki RM125M (1991) MUFFLER (MODEL M) Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

14172-27C30

Unavailable

2

O RING, EXHAUST PIPE

14171-27C30

Unavailable

3

MUFFLER, 1ST

14310-27C30-H01

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 14330-27C41-H01.

14330-27C43-H01

Unavailable

5

SPRING This part replaces 09443-10034.

09443-10034-XC0

Unavailable

6

HOSE | L:300->30 This part replaces 09352-11153-300.

09352-11154-600

$13.05

7

BOLT This part replaces 01107-08307.

01500-08307

$3.04

8

NUT

08319-31087

$2.32

9

CONNECTOR, 2ND MUFFLER This part replaces 14771-16700.

14771-43D00

$21.25

10

BOLT

01547-06207

$2.01

11

WASHER (6.5X24X1.2) This part replaces 09160-06002.

09160-06114

$2.03

12

WASHER (8.5X26X1.2)

09160-08032

$2.30

13

CUSHION

09320-10041

Unavailable

14

CUSHION

09320-11016

Unavailable

15

SPACER, LOWER LH This part replaces 09180-06210.

09180-06285

$2.74

16

SPACER,8.1X11.5 This part replaces 09180-08155.

09180-08170

$5.73

17

PLATE, MOUNTING

14761-27C00

$8.76

18

CUSHION (8.7X26X14) This part replaces 14762-01B01.

14762-01B02

$3.74

19

SPACER This part replaces 09180-06062.

09180-06268

$2.19

20

BOLT

01547-06257

$2.03

21

BOLT

01547-06167

$1.65

22

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

23

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06069.

09160-06052

$1.49

24

DAMPER,MUFFLER This part replaces 14770-20400.

14770-20402

$11.75

25

BOLT This part replaces 01547-06165.

01547-0616B

$2.45

26

SILENCER, MUFFLER | OPT

14351-27C40

Unavailable
