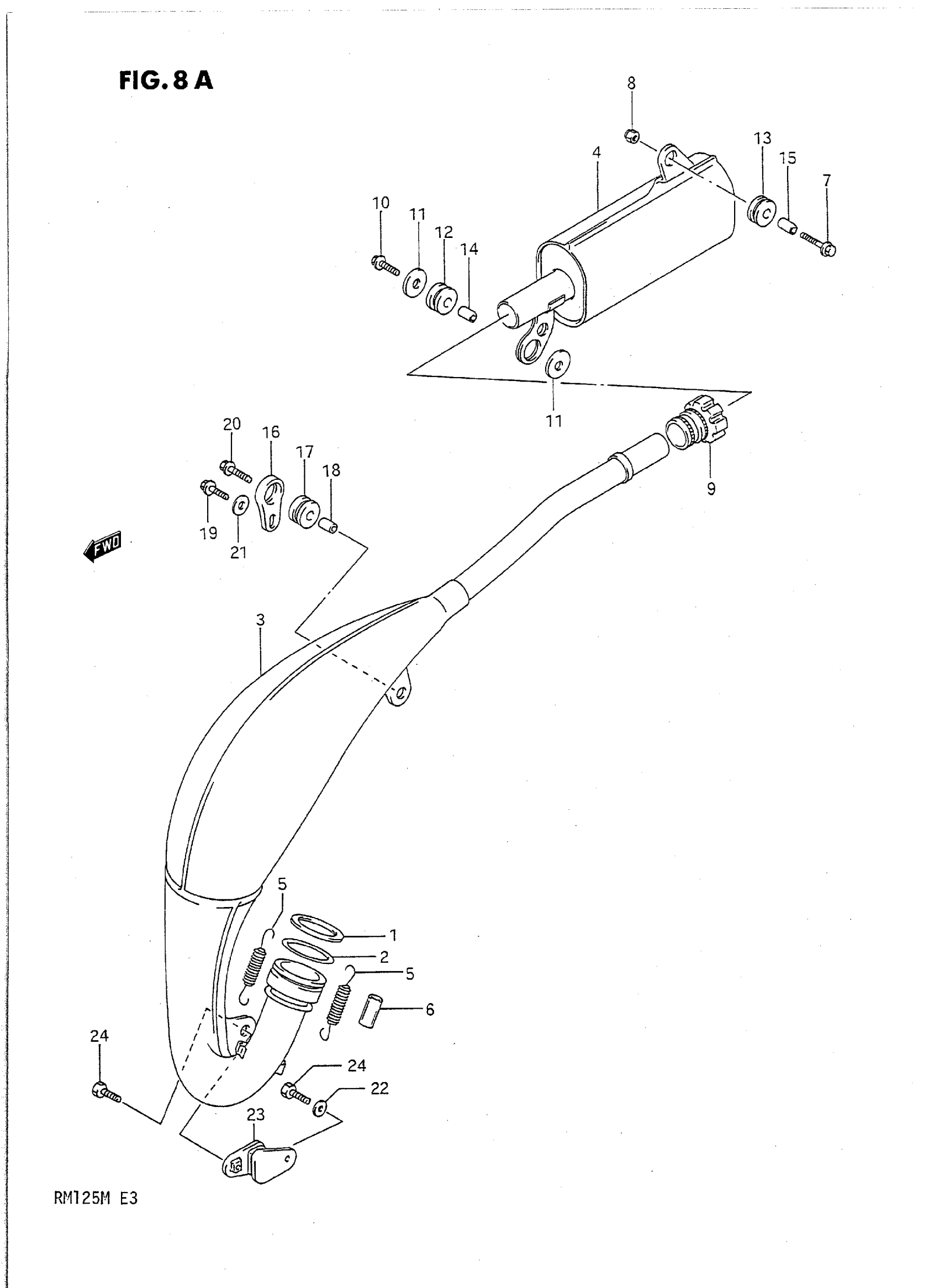

Suzuki RM125M (1991) MUFFLER (MODEL L) Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

14172-27C00

Unavailable

2

O RING, EXHAUST PIPE

14171-27C00

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 14310-27C21-H01.

14310-27C22-H01

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 14330-27C00-H01.

14330-27C43-H01

Unavailable

5

SPRING This part replaces 09443-10034.

09443-10034-XC0

Unavailable

6

HOSE | L:300->30 This part replaces 09352-11153-300.

09352-11154-600

$13.05

7

BOLT

01547-06257

$2.03

8

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

9

CONNECTOR, 2ND MUFFLER

14771-27C10

Unavailable

10

BOLT

01547-06207

$2.01

11

WASHER (6.5X24X1.2) This part replaces 09160-06002.

09160-06114

$2.03

12

CUSHION

09320-10041

Unavailable

13

CUSHION

09320-11016

Unavailable

14

SPACER, LOWER LH This part replaces 09180-06210.

09180-06285

$2.74

15

SPACER (6.5X11.5X13)

09180-06212

$2.93

16

PLATE, MOUNTING

14761-27C00

$8.76

17

CUSHION (8.7X26X14) This part replaces 14762-01B01.

14762-01B02

$3.74

18

SPACER This part replaces 09180-06062.

09180-06268

$2.19

19

BOLT

01547-06257

$2.03

20

BOLT

01547-06167

$1.65

21

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

22

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06069.

09160-06052

$1.49

23

DAMPER,MUFFLER This part replaces 14770-20400.

14770-20402

$11.75

24

BOLT This part replaces 01547-06165.

01547-0616B

$2.45
