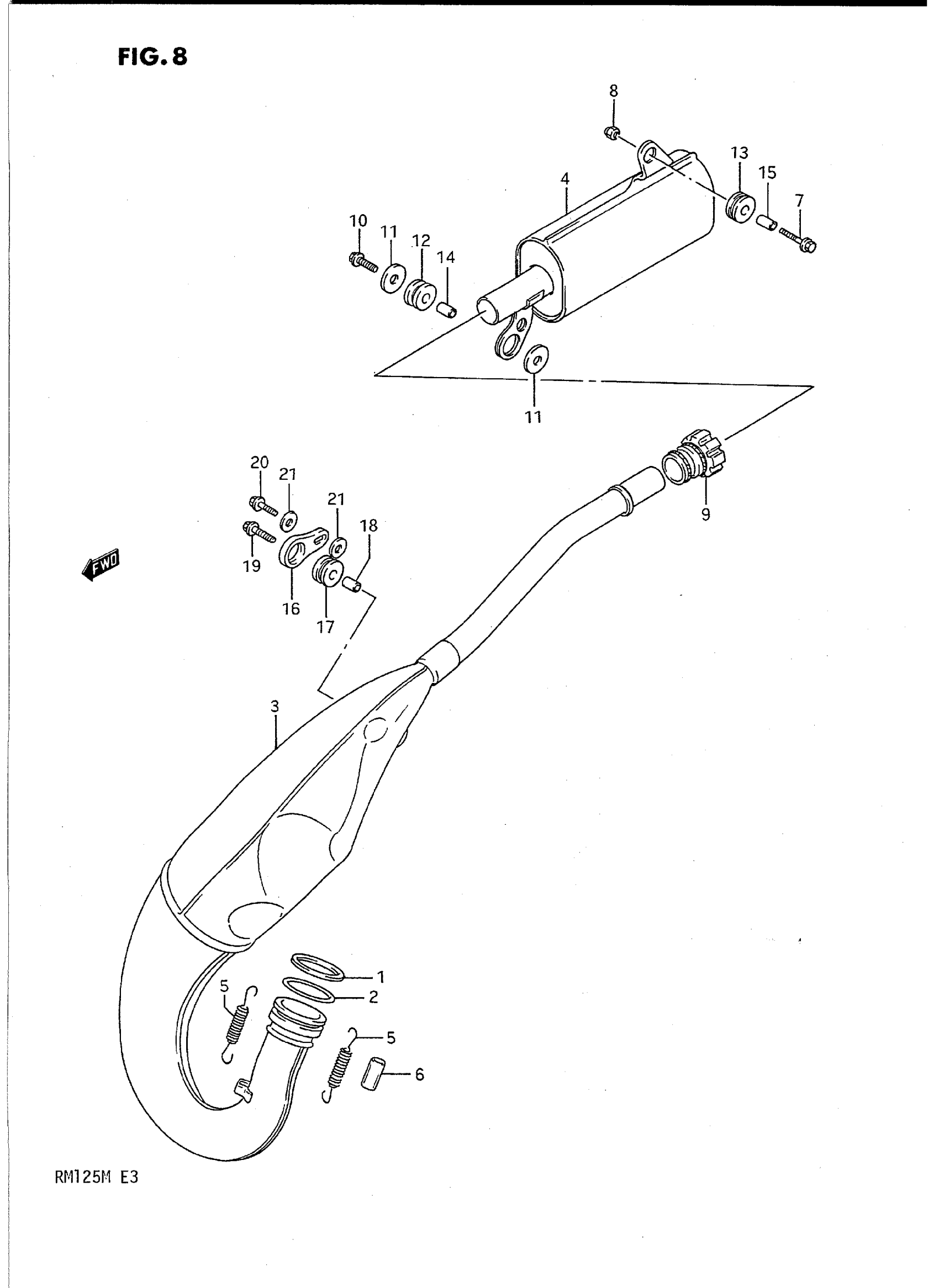

Suzuki RM125M (1991) MUFFLER (MODEL K) Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

14172-27C00

Unavailable

2

O RING, EXHAUST PIPE

14171-27C00

Unavailable

3

MUFFLER, 1ST

14310-27C00-H01

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 14330-27C00-H01.

14330-27C43-H01

Unavailable

5

SPRING This part replaces 09443-10034.

09443-10034-XC0

Unavailable

6

HOSE | L:300->30 This part replaces 09352-11153-300.

09352-11154-600

$13.05

7

BOLT

01547-06257

$2.03

8

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

9

CONNECTOR, 2ND MUFFLER

14771-27C10

Unavailable

10

BOLT

01547-06207

$2.01

11

WASHER This part replaces 09160-06030.

09160-06136

$1.84

12

CUSHION

09320-10041

Unavailable

13

CUSHION

09320-11016

Unavailable

14

SPACER, LOWER LH This part replaces 09180-06210.

09180-06285

$2.74

15

SPACER (6.5X11.5X13)

09180-06212

$2.93

16

PLATE, MOUNTING

14761-01B00

Unavailable

17

CUSHION (8.7X26X14) This part replaces 14762-01B01.

14762-01B02

$3.74

18

SPACER (6.4X9X16)

09180-06136

$2.65

19

BOLT

01547-06257

$2.03

20

BOLT

01547-06167

$1.65

21

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91
