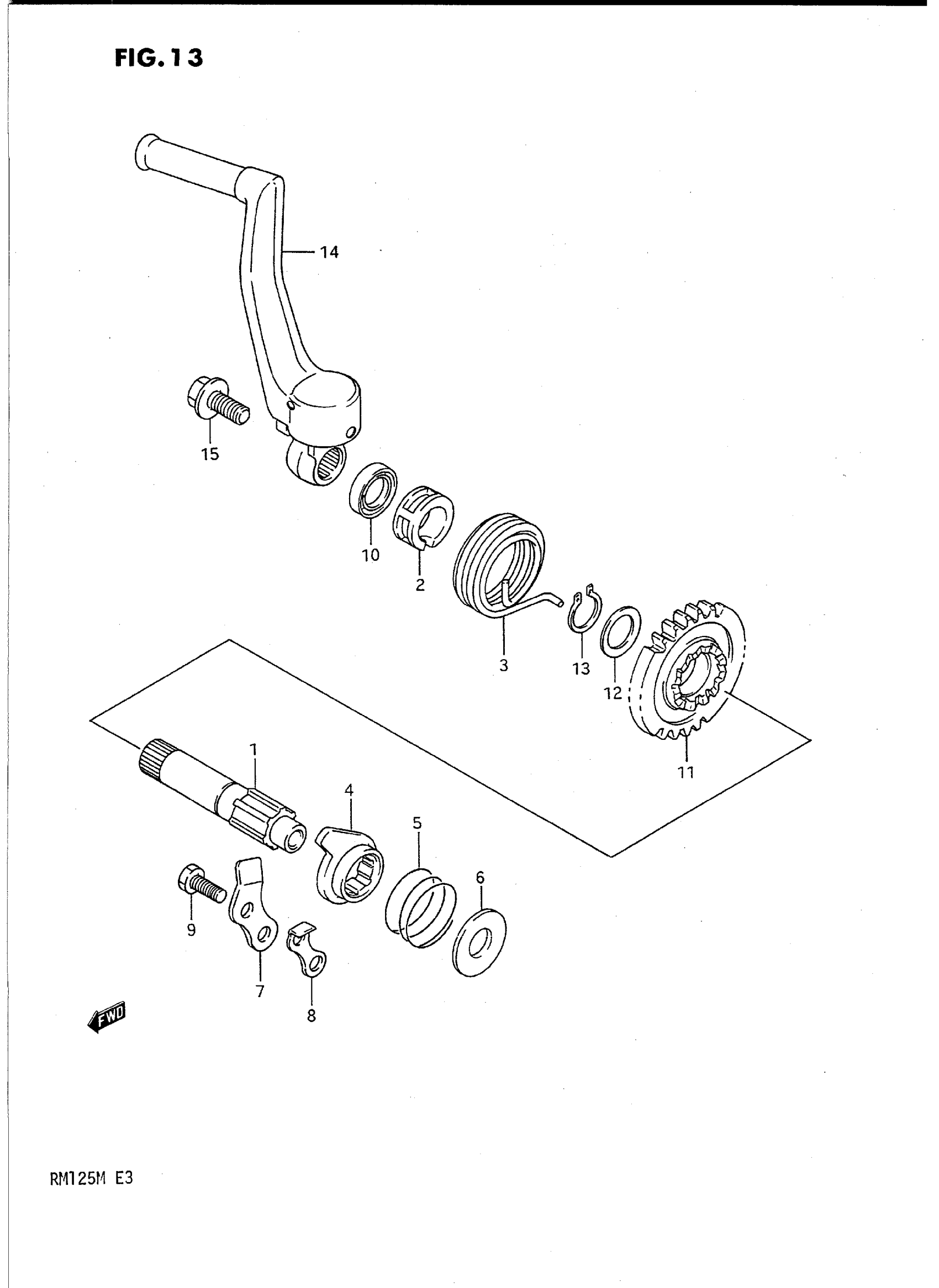

Suzuki RM125M (1991) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER This part replaces 26211-27C00.

26211-27C02

$113.25

2

GUIDE, SPRING

26221-27C00

$5.35

3

SPRING

09448-45013

$12.50

4

STARTER, KICK This part replaces 26231-02B00.

26231-02B02

$36.17

5

SPRING

09440-31002

$2.22

6

PLATE

08211-12301

$2.03

7

GUIDE, KICK STARTER

26232-40200

$7.08

8

STOPPER, KICK STARTER This part replaces 26233-40200.

26233-40201

$5.52

9

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

10

OIL SEAL (16X24X5)

09285-16003

$3.42

11

GEAR, KICK DRIVE (NT:26)

26241-27C00

Unavailable

12

WASHER (16X24X0.50) This part replaces 08221-16245.

09181-16158

$2.71

13

CIRCLIP

08331-31169

$1.78

14

LEVER ASSY,KICK | MODEL K This part replaces 26300-27C01.

26300-36E11

Unavailable

14

LEVER ASSY,KICK | MODEL L This part replaces 26300-27C10.

26300-36E11

Unavailable

14

LEVER ASSY,KICK | MODEL M This part replaces 26300-27C30.

26300-36E11

Unavailable

15

BOLT

09103-08253

$3.10
