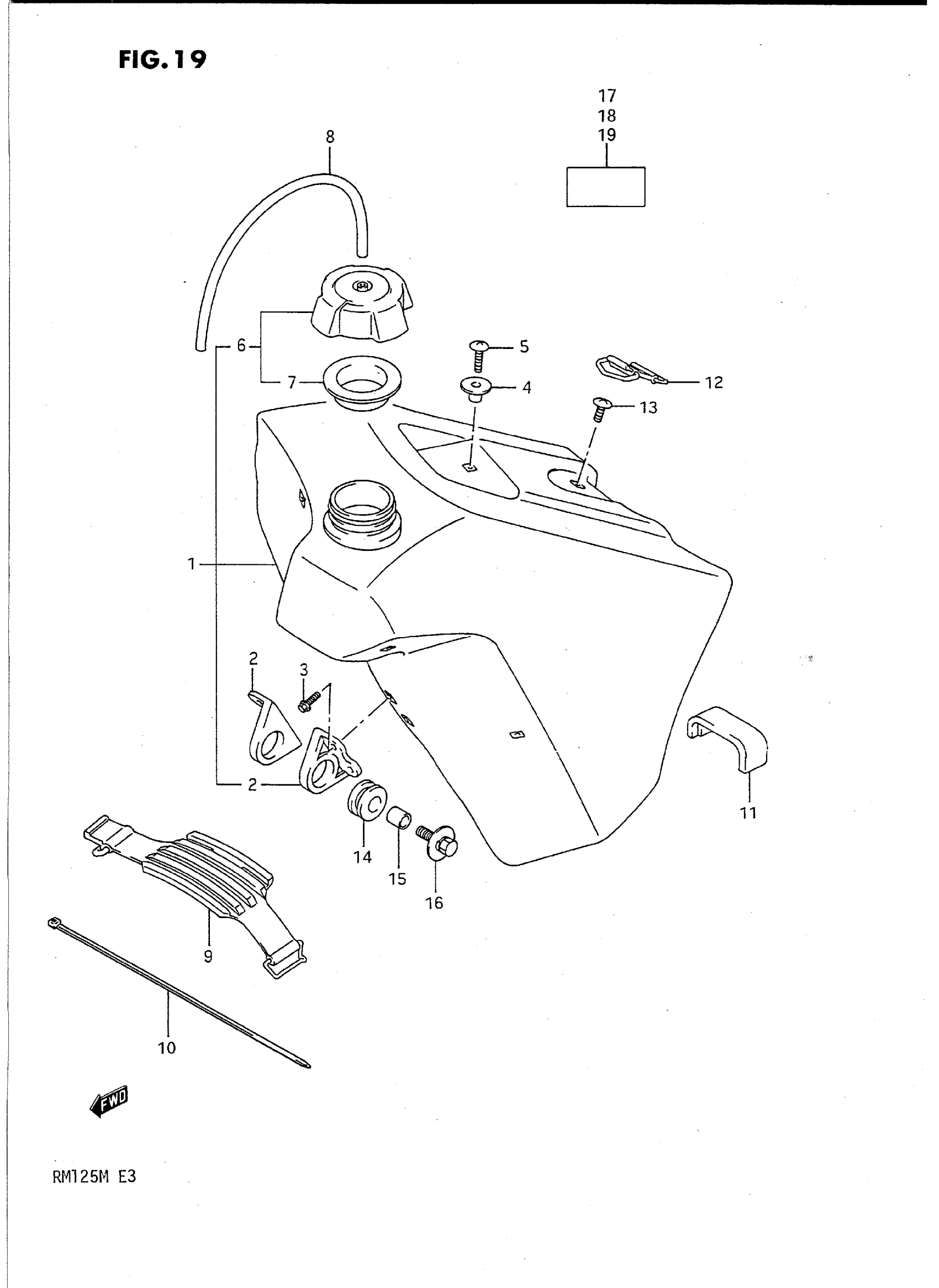

Suzuki RM125M (1991) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 44100-27831-25Y.

44100-27832-25Y

Unavailable

2

BRACKET, FRONT | MODEL K This part replaces 44131-27C00.

44131-27C01

$12.63

2

BRACKET, FRONT | MODEL L/M

44131-27C01

$12.63

3

BOLT, FRONT

01547-06127

$1.65

4

HOOK, SEAT FR This part replaces 44132-27C00.

44132-27C01

$17.17

5

SCREW, HOOK

02142-06207

$1.49

6

CAP SET,FUEL TA This part replaces 44200-27860.

44200-27871

$22.96

7

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

$4.21

8

HOSE,5X10X600 | MODEL K This part replaces 09352-50823-350.

44421-13ER0

$10.06

8

HOSE,5X10X600 | MODEL L/M This part replaces 09352-50823-300.

44421-13ER0

$10.06

9

CUSHION, UPPER FRONT | MODEL K

44541-27C00

Unavailable

9

CUSHION, UPPER FRONT | MODEL L/M

44541-26C00

$18.02

10

CLAMP | MODEL K

09407-30402

$4.11

10

CLAMP | MODEL L/M This part replaces 09407-20405.

09407-25402

$4.64

11

CUSHION, UPPER REAR

44542-27C00

Unavailable

12

BAND, REAR

44560-27C00

$7.69

13

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

14

CUSHION

09320-12030

$2.53

15

BOLT

09118-08132

Unavailable

16

SPACER This part replaces 09180-08003.

09180-08191

$2.53

17

LABEL,WARNING This part replaces 68367-41300.

68367-41301

Unavailable

18

LABEL, WARNING

68369-41300

Unavailable

19

LABEL, WARNING

68369-41310

Unavailable
