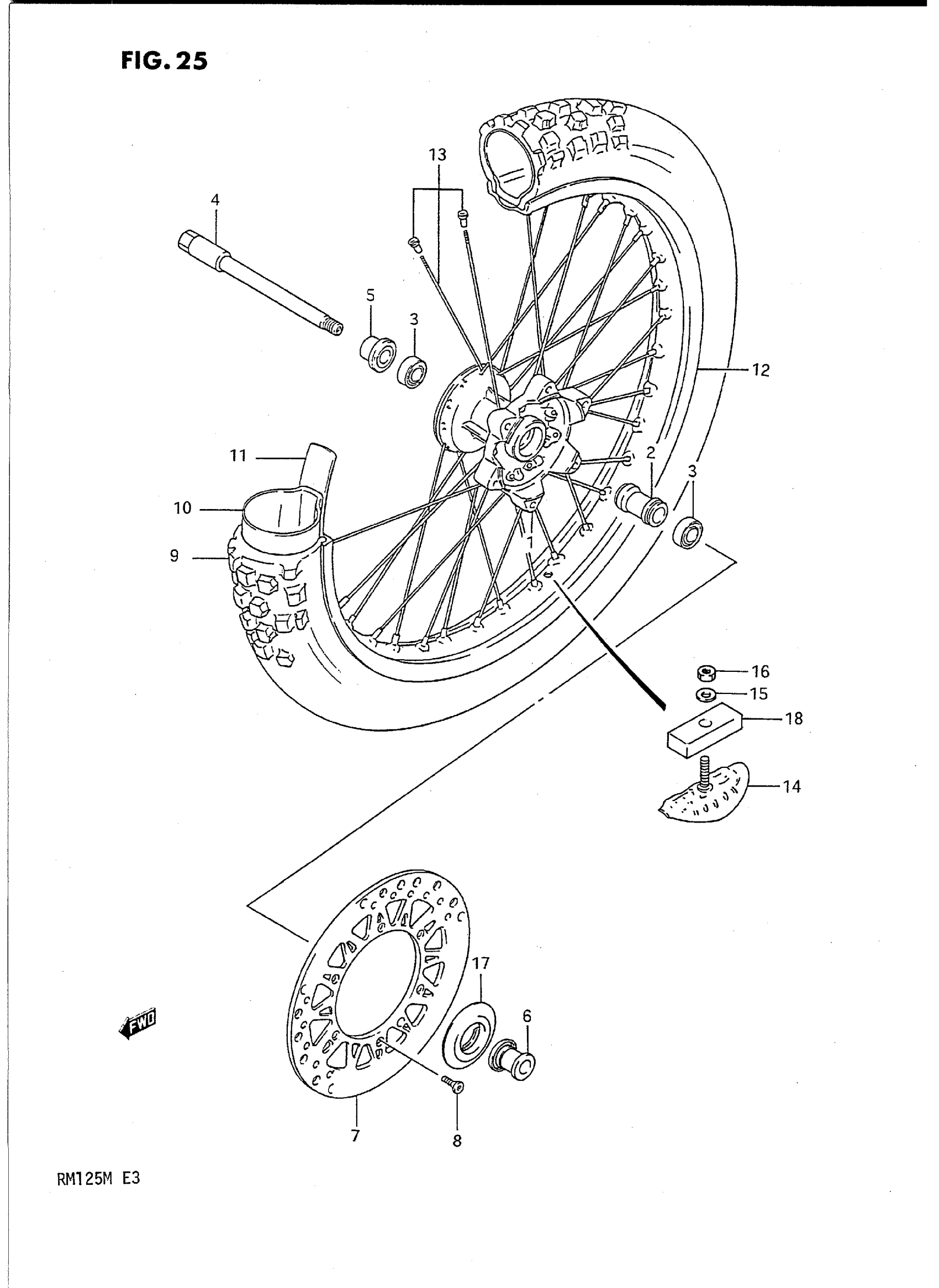

Suzuki RM125M (1991) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT WHEEL

54111-27C00

Unavailable

2

SPACER, FRONT HUB

54730-01B00

$53.92

3

BEARING

08123-60037

$21.77

4

AXLE, FRONT This part replaces 54711-01B01.

54711-01B02

Unavailable

5

SPACER, AXLE RH

54740-01B01

Unavailable

6

SPACER, AXLE, LH | MODEL K This part replaces 54750-01B00.

54750-05D00

Unavailable

6

SPACER, AXLE, LH | MODEL L/M This part replaces 54750-27C10.

54750-05D00

Unavailable

7

DISC, FRONT BRAKE This part replaces 59221-27C00.

59221-28C00

Unavailable

8

SCREW

02122-06167

$1.49

9

NO DESCRIPTION AVAILABLE This part replaces 55100-01B10.

55110-36E00

Unavailable

10

TIRE, FRONT This part replaces 55200-14540.

55200-16511

$36.73

11

PROTECTOR

55261-14540

$3.83

12

RIM, FRONT WHEEL (1.60X21) This part replaces 55311-27C00.

55311-28C01

Unavailable

13

SPOKE SET, FRONT WHEEL This part replaces 55320-01B00.

55320-28E00

$137.05

14

STOPPER, BEAD

65270-14300

$52.73

15

WASHER This part replaces 08322-11088.

08322-01087

$2.13

16

NUT | MODEL K This part replaces 08310-22088.

08310-00087

$2.13

16

NUT | MODEL L/M This part replaces 08310-12088.

08310-00087

$2.13

17

CAP, HUB LH | MODEL L/M

54138-27C10

Unavailable

18

CUSHION, BEAD STOPPER | MODEL L/M

65271-27C00

$7.42
