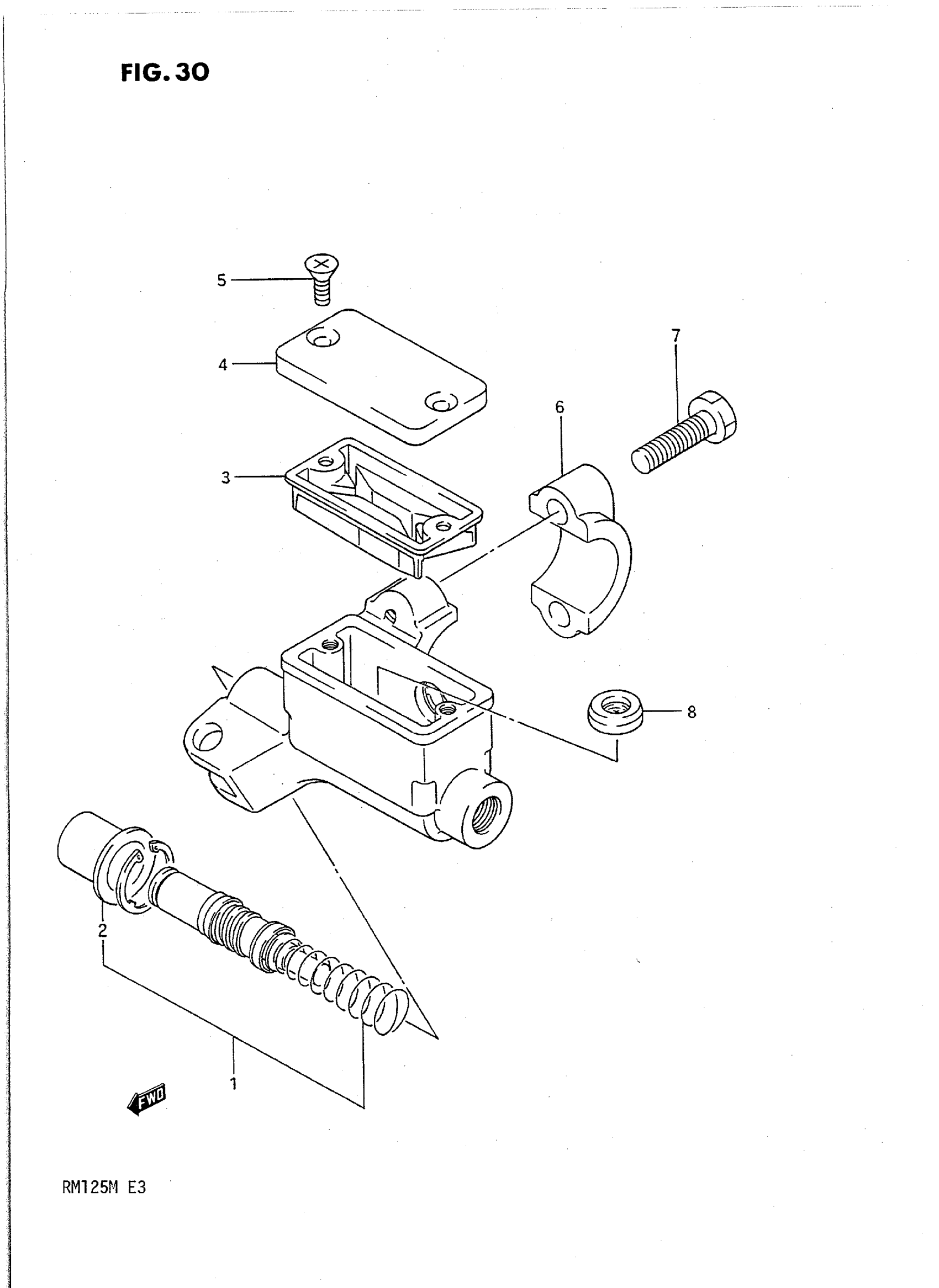

Suzuki RM125M (1991) FRONT MASTER CYLINDER Diagram

#

Description

Price

CYLINDER ASSY, FRONT MASTER | MODEL K/L This part replaces 59600-27C00.

59600-27C01

$292.48

CYLINDER ASSY, FRONT MASTER | MODEL M; Includes Item(s) 1 - 8

59600-27C01

$292.48

1

PISTON & CUP SET

59600-27820

$60.97

2

BOOT

59666-44300

$5.80

3

DIAPHRAGM

59667-14500

$10.12

4

CAP | MODEL K/L This part replaces 59669-27C00.

59669-27C01

$23.32

4

CAP | MODEL M

59669-27C01

$23.32

5

SCREW

69689-49300

$1.91

6

HOLDER

59671-27C00

$17.02

7

BOLT

59675-27C00

$3.54

8

SEPARATOR

59748-14500

$11.87
