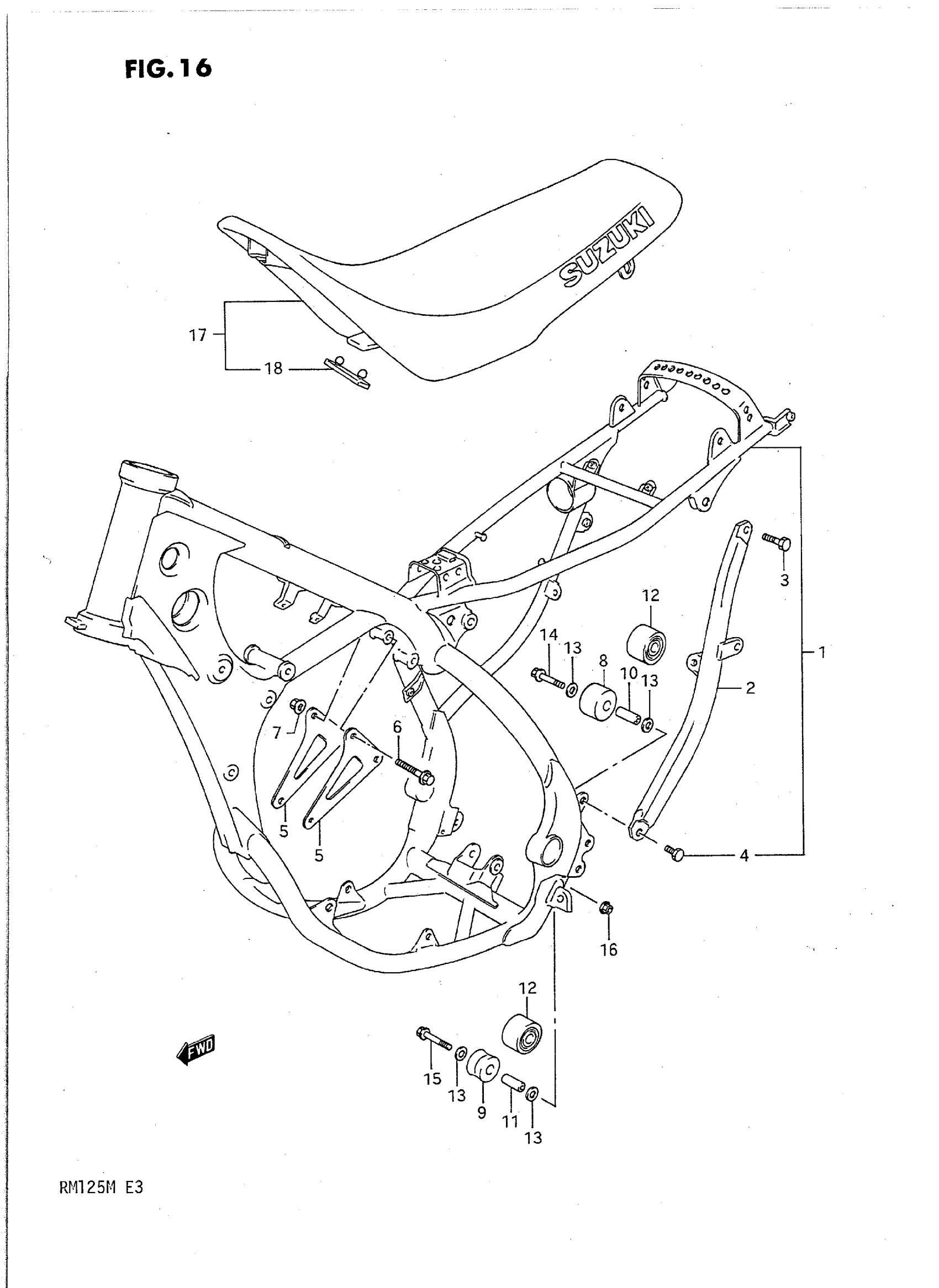

Suzuki RM125M (1991) FRAME - SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 41100-27840-19F.

41100-27841-19F

Unavailable

1

FRAME SET (BLUE) | MODEL L

41100-27850-19F

Unavailable

1

FRAME SET (YELLOW) | MODEL M; Includes Item(s) 2 - 4

41100-27860-1AZ

Unavailable

2

TUBE, FRAME SIDE | MODEL K

41670-27C00

Unavailable

2

TUBE, FRAME SIDE | MODEL L/M This part replaces 41670-27C10.

41670-43D00

Unavailable

3

BOLT, UPPER

09100-08274

$3.78

4

BOLT (8X16) This part replaces 09100-08267.

09100-08284

$3.87

5

PLATE, ENGINE MOUNTING UPPER

41993-27C01

Unavailable

6

BOLT | MODEL K This part replaces 01517-08407.

01550-08407

$3.42

6

BOLT | MODEL L/M

09103-08083

$3.70

7

NUT (CHROME) | MODEL K This part replaces 08316-16088.

08316-10087

$2.26

7

NUT | MODEL L/M

09159-08034

$1.62

8

ROLLER, CHAIN CONTROL UPPER | MODEL K

43911-01B10

$16.63

9

ROLLER, CHAIN CONTROL LOWER | MODEL K

43911-35B00

$19.98

10

SPACER (8.5X14X28) | MODEL K This part replaces 09180-08136.

09180-08206

$5.75

11

SPACER | MODEL K This part replaces 09180-08119.

09180-08156

$6.70

12

ROLLER, CHAIN CONTROL | MODEL L/M This part replaces 43910-27C10.

43910-27C11

$64.67

13

WASHER | MODEL K

08211-08221

$2.45

13

WASHER | MODEL L/M

08211-08121

$1.99

14

BOLT, UPPER

09103-08083

$3.70

15

BOLT, LOWER

09103-08043

$3.18

16

NUT, LOWER

08319-31087

$2.32

17

NO DESCRIPTION AVAILABLE | MODEL K/L This part replaces 45100-27C00-4UZ.

45100-27C01-4UZ

Unavailable

17

SEAT ASSY (BLUE) | MODEL M; Includes Item(s) 18

45100-27C10-E83

Unavailable

18

CUSHION

09321-08009

$3.05
