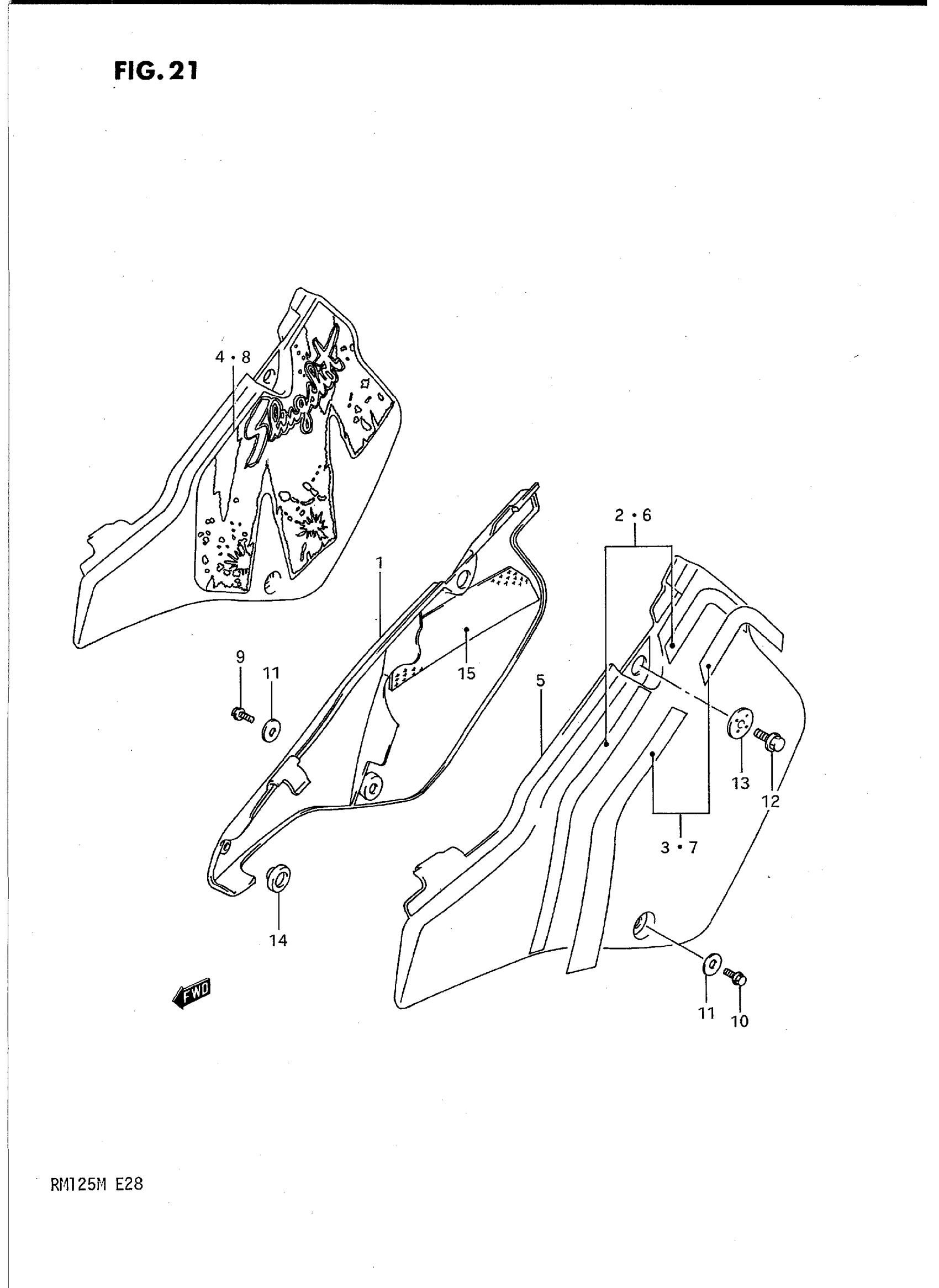

Suzuki RM125M (1991) FRAME COVER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K/L This part replaces 47111-27C00-25Y.

47111-27C02-25Y

Unavailable

1

COVER, FRAME RH (WHITE) | MODEL M This part replaces 47111-27C01-30H.

47111-27C02-30H

Unavailable

2

TAPE, RH (BLUE) | MODEL K This part replaces 68132-27C00-33N.

68132-27C10-34S

Unavailable

3

TAPE, RH (BLUE) | MODEL L

68132-27C10-34S

Unavailable

4

TAPE, RH (BLUE) | MODEL M

68132-27C30-0WN

Unavailable

5

COVER, FRAME LH (YELLOW) | MODEL K/L

47211-27C00-25Y

Unavailable

5

COVER, FRAME LH (WHITE) | MODEL M

47211-27C00-30H

Unavailable

6

EMBLEM, LH (BLUE) | MODEL K This part replaces 68142-27C00-33N.

68142-27C10-34S

Unavailable

7

TAPE, LH (BLUE) | MODEL L

68142-27C10-34S

Unavailable

8

TAPE, LH (BLUE) | MODEL M

68142-27C30-0WN

Unavailable

9

BOLT, FRONT

01547-06127

$1.65

10

BOLT, FRONT LH

01547-06167

$1.65

11

WASHER

09168-06027

$2.80

12

BOLT, REAR This part replaces 01107-08207.

01500-08207

$2.53

13

WASHER, REAR

09169-08045

$2.23

14

CUSHION, MUFFLER REAR | MODEL K

09321-10018

$5.45

14

CUSHION, MUFFLER REAR | MODEL L/M

09321-10024

$5.29

15

SHIELD,FRM CVR, | MODEL K/L This part replaces 47166-27C00.

47167-28C10

Unavailable

15

SHIELD,FRM CVR, | MODEL M This part replaces 47166-27C01.

47167-28C10

Unavailable
