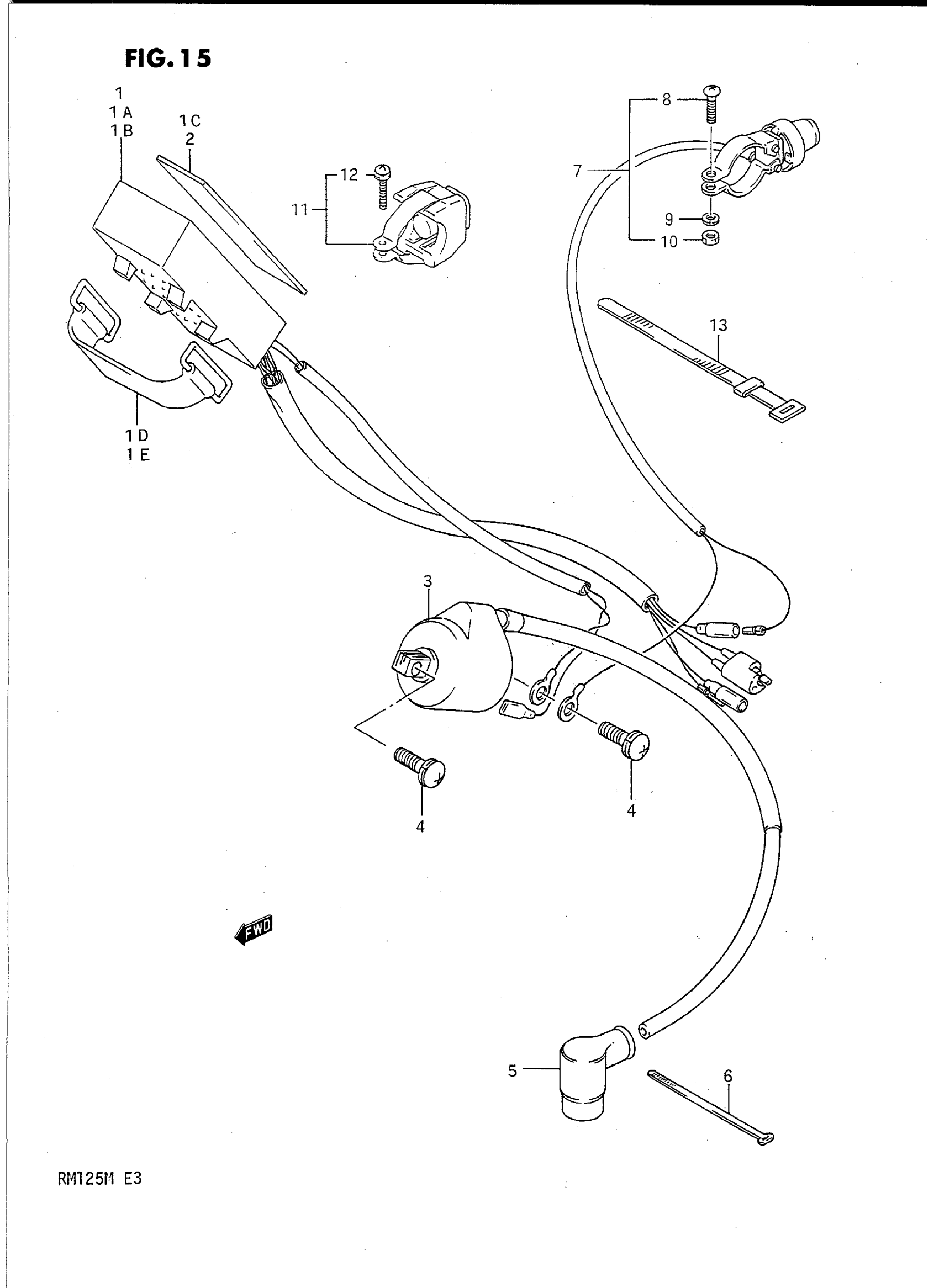

Suzuki RM125M (1991) ELECTRICAL Diagram

#

Description
Price

1

C.D.I. UNIT | MODEL K

32900-27C00

Unavailable

1A

C.D.I. UNIT | MODEL L This part replaces 32900-27C10.

32900-27C11

Unavailable

1B

C.D.I. UNIT | MODEL M

32900-27C11

Unavailable

1C

PROTECTOR | CUT AS REQUIRED PROFILE(30X50X3),MODEL L/M

33651-37000

$4.48

1D

BAND | MODEL L

09462-00001

$4.56

1E

BAND | MODEL M

32942-14111

$8.62

2

PROTECTOR | CUT AS REQUIRED PROFILE(40X85X3),MODEL K

33651-37000

$4.48

3

COIL ASSY, IGNITION | MODEL K/L This part replaces 33410-26C01.

33410-12C00

Unavailable

3

COIL ASSY, IGNITION | MODEL M This part replaces 33410-27C00.

33410-12C00

Unavailable

4

SCREW This part replaces 02112-36206.

02112-3620A

$2.06

5

CAP, SPARK PLUG This part replaces 33510-41111.

33510-20A02

$24.39

6

BELT

09407-09402

$2.45

7

SWITCH ASSY, ENGINE STOP | MODEL K; Includes Item(s) 8 - 10 This part replaces 37820-00B00.

37820-14X50

$48.54

8

SCREW This part replaces 02112-04167.

02112-0416A

$1.49

9

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.84

10

NUT This part replaces 08310-11047.

08310-00047

$2.23

11

SWITCH ASSY, ENGINE STOP | MODEL L/M; Includes Item(s) 12 This part replaces 37820-27C00.

37820-14X50

$48.54

12

SCREW

02112-33165

$1.49

13

CLAMP

09407-12402

$3.04
