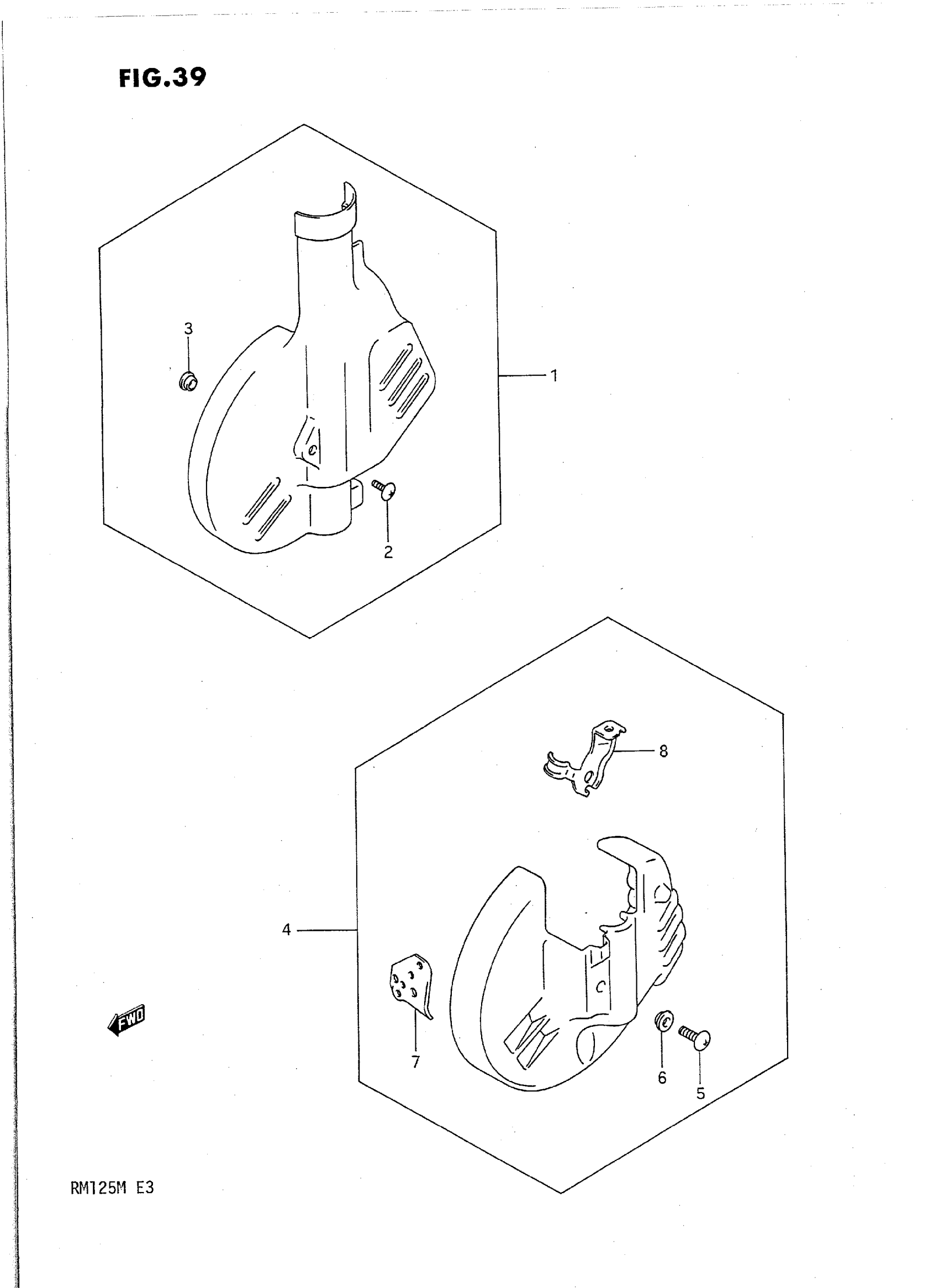

Suzuki RM125M (1991) DISC COVER (OPTIONAL) Diagram

#

Description

Price

1

COVER SET, FRONT DISC | MODEL K; Includes Item(s) 2 - 3

59200-27C00

Unavailable

2

SCREW (8X12) | MODEL K

09125-08006

Unavailable

3

WASHER | MODEL K

09169-08034

$2.36

4

COVER SET, FRONT DISC | MODEL L

59200-05D00

Unavailable

4

COVER SET, FRONT DISC | MODEL M; Includes Item(s) 5 - 8

59200-05D10

Unavailable

5

SCREW | MODEL L/M

02142-06127

$1.49

6

WASHER | MODEL L/M This part replaces 09169-06028.

09169-06041

$2.20

7

CLAMP | MODEL L

59248-05D00

Unavailable

7

CLAMP | MODEL M

59248-05D60

Unavailable

8

CLAMP | MODEL L

59270-05D00

Unavailable

8

CLAMP | MODEL M

59270-05D10

Unavailable
