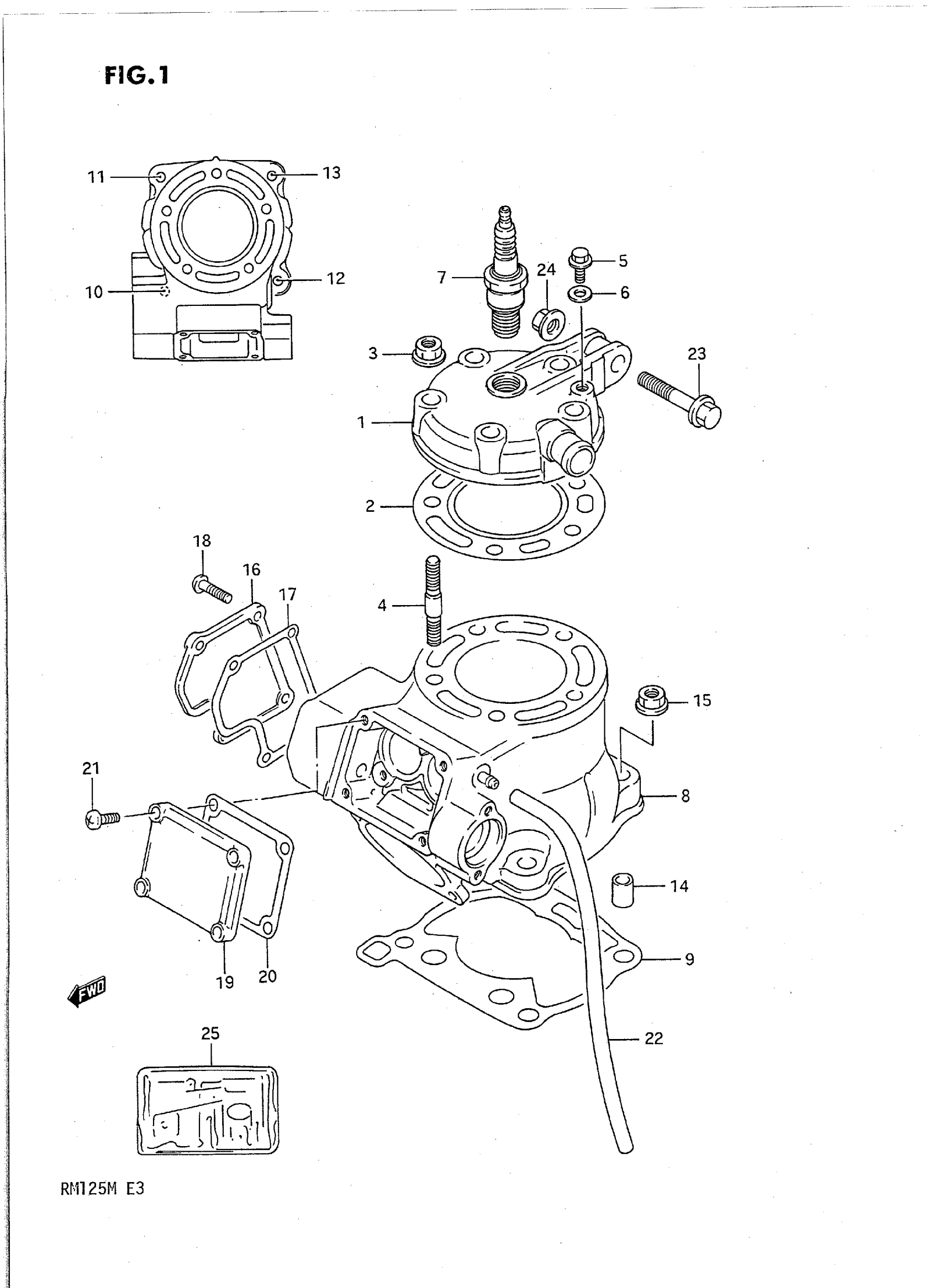

Suzuki RM125M (1991) CYLINDER (MODEL K) Diagram

#

Description
Price

1

HEAD, CYLINDER

11111-27C03

Unavailable

2

GASKET, CYLINDER HEAD

11141-27C00

$31.93

3

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

4

STUD BOLT (8X35)

09108-08198

$3.23

5

BOLT, AIR DUCT

09360-06007

$2.30

6

GASKET

09168-06004

$1.49

7

SPARK PLUG BR9E This part replaces 09482-00209.

09482-00349

$7.22

7

SPARK PLUG (ND,W27ES-ZU)

09482-00396-111

Unavailable

8

CYLINDER

11200-27810

Unavailable

9

GASKET, CYLINDER | ~E.NO.103568 This part replaces 11241-27C00.

11241-27C10

$15.78

9

GASKET, CYLINDER | E.NO.103569~ This part replaces 11241-27C01.

11241-27C10

$15.78

10

BOLT,STUD This part replaces 01421-08258.

01421-0825A

$2.03

11

STUD BOLT (8X30)

09108-08142

$3.18

12

STUD BOLT This part replaces 01421-08358.

01421-0835A

$2.29

13

STUD BOLT (8X40)

09108-08144

$3.20

14

PIN

04211-11149

$1.78

15

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

16

COVER, CYLINDER NO.1

11231-27C00

Unavailable

17

GASKET, CYLINDER COVER NO.1 This part replaces 11233-27C00.

11233-27C10

Unavailable

18

SCREW This part replaces 02112-05168.

02112-05167

$1.97

19

COVER, CYLINDER NO.2 This part replaces 11248-12C00.

11248-12C01

$33.93

20

GASKET, CYLINDER COVER NO.2

11238-01B30-H17

$4.03

21

SCREW This part replaces 02112-05168.

02112-05167

$1.97

22

HOSE 4X7X600 | L:600->250 This part replaces 09352-40703-600.

09352-40706-600

$5.11

23

BOLT This part replaces 01517-08408.

01550-08407

$3.42

24

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

25

GASKET SET | OPT,~E.NO.103568 This part replaces 11400-27870.

11400-27877

Unavailable

25

GASKET SET | OPT,E.NO.103569~ This part replaces 11400-27871.

11400-27877

Unavailable
