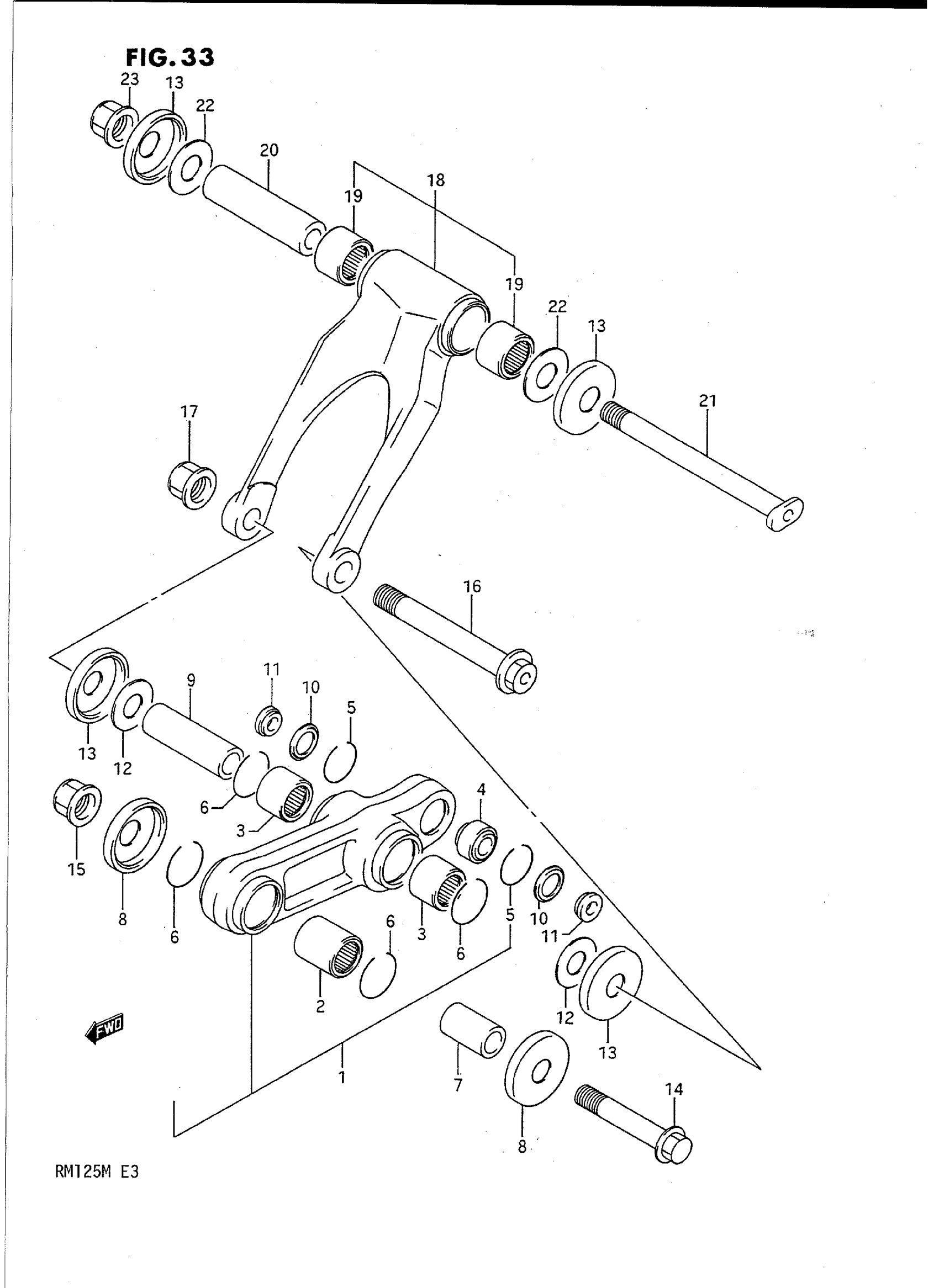

Suzuki RM125M (1991) CUSHION LEVER (MODEL K) Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 6

62600-27840

Unavailable

2

BEARING, FRONT

09263-20053

$27.58

3

BEARING, CENTER

09263-20063

Unavailable

4

BEARING, REAR

62175-00B00

$61.15

5

RING, STOPPER This part replaces 62277-14200.

62657-34A01

$1.99

6

RING, STOPPER, FR/CTR

09381-26002

$2.07

7

SPACER, LOWER This part replaces 62317-00B20.

62317-27C10

$16.76

8

SEAL, DUST This part replaces 62162-28C00.

62162-28E01

$10.69

9

SPACER, CENTER This part replaces 62646-00B20.

62626-05D00

Unavailable

10

DUST SEAL, REAR | ->09285-17001

62226-27C00

Unavailable

10

.SEAL,OIL (17X24X3) | FOR 62684-27C10 This part replaces 09285-17001.

09285-17007

$3.76

11

SPACER, REAR | ->62684-27C10W/09285-17001

62684-27C00

Unavailable

11

SPACER, REAR

62684-27C10

Unavailable

12

WASHER, CENTER

08211-14322

$3.72

13

SEAL This part replaces 62683-27C00.

62683-27C01

Unavailable

14

BOLT, FRONT

62658-00B20

$11.47

15

NUT This part replaces 08319-31128.

08319-3112A

$3.76

16

SHAFT This part replaces 62621-27C00.

62621-01B00

Unavailable

17

NUT This part replaces 08319-31148.

08319-3114A

$9.66

18

ROD SET, CUSHION LEVER | Includes Item(s) 19 This part replaces 62600-27850.

62600-05870

Unavailable

19

BEARING

09263-20063

Unavailable

20

SPACER, RED

62646-27C00

Unavailable

21

BOLT

62622-27C00

Unavailable

22

WASHER

08211-14322

$3.72

23

NUT This part replaces 08319-31148.

08319-3114A

$9.66
