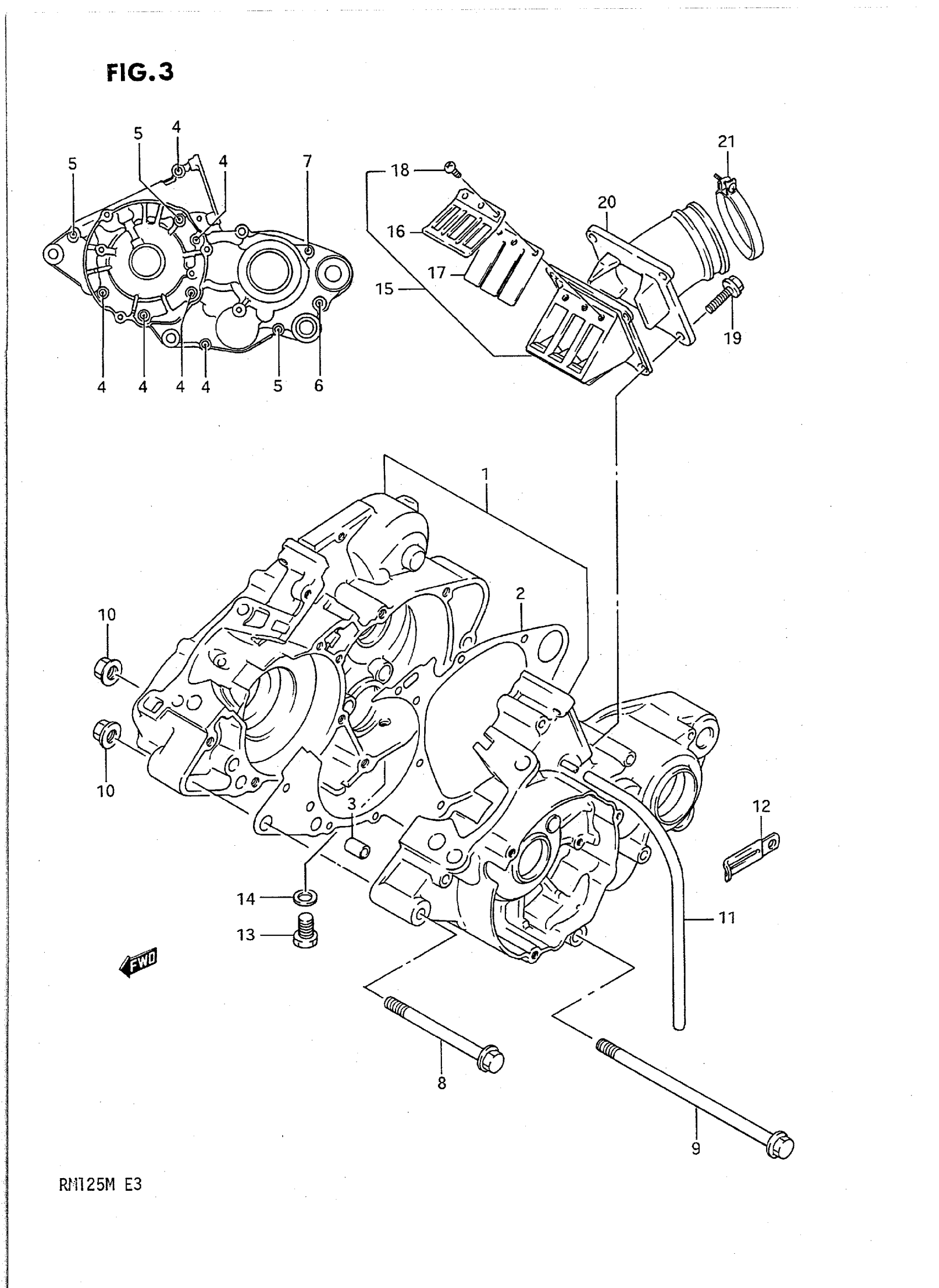

Suzuki RM125M (1991) CRANKCASE (MODEL K) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 11300-27870.

11300-27874

Unavailable

2

GASKET, CRANKCASE This part replaces 11481-27C00.

11481-27C01

Unavailable

3

PIN

04211-09129

$1.65

4

BOLT

01547-06457

$2.32

5

BOLT

01547-06557

$2.32

6

BOLT

01547-06607

$3.18

7

BOLT

01547-06657

$2.75

8

BOLT This part replaces 09103-08072.

09103-08363

$9.00

9

BOLT (8X150)

09103-08113

Unavailable

10

NUT

09159-08067

$5.57

11

HOSE 4X7X600 | L:600->250 This part replaces 09352-40703-600.

09352-40706-600

$5.11

12

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

13

PLUG, DRAIN This part replaces 01107-08167.

01500-0816B

$2.50

14

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

15

VALVE ASSY, REED | Includes Item(s) 16 - 18

13150-27C01

Unavailable

16

STOPPER, REED VALVE

13152-27C01

Unavailable

17

VALVE, REED

13153-27C00

Unavailable

18

SCREW This part replaces 02112-33088.

02112-3308A

$2.23

19

BOLT

01547-06207

$2.01

20

PIPE, INTAKE

13110-27C00

Unavailable

21

CLAMP

09402-50306

$4.77
