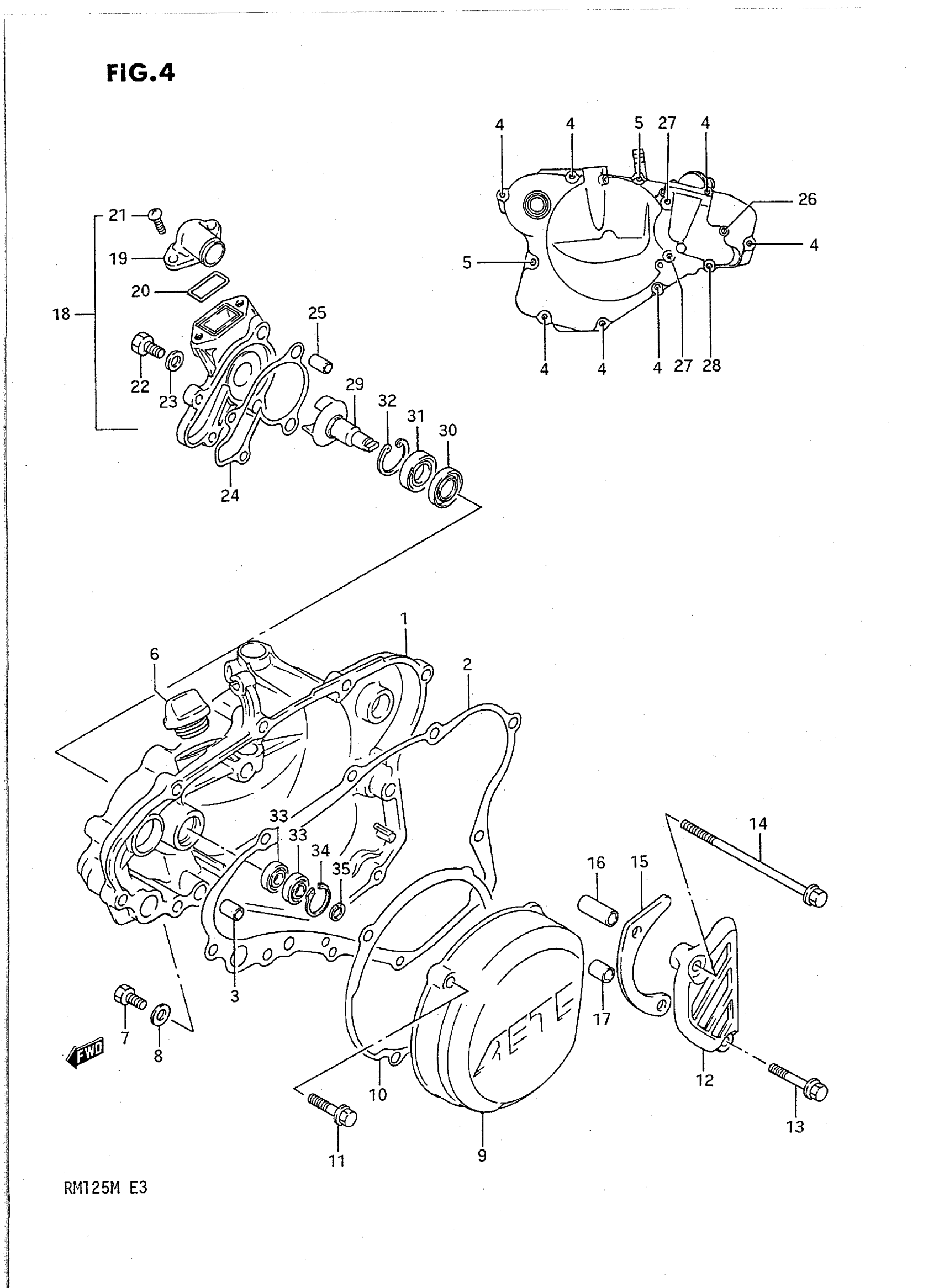

Suzuki RM125M (1991) CRANKCASE COVER- WATER PUMP (MODEL K) Diagram

#

Description
Price

1

COVER, CLUTCH

11341-27C00

Unavailable

2

.GASKET, CLUTCH COVER This part replaces 11482-27C00.

11482-27C02

$13.88

3

PIN

04211-09129

$1.65

4

BOLT

01547-06257

$2.03

5

BOLT

01547-06357

$2.03

6

PLUG SET This part replaces 09200-20810.

09200-20811

$4.02

7

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

8

GASKET

09168-06004

$1.49

9

COVER, MAGNETO

11351-27C00

Unavailable

10

GASKET, MAGNETO COVER

11483-27C00

Unavailable

11

BOLT

01547-06257

$2.03

12

COVER, ENGINE SPROCKET This part replaces 11360-27C00.

11360-28E00

$32.00

13

BOLT

01547-06407

$2.32

14

BOLT (6X105)

09103-06126

$3.78

15

PLATE, CHAIN GUIDE

27641-27C00

Unavailable

16

SPACER (6.5X10.5X25)

09180-06203

$2.71

17

SPACER (6.5X10.5X12)

09180-06221

Unavailable

18

CASE, WATER PUMP | Includes Item(s) 19 - 23

17410-27C00

Unavailable

19

CONNECTOR This part replaces 17412-27C00.

17412-28E00

Unavailable

20

O RING

17414-14300

$2.99

21

SCREW

02112-06167

$1.49

22

BOLT, DRAIN This part replaces 17415-00B00.

17415-43D00

$4.35

23

GASKET This part replaces 17413-00B00.

17413-28C10

$2.14

24

GASKET, WATER PUMP CASE This part replaces 17431-01B01-H17.

17431-01B02-H17

$6.23

25

PIN

04211-09129

$1.65

26

BOLT

01547-06207

$2.01

27

BOLT

01547-06307

$2.03

28

BOLT

01547-06857

$3.30

29

IMPELLER,WATER This part replaces 17491-01B11.

17491-01B12

Unavailable

30

OIL SEAL, INNER (12X24X3.6)

09282-12006

Unavailable

31

OIL SEAL, OUTER (12X24X6.4)

09289-12004

Unavailable

32

CIRCLIP

08331-41249

$2.26

33

BEARING (8X19X6)

08113-06980

$12.67

34

CIRCLIP

09381-19003

$2.11

35

CIRCLIP This part replaces 08331-31086.

08331-31089

$1.78
