2008 Suzuki RM125 Rear Swinging ARM Diagram

← All diagrams

Find the part on the Rear Swinging ARM diagram for your 2008 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

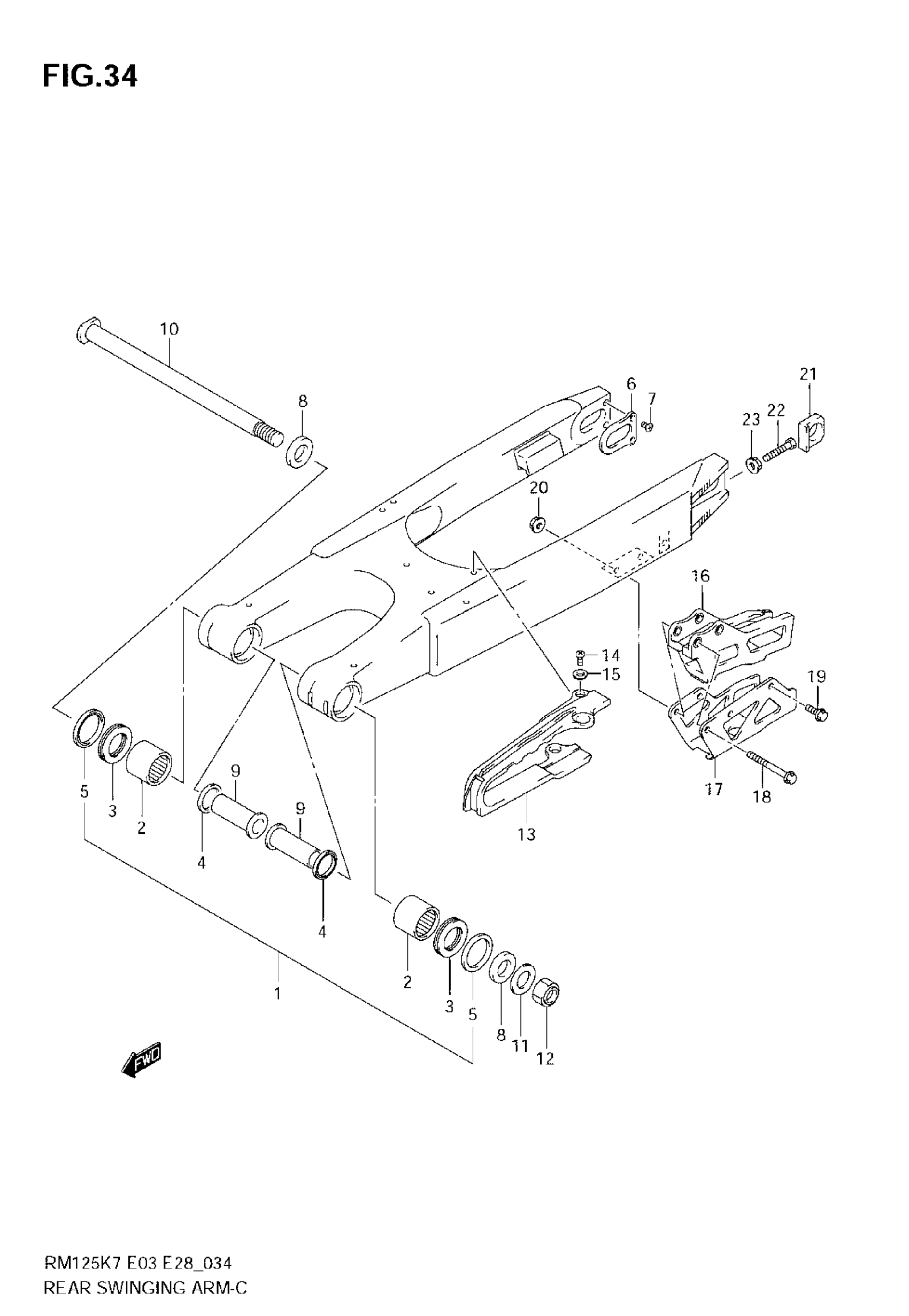

2008 Suzuki RM125 Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGINGARM ASS | Includes Item(s) 2 - 7 This part replaces 61000-37F50.

61000-37F51

1
Out of stock

2

BEARING, PIVOT (22X29X30)

09263-22017

2
Out of stock

3

2

$30.12

In stock

5

2

$7.11

In stock

6

PLATE, PR SWINGINGARM, REAR

61128-37E20

2
Out of stock

7

SCREW (4X10)

02122-0410B

4
Out of stock

8

SPACER, PIVOT OUTER

61251-36E01

2
Out of stock

9

SPACER, PIVOT INNER

61252-37F01

2
Out of stock

10

SHAFT, PIVOT

61211-28C00

1
Out of stock

11

WASHER

08322-0116B

1

$2.95

In stock

12

NUT

09159-16007

1
Out of stock

13

BUFFER, CHAIN TOUCH DEFENSE

61273-37F20

1
Out of stock

14

SCREW

02112-0508B

3
Out of stock

15

WASHER

09169-05022

3

$3.45

In stock

16

GUIDE, CHAIN

61341-35G00

1

$47.90

In stock

17

PLATE, GUIDE OUTER

61342-37F00

1

$72.75

In stock

18

BOLT, UPPER

09103-06242

2
Out of stock

19

BOLT, REAR

09103-06233

1
Out of stock

20

NUT

08316-1006B

2
Out of stock

21

WASHER, CHAIN ADJUSTER

61445-37F10

2
Out of stock

22

BOLT (8X50)

09100-08287

2
Out of stock

23

NUT

09159-08034

2

$1.73

In stock
