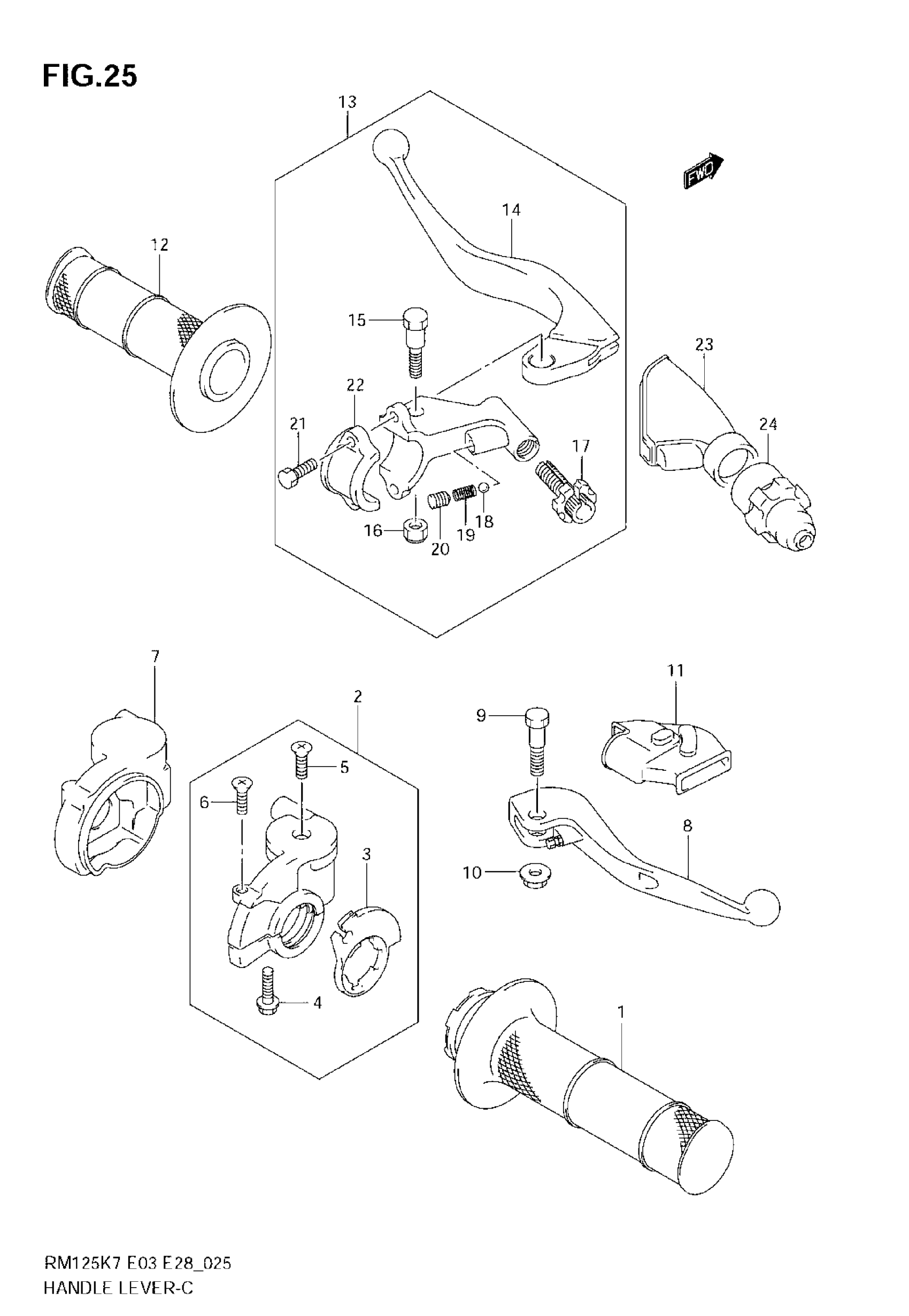

Suzuki RM125 (2008) HANDLE LEVER Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-36E01

$43.92

2

CASE ASSY, THROTTLE | Includes Item(s) 3 - 6

57100-28E01

$154.93

3

ROTOR

57114-28E00

$12.82

4

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.50

5

SCREW

02122-0410A

$1.25

6

SCREW

02122-0416A

$2.50

7

COVER, THROTTLE CASE

57129-28E01

$23.50

8

LEVER, BRAKE

57310-37F00

$33.47

9

BOLT, BRAKE LEVER

57431-14500

$6.01

10

NUT

08316-1006A

$2.25

11

COVER, BRAKE

57343-35G00

$21.48

12

GRIP,L This part replaces 57211-36E01.

57211-28H00

$23.02

13

LEVER ASSY, CLUTCH | Includes Item(s) 14 - 22

57500-37F11

$167.17

14

LEVER, CLUTCH

57621-28C40

$23.02

15

..BOLT,LEVER PIVOT

57431-21D11

$9.34

16

NUT

08319-2106A

$1.97

17

ADJUSTER, CABLE

57441-37F00

$153.90

18

BALL

06111-06003

$1.28

19

SPRING

09440-04003

$1.52

20

SCREW

09134-06009

$2.58

21

BOLT

09103-06234

$2.17

22

BRACKET, HOLDER

57512-37F00

$32.55

23

COVER,CLUTCH LE This part replaces 57341-37F00.

57341-37F01

$21.23

24

COVER,CLUTCH ADJUSTER This part replaces 57342-37F00.

57342-37F01

$8.63
