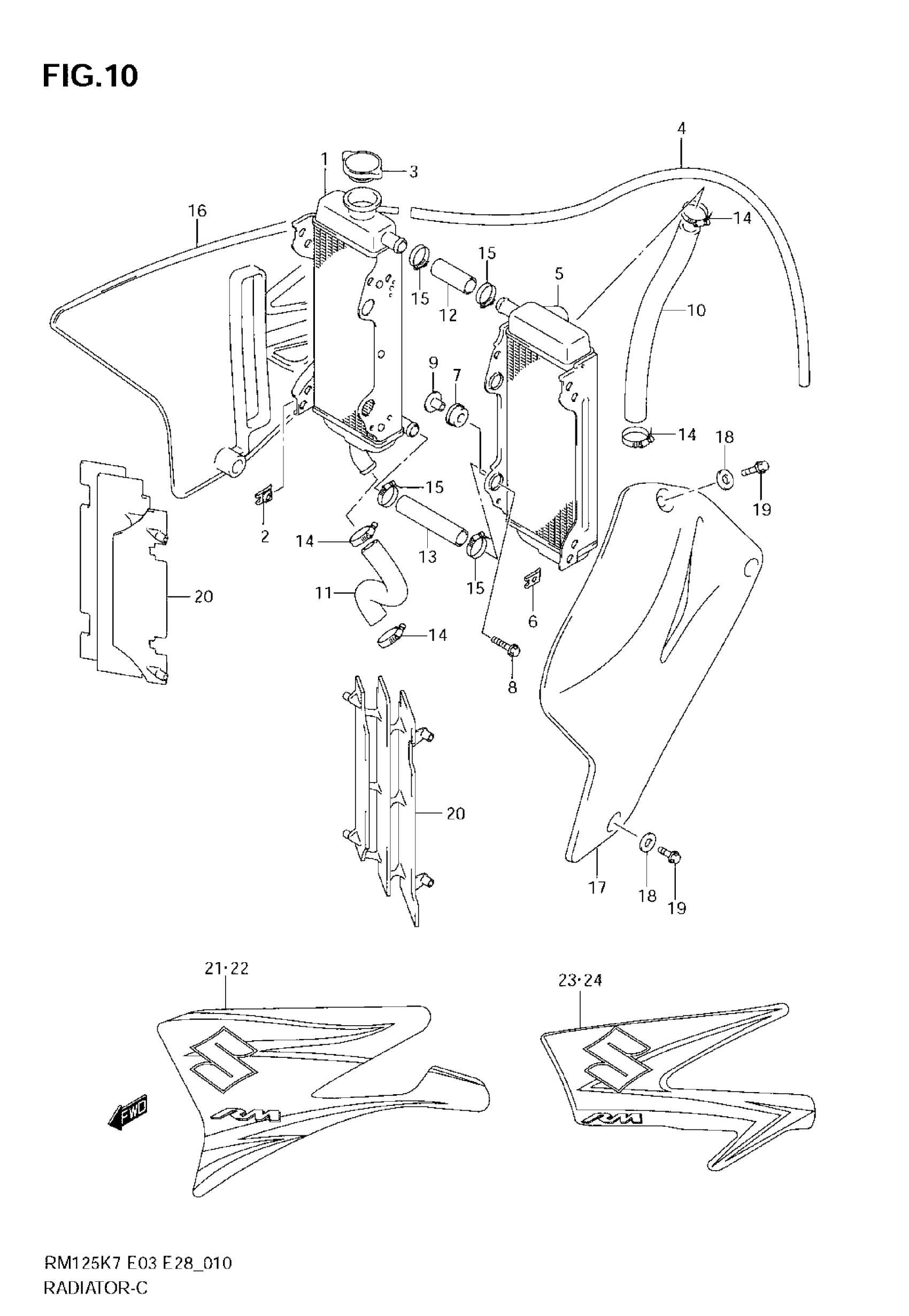

Suzuki RM125 (2008) RADIATOR Diagram

#

Description
Price

1

RADIATOR, RH | Includes Item(s) 2

17710-36F11

Unavailable

2

NUT

09148-06015

$3.04

3

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

$42.50

4

HOSE (5X8X2000) | L:1000!650 This part replaces 09351-50803-00A.

09351-50803-00B

$9.10

5

RADIATOR, LH | Includes Item(s) 6

17720-36F11

Unavailable

6

NUT

09148-06015

$3.04

7

CUSHION, SUPPORT

17787-19A00

$3.56

8

BOLT

09116-06186

$2.61

9

SPACER

09180-06243

$5.46

10

HOSE, INLET

17851-36F00

$26.62

11

HOSE, OUTLET

17852-36F00

$20.10

12

HOSE, JOINT NO.1

17853-36F00

$5.83

13

HOSE, JOINT NO.2

17853-29E00

$16.32

14

CLAMP

09402-28513

$6.88

15

CLAMP

09402-22512

$8.62

16

COVER, RADIATOR RH (YELLOW)

17761-37F10-YU1

$63.97

17

COVER, RADIATOR LH (YELLOW)

17762-37F10-YU1

$51.57

18

WASHER This part replaces 69232-37F00.

69232-37F01

$7.72

19

BOLT

09103-06233

$2.11

20

LOUVER, RADIATOR

17831-37E11

$19.07

21

TAPE, RADIATOR COVER RH | MODEL K7

68660-37F60-DRA

Unavailable

22

TAPE, RADIATOR COVER LH | MODEL K7

68670-37F60-DRA

Unavailable

23

TAPE, RADIATOR COVER RH | MODEL K8

68660-37F70-EMA

Unavailable

24

TAPE, RADIATOR COVER LH | MODEL K8

68670-37F70-EMA

Unavailable
