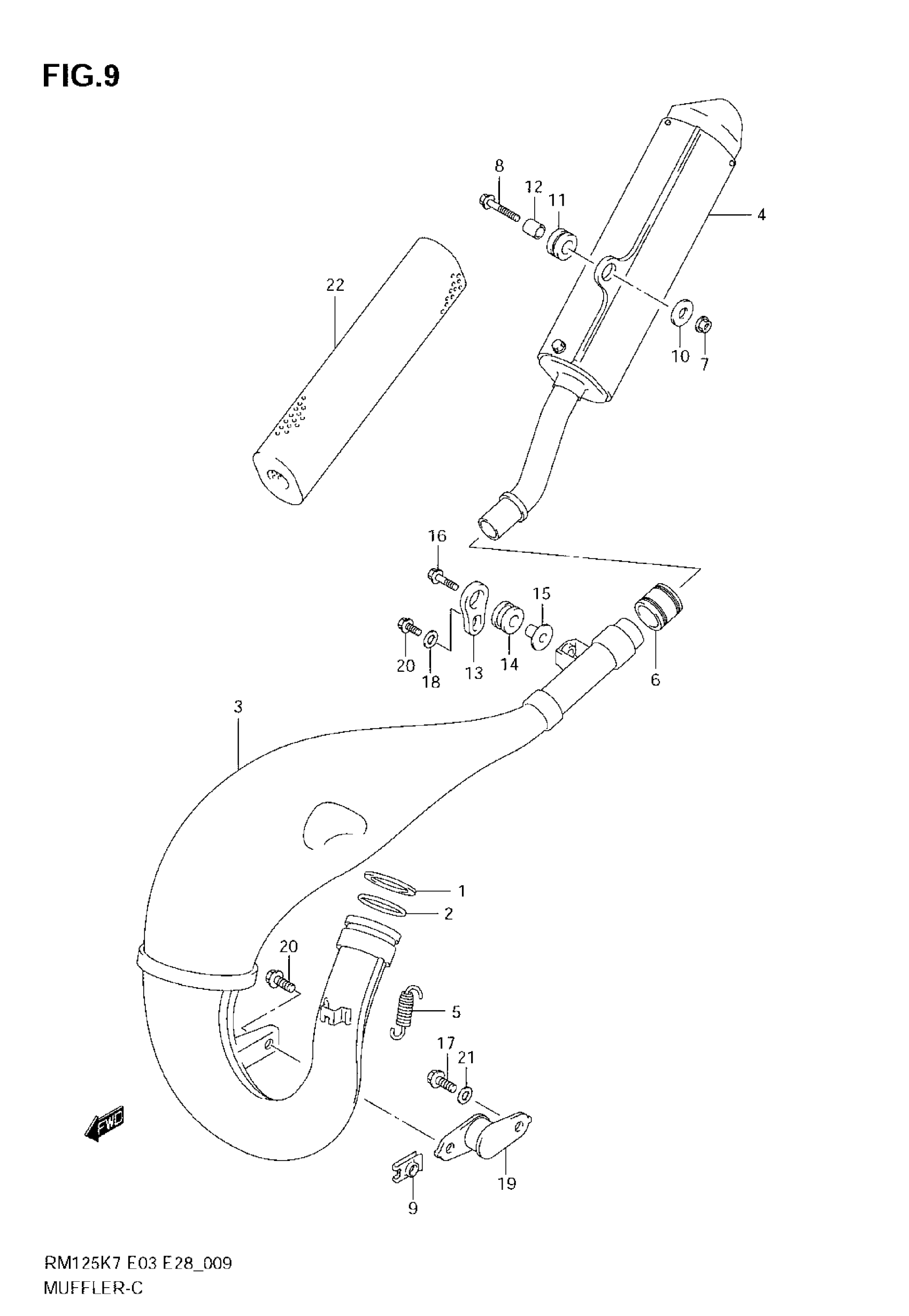

Suzuki RM125 (2008) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

14172-36E00

$2.92

2

O RING, EXHAUST PIPE

14171-36E00

$23.60

3

MUFFLER, 1ST

14310-36F40

Unavailable

4

MUFFLER, 2ND

14330-36F01

Unavailable

5

SPRING

09443-11027

$7.31

6

CONNECTOR, 2ND MUFFLER

14771-43D11

$87.67

7

NUT

08319-3106A

$2.03

8

BOLT

09103-06251

$2.35

9

NUT

09148-06021

$3.56

10

WASHER (6.5X24X1.2)

09160-06114

$2.03

11

CUSHION This part replaces 09320-11015.

09320-11008

$2.60

12

SPACER

09180-06120

$2.32

13

PLATE, MOUNTING

14761-27C00

$8.76

14

CUSHION (8.7X26X14) This part replaces 14762-01B01.

14762-01B02

$3.74

15

SPACER

14763-36E00

$8.13

16

BOLT

09116-06186

$2.61

17

BOLT

09103-06234

$2.35

18

WASHER

09160-06084

$1.78

19

DAMPER,MUFFLER This part replaces 14770-37F00.

14770-37F01

$21.84

20

BOLT

09103-06233

$2.11

21

WASHER

09160-06084

$1.78

22

SILENCER, MUFFLER | OPT E3

14351-36F00

Unavailable

22

SILENCER, MUFFLER | OPT E28

14351-36F10

Unavailable
