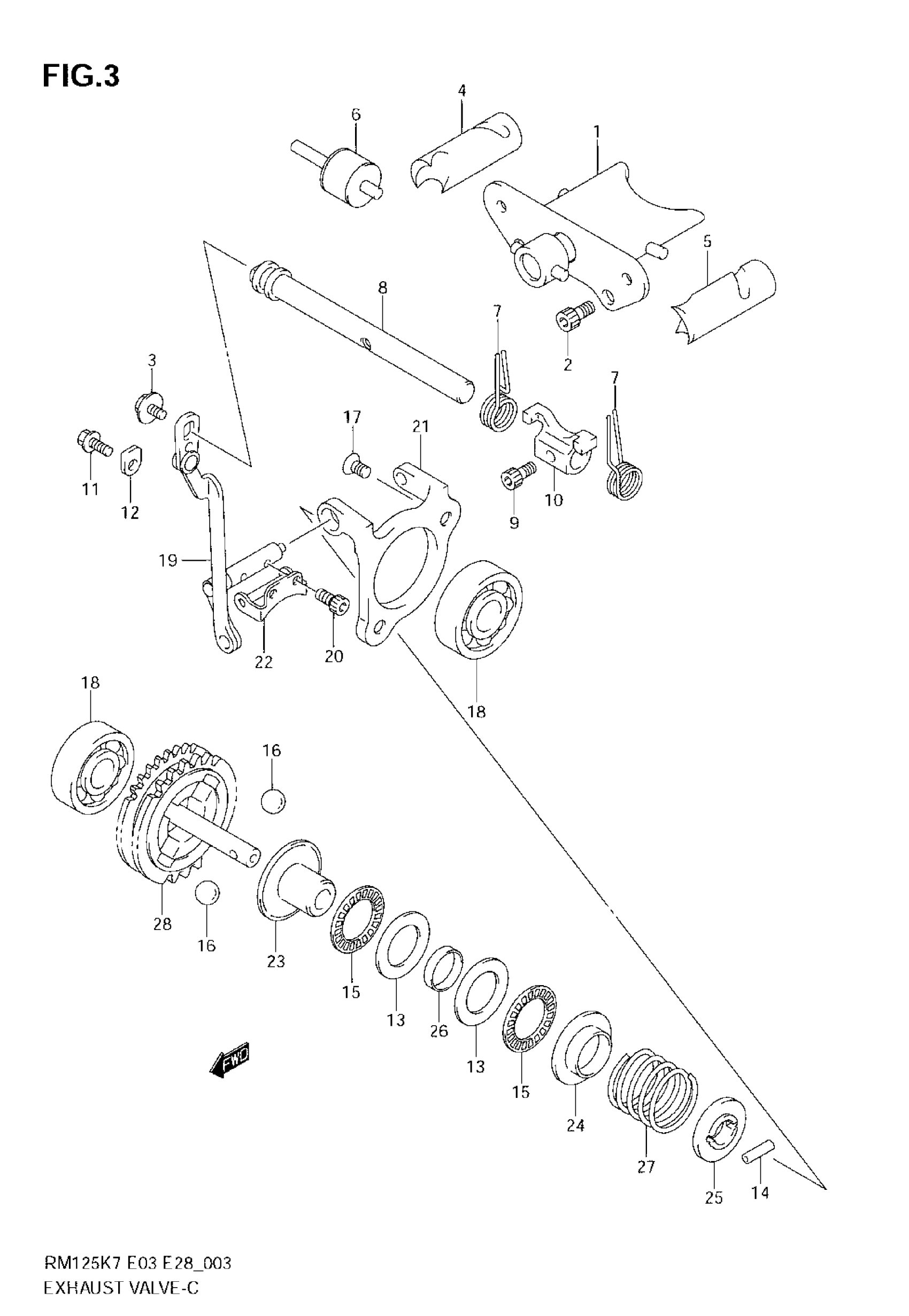

Suzuki RM125 (2008) EXHAUST VALVE Diagram

#

Description
Price

1

VALVE ASSY, EXHAUST MAIN

11250-36F40

$367.86

2

BOLT, EXHAUST VALVE PLATE

07130-0512B

$2.50

3

BOLT, EXHAUST VALVE

09103-05022

$1.86

4

VALVE, EXHAUST SIDE, R

11255-36F40

$89.50

5

VALVE, EXHAUST SIDE, L

11256-36F40

$89.50

6

SHAFT, EXHAUST SIDE VALVE

11260-36F30

$20.13

7

SPRING, EXHAUST VALVE

11257-36F11

$7.57

8

SHAFT, EXHAUST VALVE

11259-36F30

Unavailable

9

BOLT, EXHAUST VALVE SHAFT

09106-04003

$2.07

10

ARM, EXHAUST VALVE SHAFT

11264-36F30

$74.52

11

BOLT, EXHAUST VALVE SHAFT STOP

09103-06256

$2.28

12

RETAINER, EXHAUST VALVE SHAFT STOP

24741-21A00

$2.81

13

WASHER, GOVERNOR THRUST

09181-15223

$2.53

14

PIN, GOVERNOR SHAFT

09261-03017

$2.45

15

BEARING, GOVERNOR THRUST

09263-15003

$8.29

16

BALL, GOVERNOR

06111-12004

$1.93

17

SCREW, ACTUATOR BASE

09120-05003

$1.91

18

BEARING, GOVERNOR SHAFT

09262-08005

$12.67

19

ACTUATOR, EXHAUST

12689-36F30

Unavailable

20

BOLT, ACTUATOR ARM

09106-04003

$2.07

21

BASE, ACTUATOR

12681-03B00

$159.76

22

ARM, ACTUATOR

12682-36F21

$9.55

23

GOVERNOR, DRIVEN

12672-36F10

$38.55

24

STOPPER, GOVERNOR SPRING

12674-36F10

$28.27

25

STOPPER, GOVERNOR SPRING

12675-36F11

$21.03

26

SPACER, GOVERNOR

12676-36F10

$17.70

27

SPRING, GOVERNOR

12677-36F40

Unavailable

28

GOVERNOR SET, EXHAUST

12670-36830

$103.03
