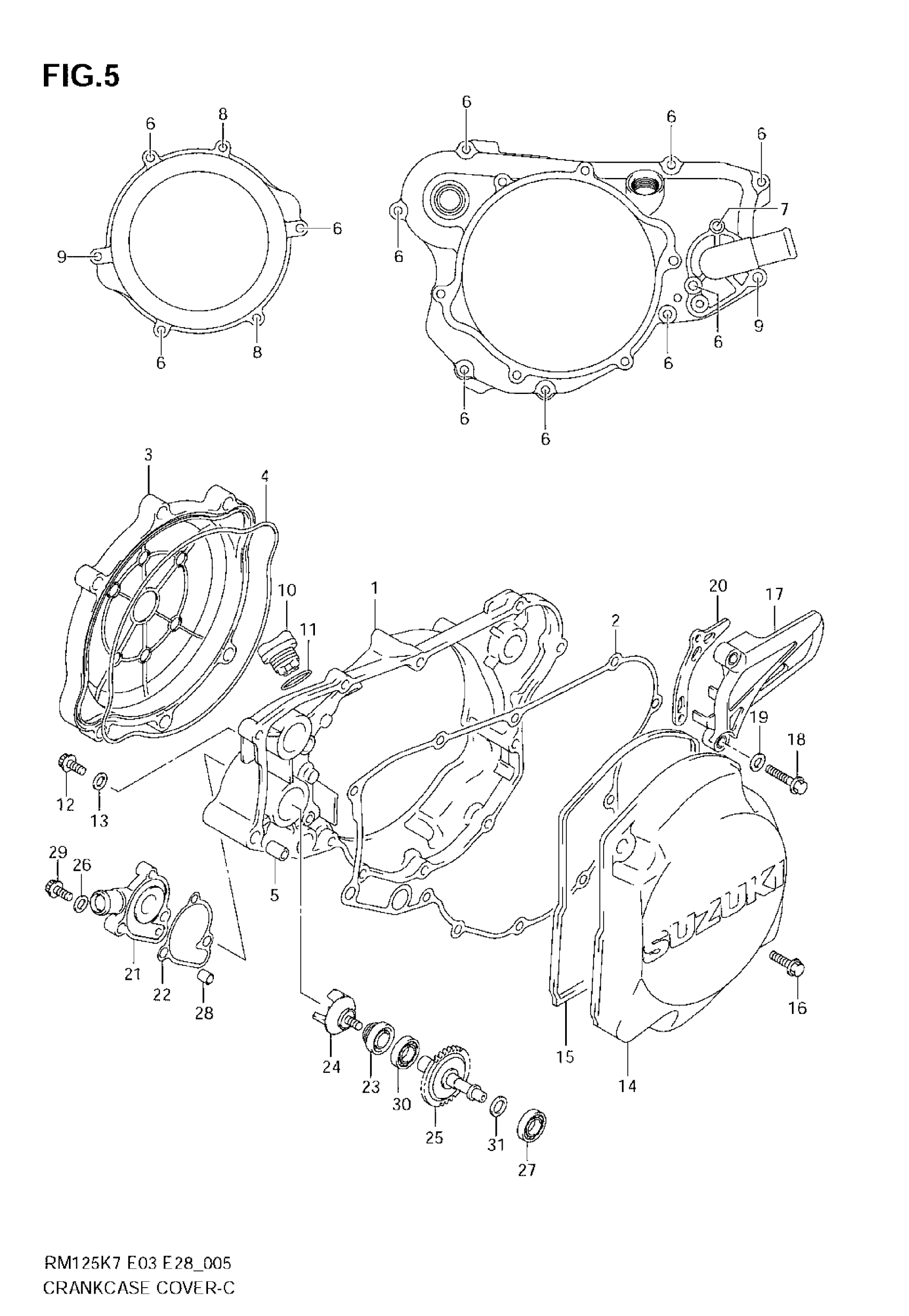

Suzuki RM125 (2008) CRANKCASE COVER-WATER PUMP Diagram

#

Description
Price

1

COVER, CLUTCH

11341-36F00

$239.92

2

GASKET, CLUTCH COVER

11482-36F00

$18.42

3

COVER, CLUTCH OUTER

11371-36F01

$203.93

4

O RING, CLUTCH OUTER COVER

11484-36E10

$21.60

5

PIN

04211-09109

$1.65

6

BOLT (L:25)

09103-06250

$2.23

7

BOLT (L:30)

09103-06251

$2.35

8

BOLT (L:65)

09103-06245

$3.65

9

BOLT (L:70)

09103-06254

$3.30

10

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

11

O RING

09280-17003

$1.65

12

BOLT, OIL LEVEL

07120-0610B

$2.45

13

GASKET

09168-06004

$1.49

14

COVER, MAGNETO

11351-36F00

$198.45

15

GASKET, MAGNETO COVER

11483-36E11

$9.33

16

BOLT This part replaces 09103-06235.

01547-06207

$2.01

17

COVER, SPROCKET

11360-36E00

$30.44

18

BOLT

09103-06251

$2.35

19

WASHER

08322-0106B

$2.26

20

PLATE, CHAIN GUIDE

27641-37E00

$10.28

21

CASE, WATER PUMP

17411-36F00

$87.70

22

GASKET, WATER PUMP CASE

17431-36F00

$6.70

23

SEAL, WATER PUMP OIL

17461-37F00

$7.69

24

IMPELLER, WATER PUMP

17491-36F00

$27.23

25

SHAFT, WATER PUMP

17510-36F10

$89.43

26

GASKET, WATER PUMP DRAIN

09168-06004

$1.49

27

BEARING, WATER PUMP LH | 8X22X7

09262-08005

$12.67

28

PIN, WATER PUMP CASE

04211-09109

$1.65

29

BOLT, WATER PUMP DRAIN

07120-0610B

$2.45

30

BEARING, WATER PUMP RH

08113-69010

$23.28

31

WASHER

08211-06121

$1.54
