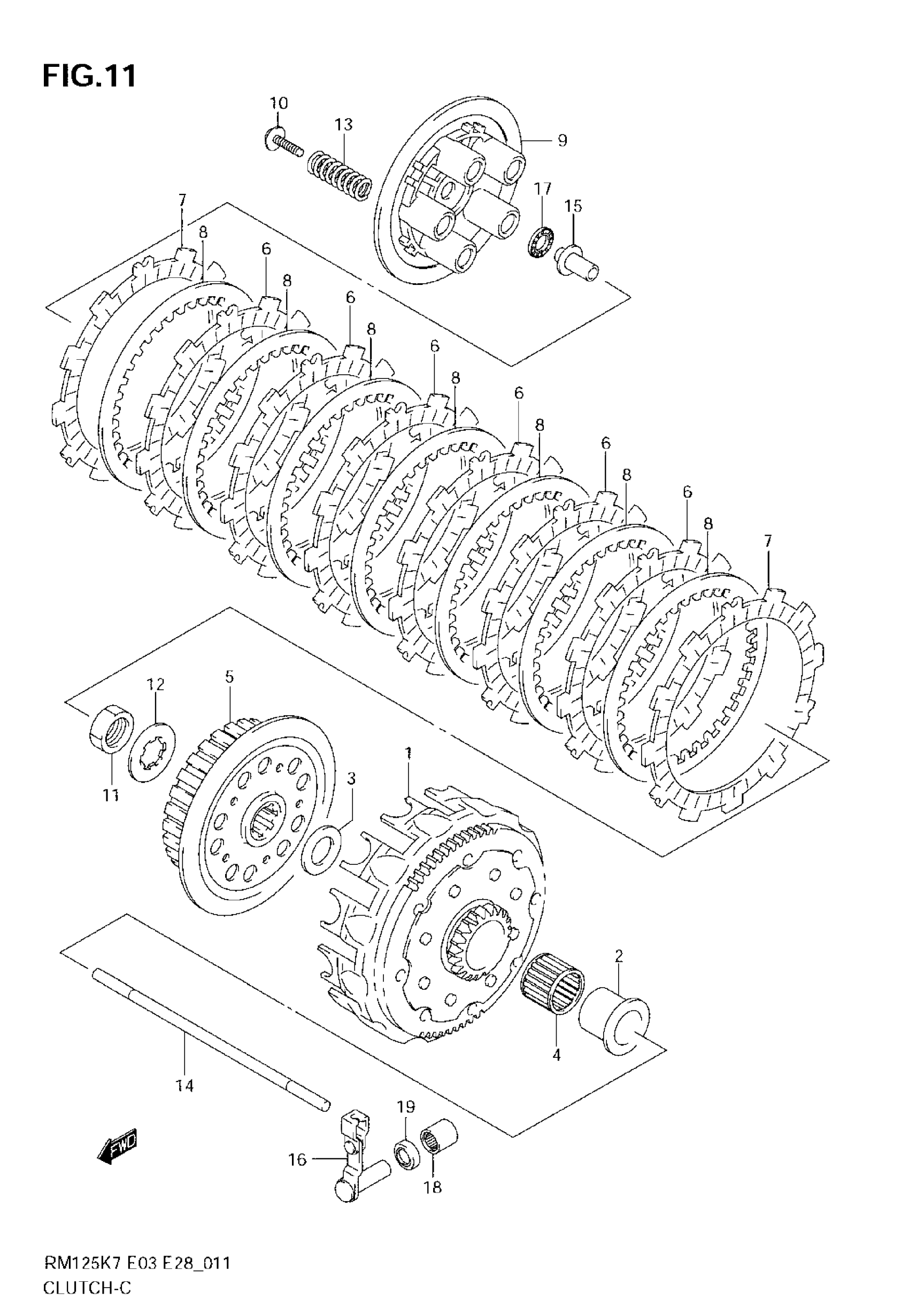

Suzuki RM125 (2008) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:64/18

21200-36F00

$344.30

2

SPACER

21251-43D00

$35.74

3

WASHER

08211-20363

$3.18

4

BEARING (25X30X22)

09263-25046

$25.92

5

HUB, CLUTCH SLEEVE

21411-43D04

$104.18

6

PLATE, CLUTCH DRIVE

21441-36F00

$21.16

7

PLATE, CLUTCH DRIVE

21441-36F10

$21.05

8

PLATE, CLUTCH DRIVEN | T:1.4

21451-43D00

$10.00

9

DISC, CLUTCH PRESSURE

21462-43D01

$40.76

10

BOLT (5X18)

09116-05019

$2.32

11

NUT

09140-20001

$3.37

12

LOCK WASHER This part replaces 09167-20006.

09167-20009

$2.03

13

SPRING

09440-18030

$6.51

14

ROD, CLUTCH PUSH

23110-36F00

$18.53

15

PIECE,CLUTCH PUSH

23121-37F00

$20.21

16

CAMSHAFT, CLUTCH RELEASE

23200-36E11

$59.53

17

BEARING (10.1X22X2.8)

09263-10002

$10.19

18

BEARING (10X14X15)

09263-10007

$18.64

19

SEAL (10X17X5.0)

09285-10004

$3.37
