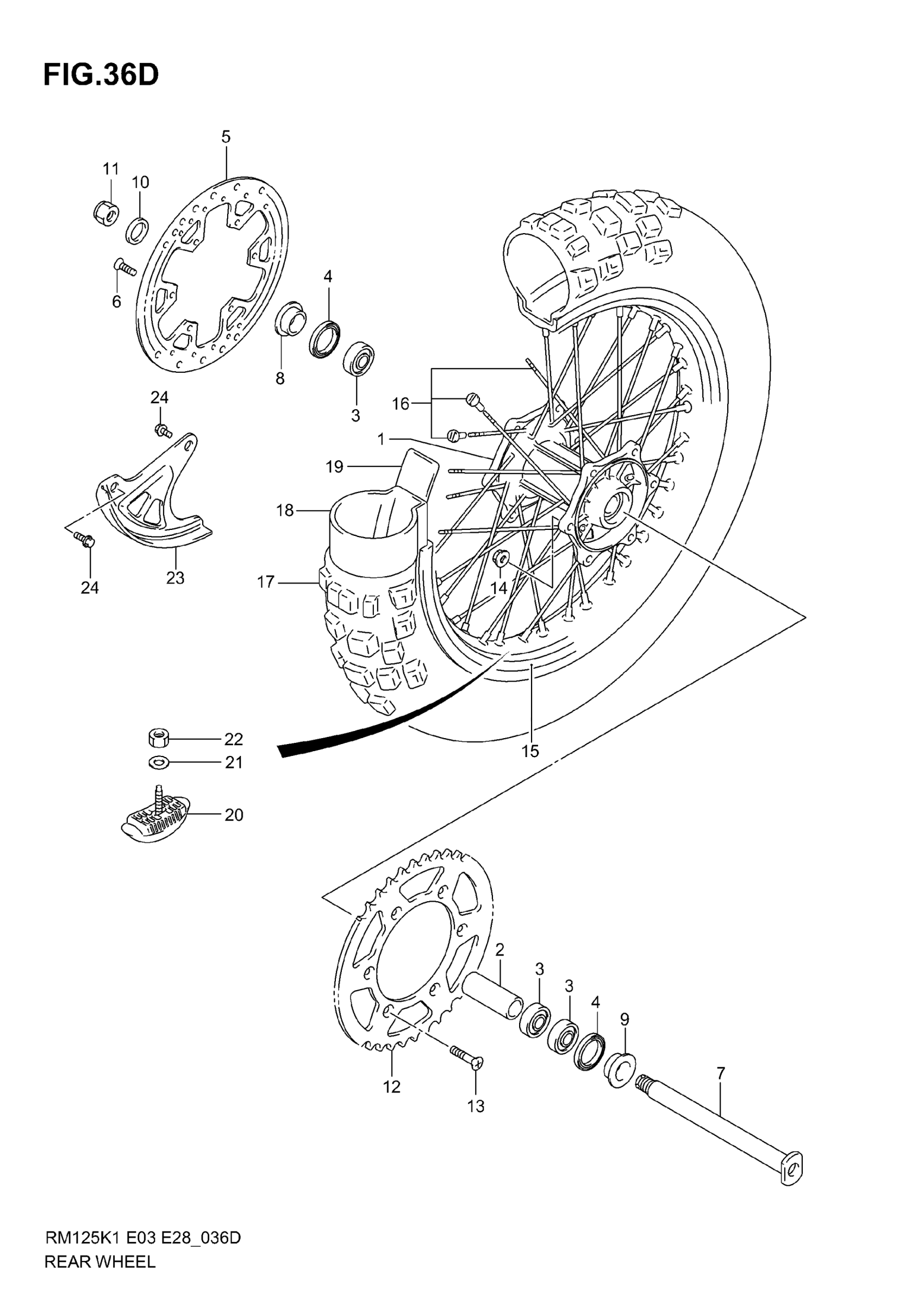

Suzuki RM125 (2006) REAR WHEEL (MODEL K6) Diagram

#

Description
Price

1

HUB, REAR WHEEL

64111-36E00

$463.55

2

SPACER, BEARING (22.5X30X102)

64731-36E00

$39.37

3

BEARING (22X44X12)

09262-22033

$31.73

4

SEAL, DUST (30X44X7)

09283-30023

$7.25

5

DISC, REAR BRAKE

69211-37F20

$213.37

6

SCREW

09103-06280

$3.03

7

AXLE, REAR

64711-37F00

$110.77

8

SPACER, RH

64751-36E00

$32.12

9

SPACER, LH

64751-36E00

$32.12

10

WASHER

09160-19022

$4.90

11

NUT

09159-18007

$19.68

12

SPROCKET, REAR (NT:51)

64511-40261

$155.22

12

SPROCKET, REAR (NT:48) | OPT

64511-14D60

Unavailable

12

SPROCKET,RR (NT:49) | OPT

64511-28E00

$120.85

12

SPROCKET,RR (NT:50) | OPT

64511-36E00

$126.60

13

SCREW (8X30.5)

09120-08017

$2.62

14

NUT

09159-08067

$5.57

15

RIM, REAR WHEEL (2.15X19)

65311-36E00

Unavailable

16

SPOKE SET, WHEEL

65320-37F10

$175.92

17

TIRE, REAR (100/90-19) (DUNLOP)

65110-36F00

Unavailable

18

TUBE This part replaces 55200-44610.

55200-44611

$33.73

19

PROTECTOR, INNER TUBE

65261-01B30

$6.97

20

STOPPER, BEAD

65270-43D00

$58.75

21

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

22

NUT This part replaces 08310-00083.

08310-0008A

$1.84

23

COVER, REAR DISC This part replaces 69231-37F10.

69231-37F12

$14.65

24

BOLT

09116-06197

$2.71
