Description

Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 8

61000-37F30

Unavailable

2

BEARING, PIVOT (22X29X30)

09263-22017

$22.58

3

BEARING, OUTER (22X35X2)

09263-22064

$27.72

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.83

5

SEAL, OUTER (29.2X37X4)

61262-36E00

$6.93

6

PLATE, PR SWINGINGARM, REAR

61128-37E20

Unavailable

7

SCREW This part replaces 02122-04103.

02122-0410A

$1.49

8

BEARING, ROD (20X27X15)

09263-20086

$16.47

9

SEAL, REAR (19X27X4)

62624-14500

$6.01

10

SPACER, PIVOT OUTER

61251-36E01

$13.16

11

SPACER, PIVOT INNER

61252-37F01

$44.15

12

SHAFT, PIVOT

61211-28C00

$67.10

13

WASHER This part replaces 08322-01163.

08322-0116A

$1.84

14

NUT

09159-16007

$12.61

15

BUFFER, CHAIN TOUCH DEFENSE This part replaces 61273-37F00.

61273-37F10

$71.85

16

SCREW This part replaces 02112-05083.

02112-0508A

$1.49

17

WASHER

09169-05022

$3.55

18

GUIDE, CHAIN This part replaces 61341-37F00.

61341-35G00

$48.05

19

PLATE, GUIDE OUTER

61342-37F00

$66.30

20

BOLT, UPPER

09103-06242

$2.76

21

BOLT, REAR

09103-06233

$2.11

22

NUT This part replaces 08316-10063.

08316-1006B

$2.50

23

WASHER, CHAIN ADJUSTER

61445-37F10

$39.62

24

BOLT (8X50)

09100-08287

$3.10

25

NUT

09159-08034

$1.62

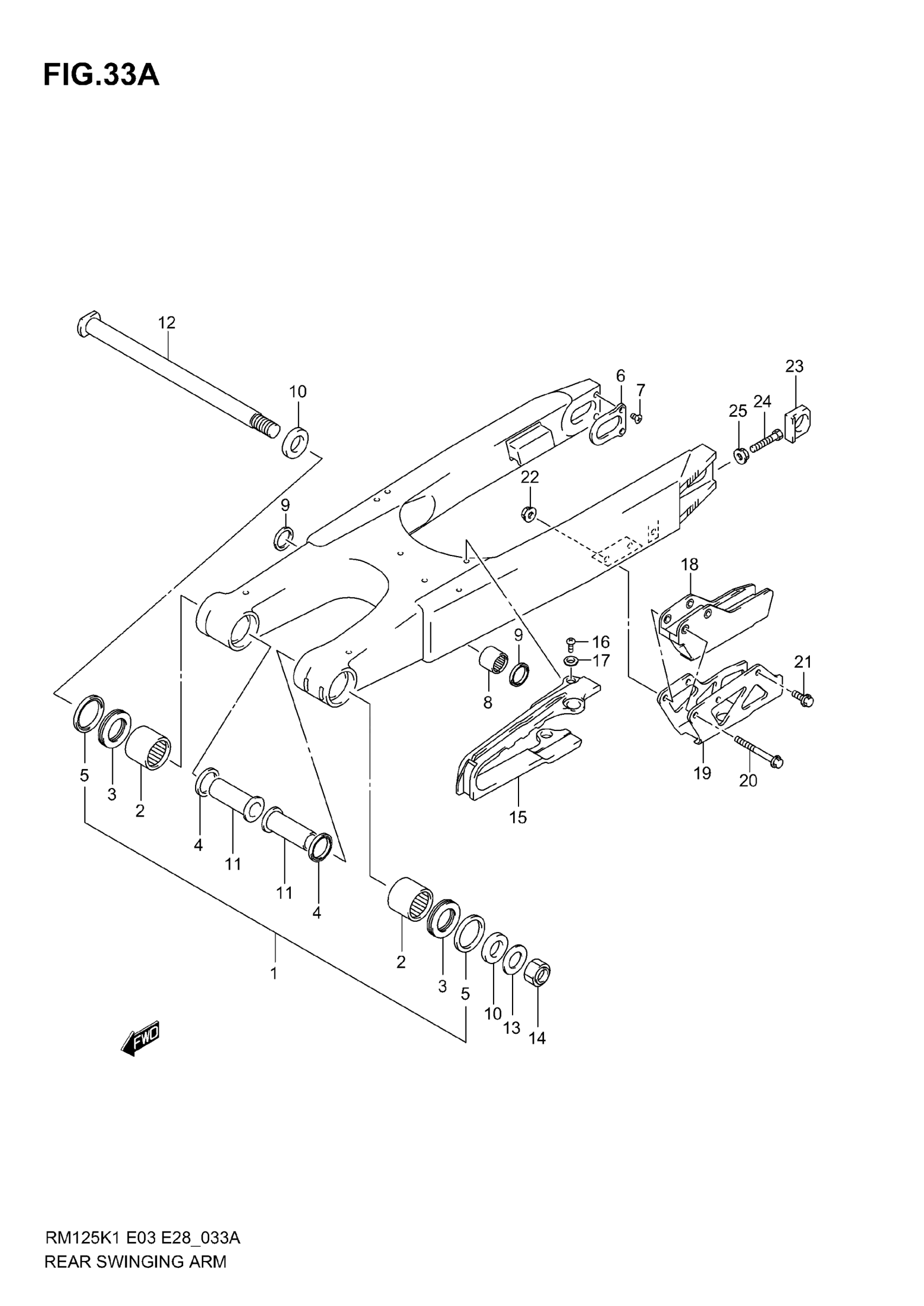

Suzuki RM125 (2006) REAR SWINGING ARM (MODEL K4) Diagram
