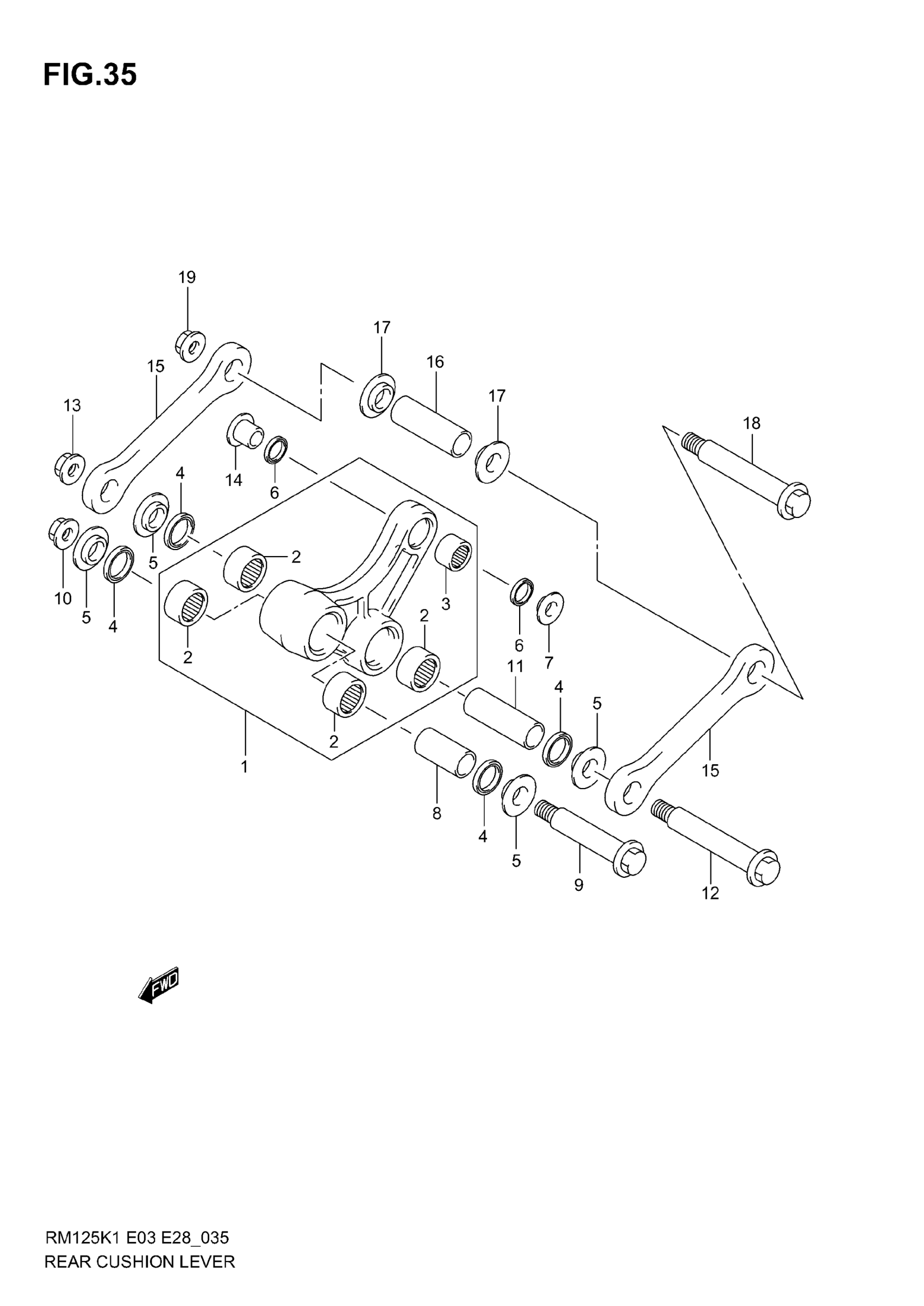

Suzuki RM125 (2006) REAR CUSHION LEVER (MODEL K1) Diagram

#

Description
Price

1

LEVER SET,REAR | Includes Item(s) 2 - 3 This part replaces 62600-37840.

62600-37841

Unavailable

2

BEARING (20X27X15)

09263-20086

$16.47

3

BEARING (16X22X12)

09263-16033

$20.26

4

SEAL, DUST (19X27X4)

62624-14500

$6.01

5

SPACER

62647-37F00

$17.20

6

OIL SEAL (16X22X2.5)

09284-16005

$6.95

7

SPACER, REAR LH

62685-37F00

Unavailable

8

SPACER, FRONT (15X20X31)

62317-37F00

$21.03

9

BOLT, FRONT (12X76)

62658-37E01

$15.95

10

NUT

09159-12056

$7.37

11

SPACER, CENTER (15X20X44)

62646-37F00

$23.85

12

BOLT, CENTER (12X100)

62621-37F00

$22.17

13

NUT

09159-12056

$7.37

14

SPACER, REAR (10X16X22)

62684-37F00

Unavailable

15

ROD, REAR CUSHION LEVER

62641-37F00

Unavailable

16

SPACER, ROD (15X20X44)

62646-37F00

$23.85

17

SPACER

62647-37F00

$17.20

18

BOLT, ROD

62621-37F00

$22.17

19

NUT

09159-12056

$7.37
