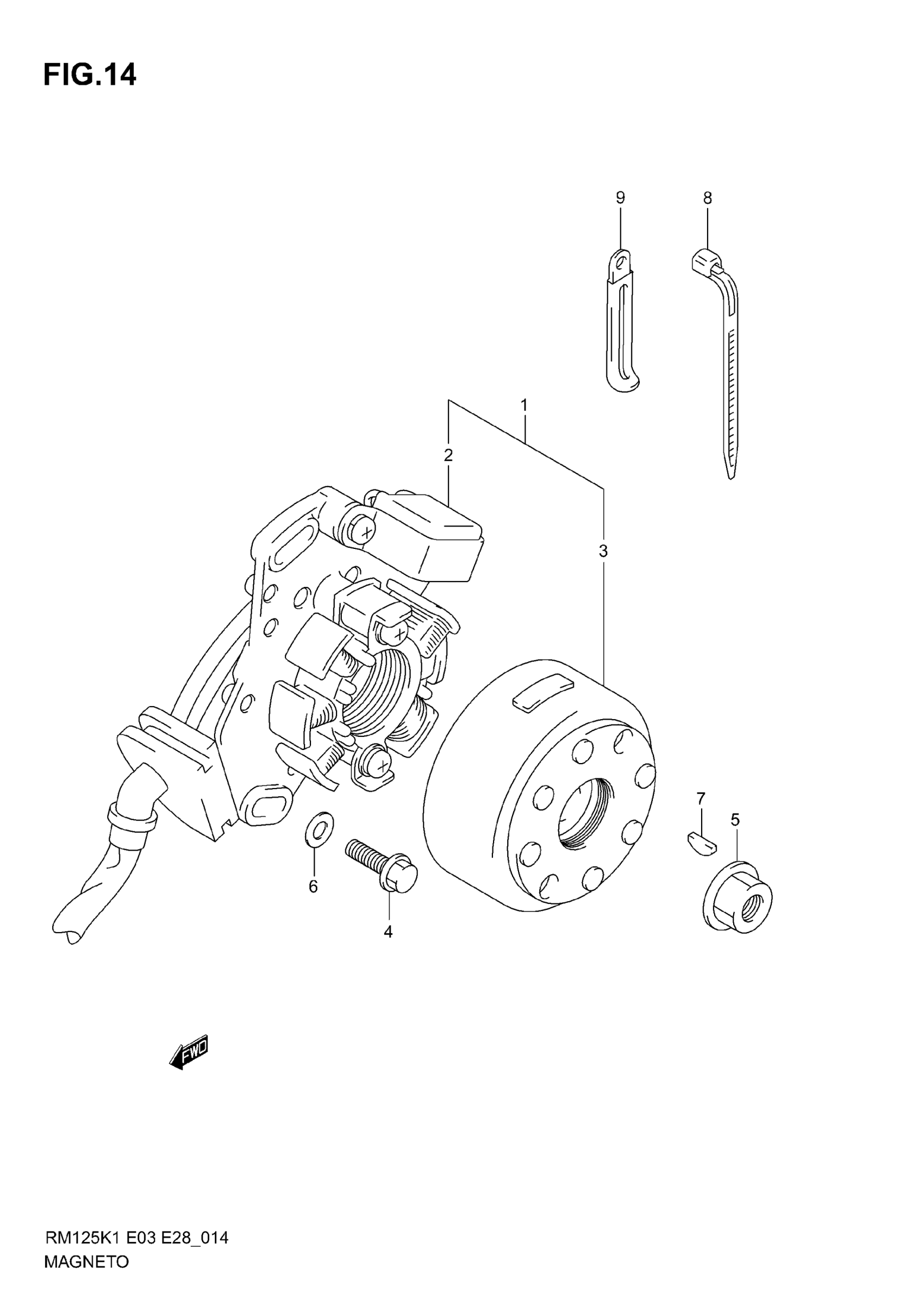

Suzuki RM125 (2006) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY | MODEL K1

32100-36F00

Unavailable

1

MAGNETO ASSY | MODEL K2/K3

32100-36F10

Unavailable

1

MAGNETO ASSY | MODEL K4

32100-36F20

Unavailable

1

MAGNETO ASSY | MODEL K5

32100-36F30

Unavailable

1

MAGNETO ASSY | MODEL K6; Includes Item(s) 2 - 3

32100-36F40

$829.28

2

STATOR ASSY | MODEL K1

32101-36F00

Unavailable

2

STATOR ASSY | MODEL K2/K3/K4

32101-36F10

Unavailable

2

STATOR ASSY | MODEL K5/K6

32101-36F30

$584.00

3

ROTOR ASSY | MODEL K1/K2/K3

32102-36F00

Unavailable

3

ROTOR ASSY | MODEL K4

32102-36F20

Unavailable

3

ROTOR ASSY | MODEL K5

32102-36F00

Unavailable

3

ROTOR ASSY | MODEL K6

32102-36F20

Unavailable

4

..BOLT | MODEL K1 This part replaces 01547-06203.

01547-0620B

$2.45

4

BOLT | MODEL K2/K3/K4/K5/K6 This part replaces 09103-06235.

01547-06207

$2.01

5

NUT This part replaces 08316-10103.

08316-1010B

$2.66

6

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

7

KEY

09420-04008

$3.42

8

CLAMP (L:165) | MODEL K1

09407-18402

$2.19

9

CLAMP(L:80) | MODEL K2/K3/K4/K5/K6 This part replaces 09404-06433.

09404-06036

$1.74
