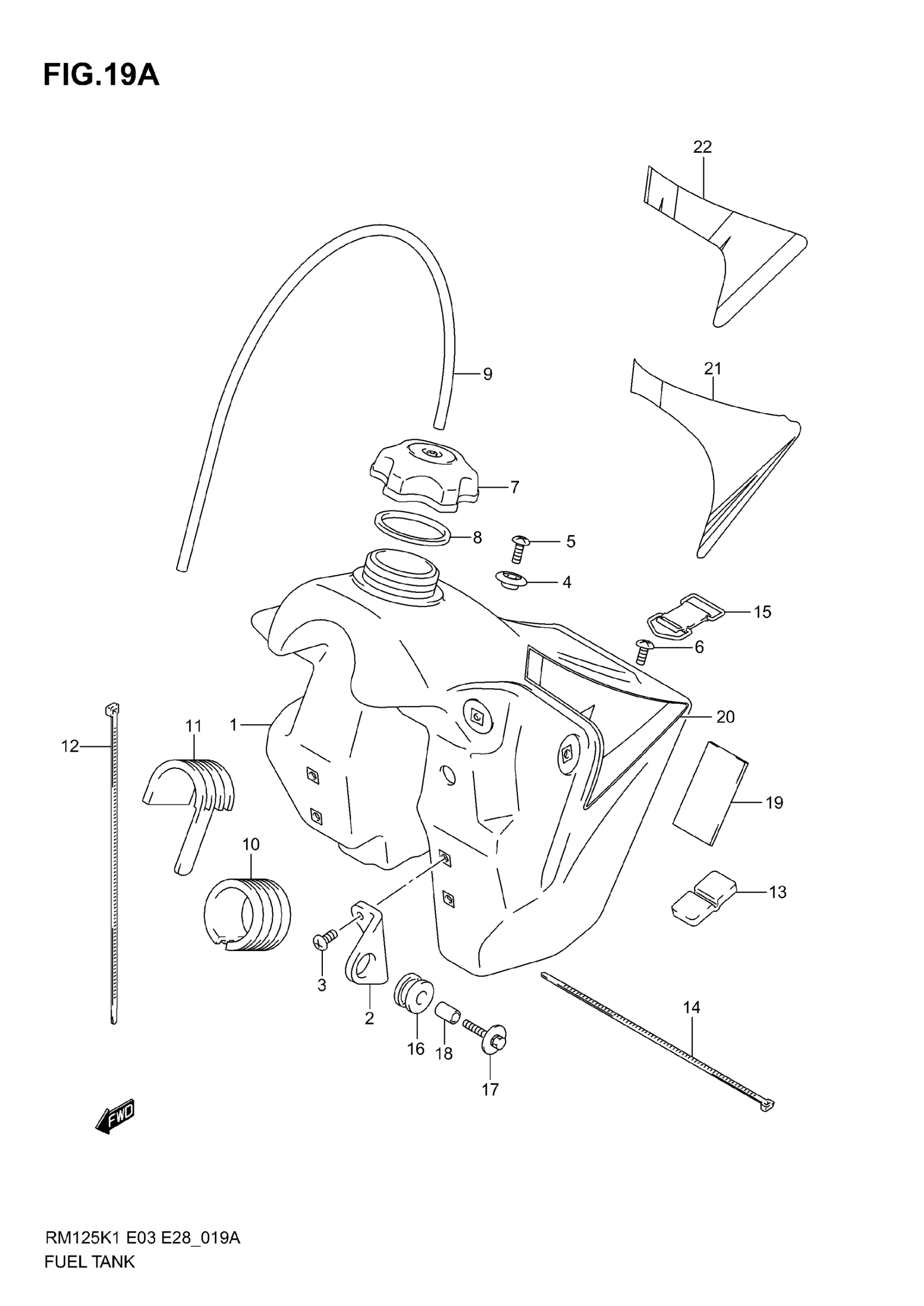

Suzuki RM125 (2006) FUEL TANK (MODEL K4/K5/K6) Diagram

#

Description
Price

1

TANK, FUEL (YELLOW) | MODEL K4

44110-36F10-YU1

Unavailable

1

TANK, FUEL (YELLOW) | MODEL K5/K6; Includes Item(s) 2 - 6 This part replaces 44110-36F20-YU1.

44110-36F21-YU1

Unavailable

2

BRACKET, FRONT

44131-27C01

$12.63

3

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

4

HOOK, SEAT FRONT | MODEL K4

44132-37F00

Unavailable

4

HOOK, SEAT FRONT | MODEL K5/K6

44132-37F10

$11.55

5

SCREW | MODEL K4 This part replaces 02142-06163.

02142-0616A

$1.49

5

SCREW | MODEL K5/K6 This part replaces 02122-06203.

02122-0620A

$1.49

6

SCREW, TANK BAND

09139-06134

$2.63

7

CAP, FUEL TANK

44210-37F00

$34.55

8

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

$4.21

9

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

10

CUSHION

44541-26C00

$18.02

11

CUSHION | MODEL K4

44541-36F00

Unavailable

11

CUSHION | MODEL K5/K6

44541-37F00

$15.60

12

CLAMP

09407-30402

$4.11

13

CUSHION, REAR | MODEL K4

44542-36F00

Unavailable

13

CUSHION, REAR | MODEL K5/K6

44542-37F00

$9.83

14

CLAMP, REAR

09407-25402

$4.64

15

BAND, REAR

44560-27C00

$7.69

16

CUSHION (8.7X26X14) This part replaces 14762-01B01.

14762-01B02

$3.74

17

BOLT, FRONT

09116-06195

$3.70

18

SPACER

09180-06268

$2.19

19

CUSHION, SIDE

33652-19F00

$4.37

20

TAPE SET | MODEL K4

68110-37F30-NT3

Unavailable

21

TAPE SET | MODEL K5

68110-37F40-AZR

Unavailable

22

TAPE SET | MODEL K6

68110-37F50-CFK

Unavailable
