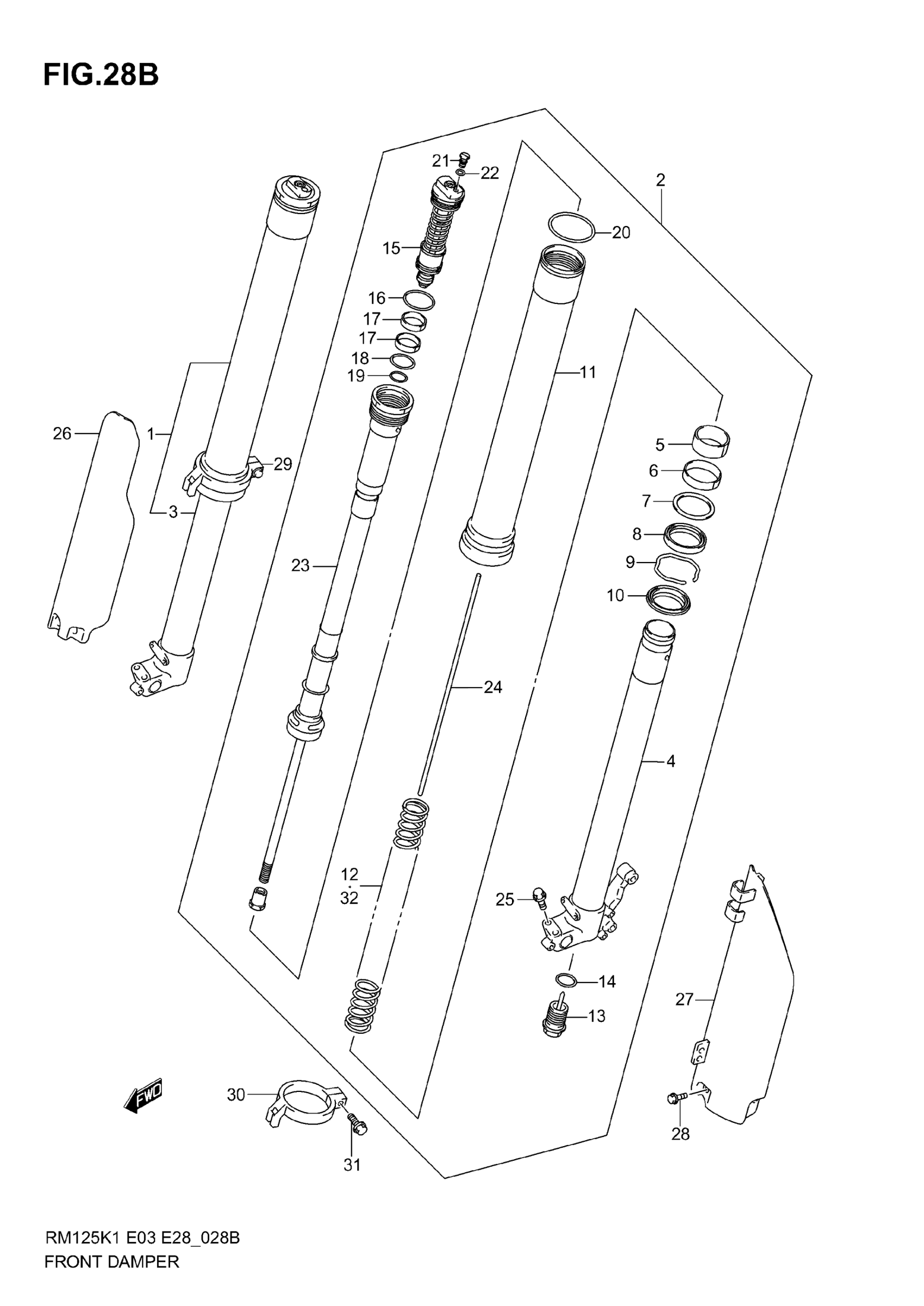

Suzuki RM125 (2006) FRONT DAMPER (MODEL K3) Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-36F50

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 25

51104-36F50

Unavailable

3

TUBE, INNER RH

51110-36F40

Unavailable

4

TUBE, INNER LH

51120-36F40

Unavailable

5

BUSH, GUIDE

51121-36F00

$27.62

6

BUSH, GUIDE

51167-36F20

Unavailable

7

SPACER, SEAL

51158-36F00

$9.37

8

SEAL, OIL

51153-36F00

$36.80

9

RING, OIL SEAL STOPPER This part replaces 51156-36F00.

51156-27C40

$5.19

10

SEAL, DUST

51173-36F00

$32.97

11

TUBE, OUTER

51130-36F20

Unavailable

12

SPRING, FRONT (K=0.42)

51171-36F10

Unavailable

13

BOLT, CENTER

51170-36F40

Unavailable

14

O RING

51177-36E20

$4.10

15

BOLT, FORK

51351-36F50

Unavailable

16

O RING

51117-36E00

$6.93

17

BUSH, FORK BOLT SLIDE

51123-28E30

$15.22

18

O RING

51174-36E40

$4.25

19

O RING, LOWER This part replaces 51175-36F00.

51175-36E20

$5.17

20

O RING

51117-36E60

$7.07

21

..BOLT,PLUG

51357-36F20

$14.37

22

...O-RING

51358-28E30

$4.28

23

ROD, DAMPER

51190-36F40

Unavailable

24

ROD, PUSH

51191-36F40

$23.10

25

BOLT, STEM This part replaces 51328-36F20.

51328-36F00

$8.92

26

PROTECTOR, RH

51501-36E60

Unavailable

27

PROTECTOR, LH

51511-36E60

Unavailable

28

BOLT

09103-06256

$2.28

29

GUIDE, PROTECTOR RH

51220-36E61

$58.92

30

GUIDE, PROTECTOR LH

51210-36E61

$58.92

31

BOLT

01547-06207

$2.01

32

SPRING, FRONT (HARD K=0.44) | OPT

51171-36F30

Unavailable

32

SPRING, FRONT (SOFT K=0.40) | OPT

51171-36F00

Unavailable
