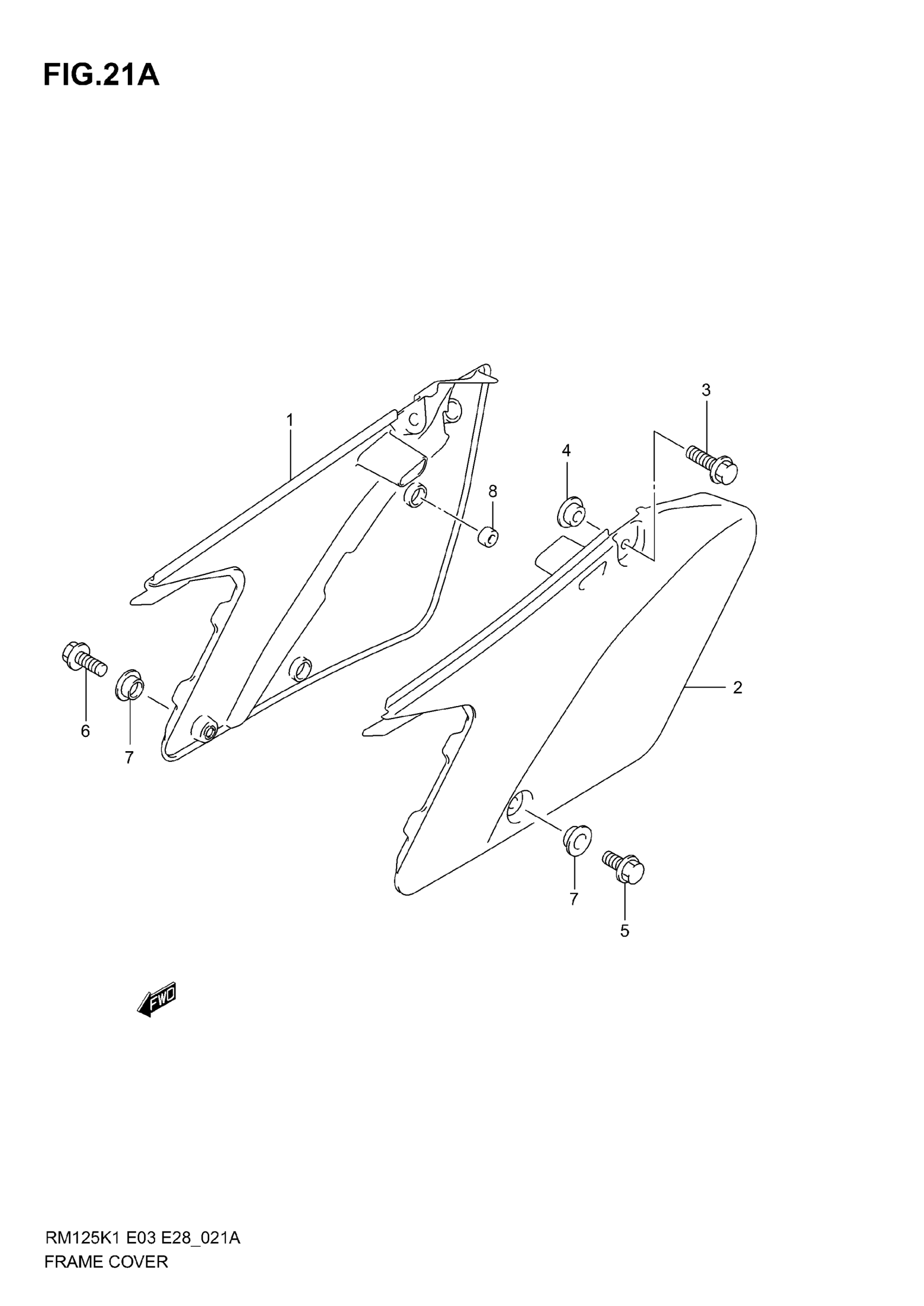

Suzuki RM125 (2006) FRAME COVER (MODEL K3/K4/K5) Diagram

#

Description

Price

1

COVER, FRAME RH (WHITE) | MODEL K3/K4 This part replaces 47111-36F10-30H.

47111-36F20-30H

Unavailable

1

COVER, FRAME RH (WHITE) | MODEL K5/K6

47111-36F20-30H

Unavailable

2

COVER, FRAME LH (WHITE) | MODEL K3/K4 This part replaces 47211-36F10-30H.

47211-36F20-30H

$98.52

2

COVER, FRAME LH (WHITE) | MODEL K5/K6

47211-36F20-30H

$98.52

3

BOLT, SEAT

09116-06188

$2.25

4

WASHER, SEAT This part replaces 53112-37F00.

53112-37F01

$10.58

5

BOLT, FRONT LH

09103-06233

$2.18

6

BOLT, FRONT RH

09103-06234

$2.17

7

WASHER (6.3X16X1) | MODEL K3/K4 This part replaces 09169-06054.

09169-06053

$1.10

7

WASHER | MODEL K5/K6 This part replaces 69232-37F00.

69232-37F01

$7.27

8

CUSHION, RH

47161-37F00

$9.47
