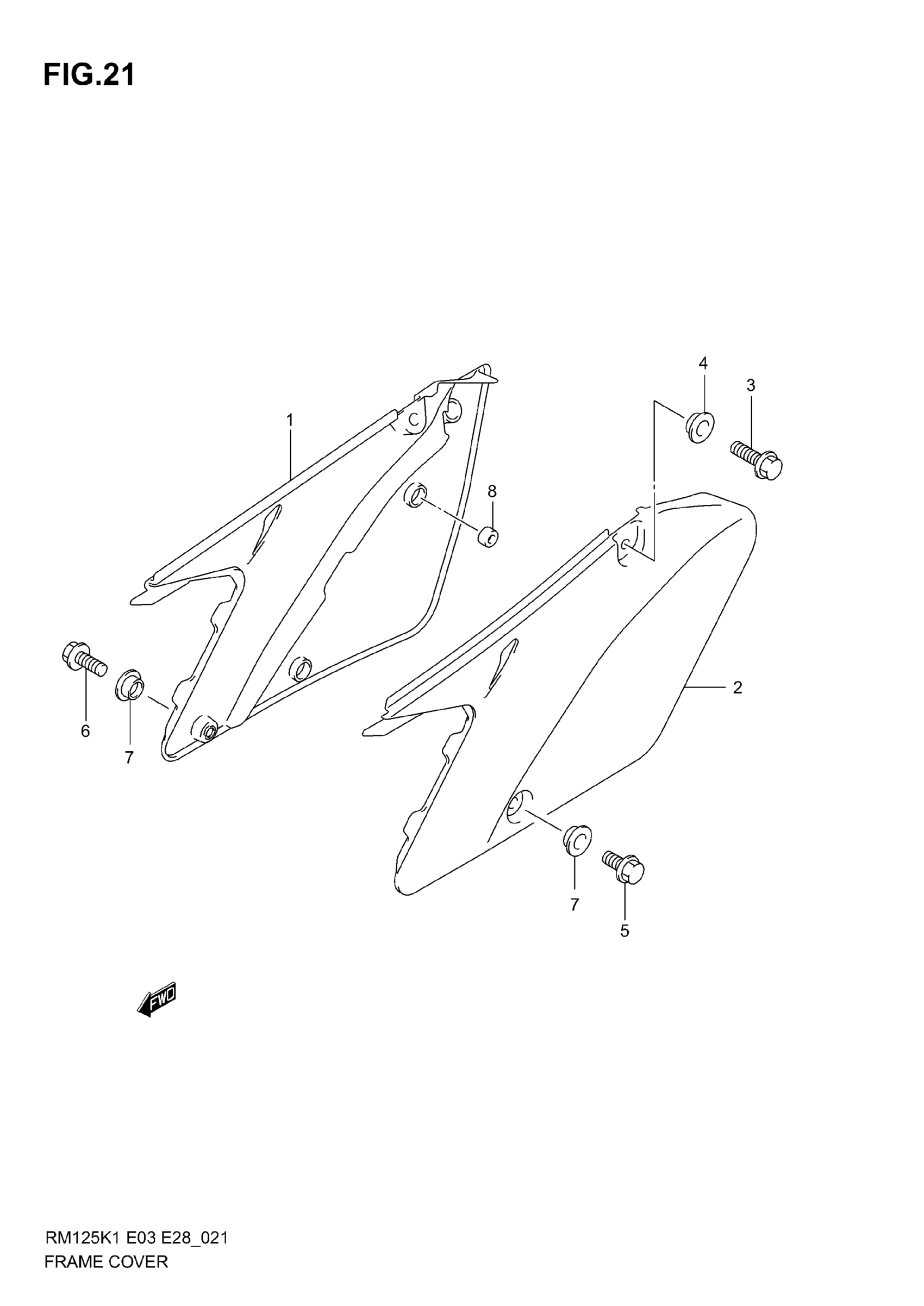

Suzuki RM125 (2006) FRAME COVER (MODEL K1/K2) Diagram

#

Description
Price

1

COVER, FRAME RH (YELLOW) | MODEL K1 This part replaces 47111-36F00-YR1.

47111-36F01-YU1

Unavailable

1

COVER, FRAME RH (YELLOW) | MODEL K2

47111-36F01-YU1

Unavailable

2

COVER, FRAME LH (YELLOW) | MODEL K1 This part replaces 47211-36F00-YR1.

47211-36F01-YU1

Unavailable

2

COVER, FRAME LH (YELLOW) | MODEL K2

47211-36F01-YU1

Unavailable

3

..BOLT | MODEL K1 This part replaces 01547-06203.

01547-0620B

$2.45

3

BOLT, SEAT | MODEL K2

09116-06188

$2.16

4

WASHER, SEAT This part replaces 53112-37F00.

53112-37F01

$7.97

5

BOLT | MODEL K1 This part replaces 01547-06123.

01547-0612B

$1.49

5

BOLT, FRONT LH | MODEL K2

09103-06233

$2.11

6

BOLT | MODEL K1 This part replaces 01547-06163.

01547-0616B

$2.45

6

BOLT, FRONT RH | MODEL K2

09103-06234

$2.35

7

WASHER (6.3X16X1) This part replaces 09169-06054.

09169-06053

$1.49

8

CUSHION, RH

47161-37F00

$8.38
