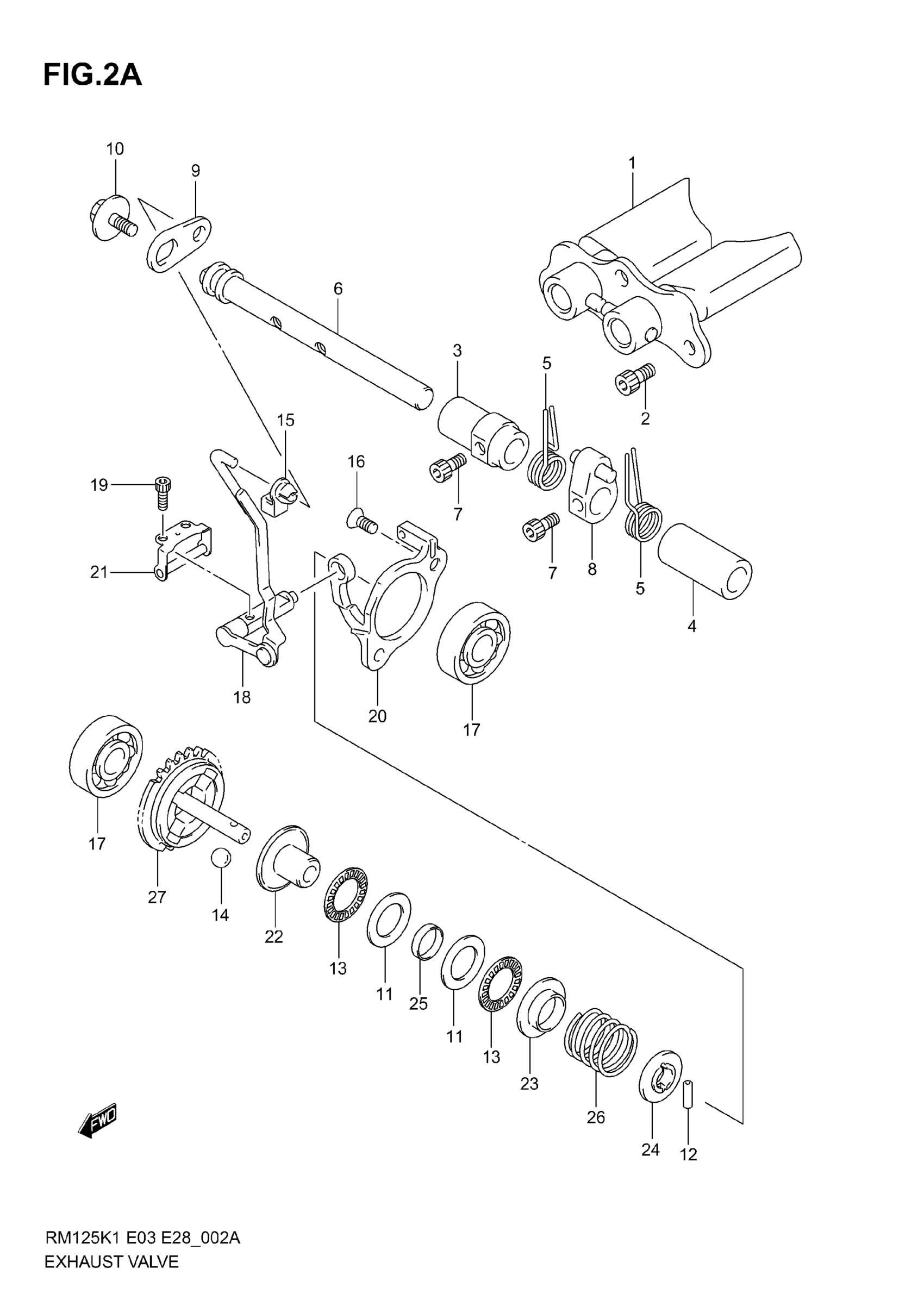

Suzuki RM125 (2006) EXHAUST VALVE (MODEL K3) Diagram

#

Description
Price

1

VALVE SET, EXHAUST

11250-36F10

Unavailable

2

BOLT This part replaces 07130-05123.

07130-0512B

$2.50

3

SPACER, EXHAUST VALVE

11268-36F10

Unavailable

4

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.06

5

SPRING, EXHAUST VALVE

11257-36F11

$7.57

6

SHAFT, EXHAUST VALVE

11259-36F10

Unavailable

7

BOLT, EXHAUST VALVE SHAFT

09106-04003

$2.07

8

ARM, EXHAUST VALVE

11270-36F10

$85.35

9

LEVER, EXHAUST VALVE NO.1

11266-36F10

Unavailable

10

BOLT, EXHAUST VALVE

09118-05003

$2.69

11

WASHER, GOVERNOR THRUST

09181-15223

$2.53

12

PIN, GOVERNOR SHAFT

09261-03017

$2.45

13

BEARING, GOVERNOR THRUST

09263-15003

$8.29

14

BALL, GOVERNOR

06111-12004

$1.93

15

BUSH, EXHAUST VALVE ROD

12686-01B00

$1.65

16

SCREW, ACTUATOR BASE

09120-05003

$1.91

17

BEARING, GOVERNOR SHAFT

09262-08005

$12.67

18

ACTUATOR, EXHAUST

12689-36F21

Unavailable

19

BOLT, ACTUATOR ARM

09106-04003

$2.07

20

BASE, ACTUATOR

12681-36F20

Unavailable

21

ARM, ACTUATOR

12682-36F21

$9.55

22

GOVERNOR, DRIVEN

12672-36F10

$38.55

23

STOPPER, GOVERNOR SPRING

12674-36F10

$28.27

24

STOPPER, GOVERNOR SPRING

12675-36F11

$21.03

25

SPACER, GOVERNOR

12676-36F10

$17.70

26

SPRING, GOVERNOR

12677-36F10

Unavailable

27

GOVERNOR SET, EXHAUST

12670-36810

Unavailable
