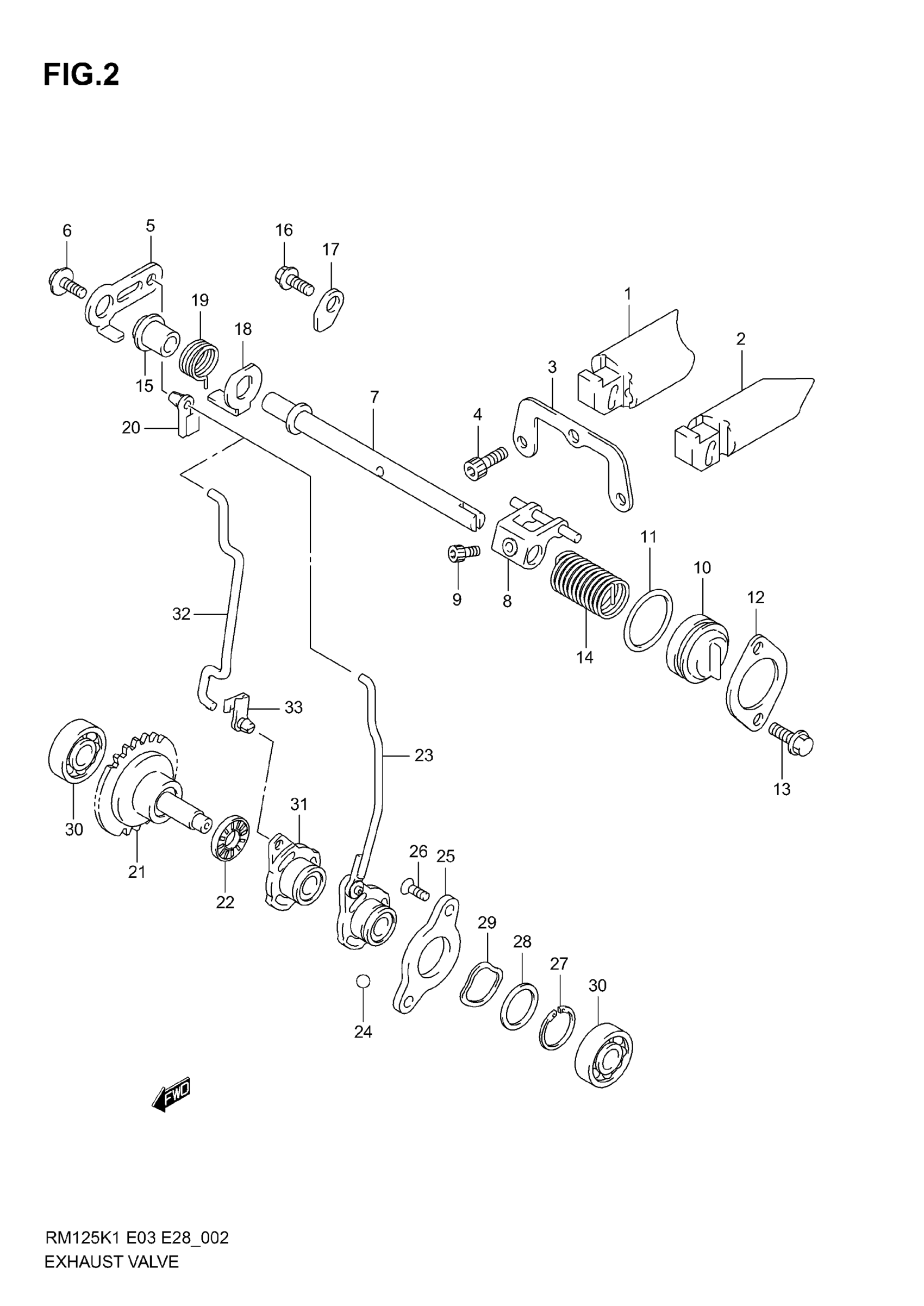

Suzuki RM125 (2006) EXHAUST VALVE (MODEL K1/K2) Diagram

#

Description
Price

1

VALVE, EXHAUST RH | MODEL K1

11254-36E31

Unavailable

1

VALVE, EXHAUST RH | MODEL K2

11254-36F00

Unavailable

2

VALVE, EXHAUST LH | MODEL K1

11255-36E31

Unavailable

2

VALVE, EXHAUST LH | MODEL K2

11255-36F00

Unavailable

3

PLATE, EXHAUST VALVE

11261-36F00

Unavailable

4

BOLT This part replaces 07130-05123.

07130-0512B

$2.50

5

LEVER, EXHAUST VALVE NO.1

11266-00B21

$3.43

6

BOLT (5X12)

09118-05003

$2.69

7

SHAFT, EXHAUST VALVE

11259-36E30

Unavailable

8

ARM, EXHAUST VALVE SHAFT

11270-36E30

Unavailable

9

SCREW

09106-04003

$2.07

10

CAP, EXHAUST VALVE

11258-27C01

Unavailable

11

O RING(D:1.9,ID This part replaces 09280-23002.

09280-23003

$1.80

12

RETAINER, EXHAUST VALVE

11265-00B22

Unavailable

13

SCREW This part replaces 02162-05123.

02162-0512A

$1.98

14

SPRING

11257-36E00

$6.43

15

SPACER

11268-01B01

$8.65

16

BOLT | MODEL K1 This part replaces 01547-06103.

01547-0610B

$2.45

16

BOLT | MODEL K2

09103-06256

$2.28

17

RETAINER

24741-21A00

$2.81

18

LEVER, EXHAUST VALVE NO.2

11267-00B21

$4.46

19

SPRING

09444-16010

Unavailable

20

BUSH, EXHAUST VALVE ROD

12686-01B00

$1.65

21

GOVERNOR ASSY, EXHAUST VALVE

12670-36F00

Unavailable

22

BEARING

09263-10002

$10.19

23

ACTUATOR, EXHAUST VALVE | MODEL K2

12680-36810

Unavailable

24

BALL

06111-06003

$1.49

25

STATOR, ACTUATOR

12682-01B02

$36.17

26

SCREW (5X10)

09120-05003

$1.91

27

CIRCLIP

09380-19003

$2.15

28

SHIM (19.1X25X0.3)

09181-19004

$3.78

29

LOCK WASHER

09164-19001

$4.69

30

BEARING (8X22X7)

09262-08005

$12.67

31

ACTUATOR, EXHAUST VALVE | MODEL K1

12680-01820

Unavailable

32

ROD, EXHAUST VALVE | MODEL K1

12685-36E11

Unavailable

33

BUSH, EXHAUST VALVE NO.2 | MODEL K1

12686-36E00

$2.37
