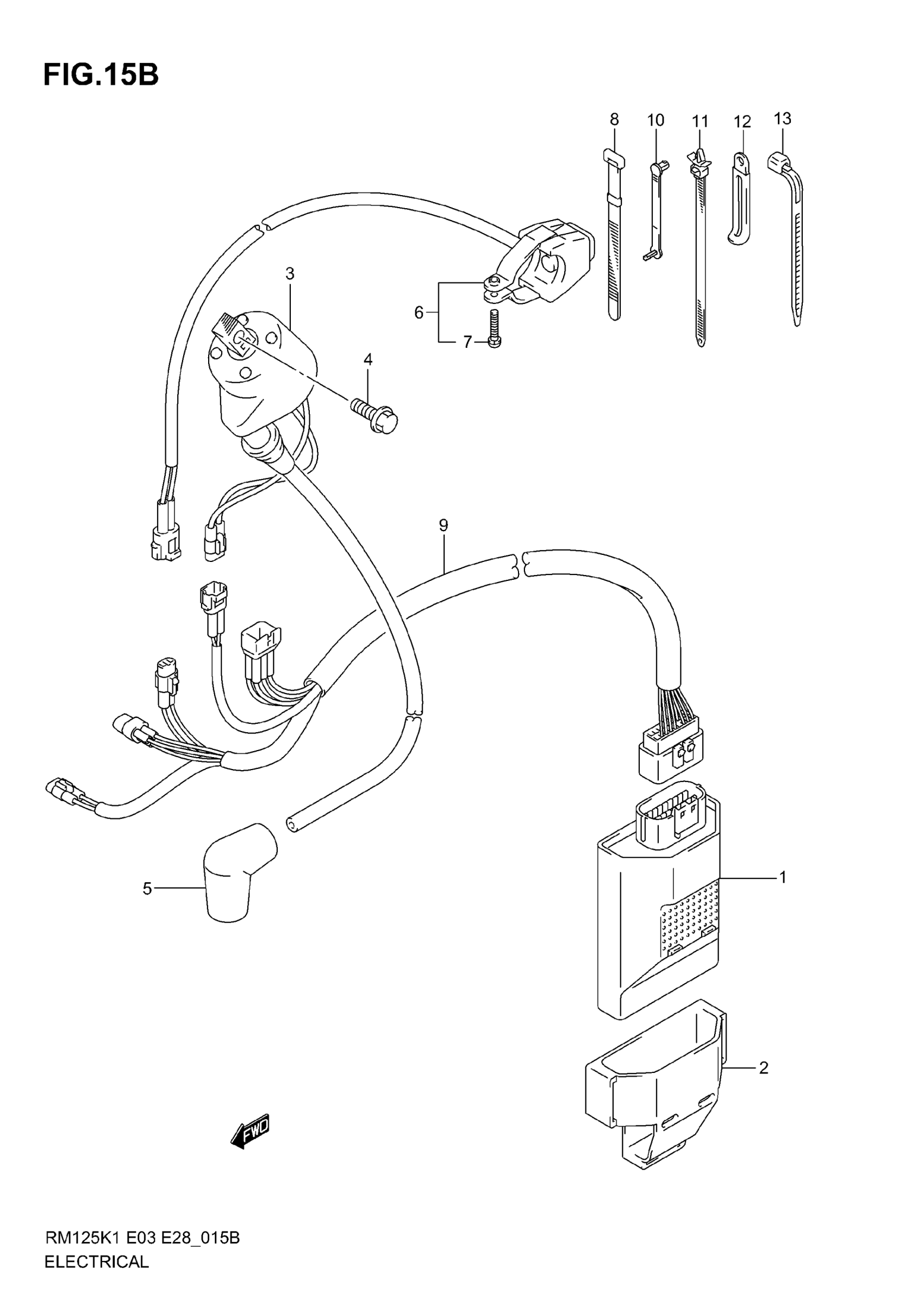

Suzuki RM125 (2006) ELECTRICAL (MODEL K5/K6) Diagram

#

Description
Price

1

CDI UNIT | MODEL K5

32900-36F30

Unavailable

1

CDI UNIT | MODEL K6

32900-36F40

$594.32

2

CUSHION, CDI UNIT

32980-37F00

$11.18

3

COIL ASSY, IGNITION

33410-37F00

$127.20

4

BOLT (6X16)

09103-06234

$2.35

5

CAP, SPARK PLUG

33510-20A02

$24.39

6

SWITCH ASSY,ENGINE STOP | Includes Item(s) 7

37820-36E00

$25.46

7

SCREW

02112-33165

$1.49

8

CLAMP (L:120)

09407-12402

$3.04

9

HARNESS, WIRING

36610-36F30

$181.83

10

CLAMP, WIRING HARNESS

36651-48E00

$3.25

11

CLAMP (L:90)

09407-11402

$1.80

12

CLAMP (L:45)

09404-06429

$1.83

13

CLAMP (L:95)

09407-11401

$2.63

13

CLAMP (L:125)

09407-14403

$2.26
