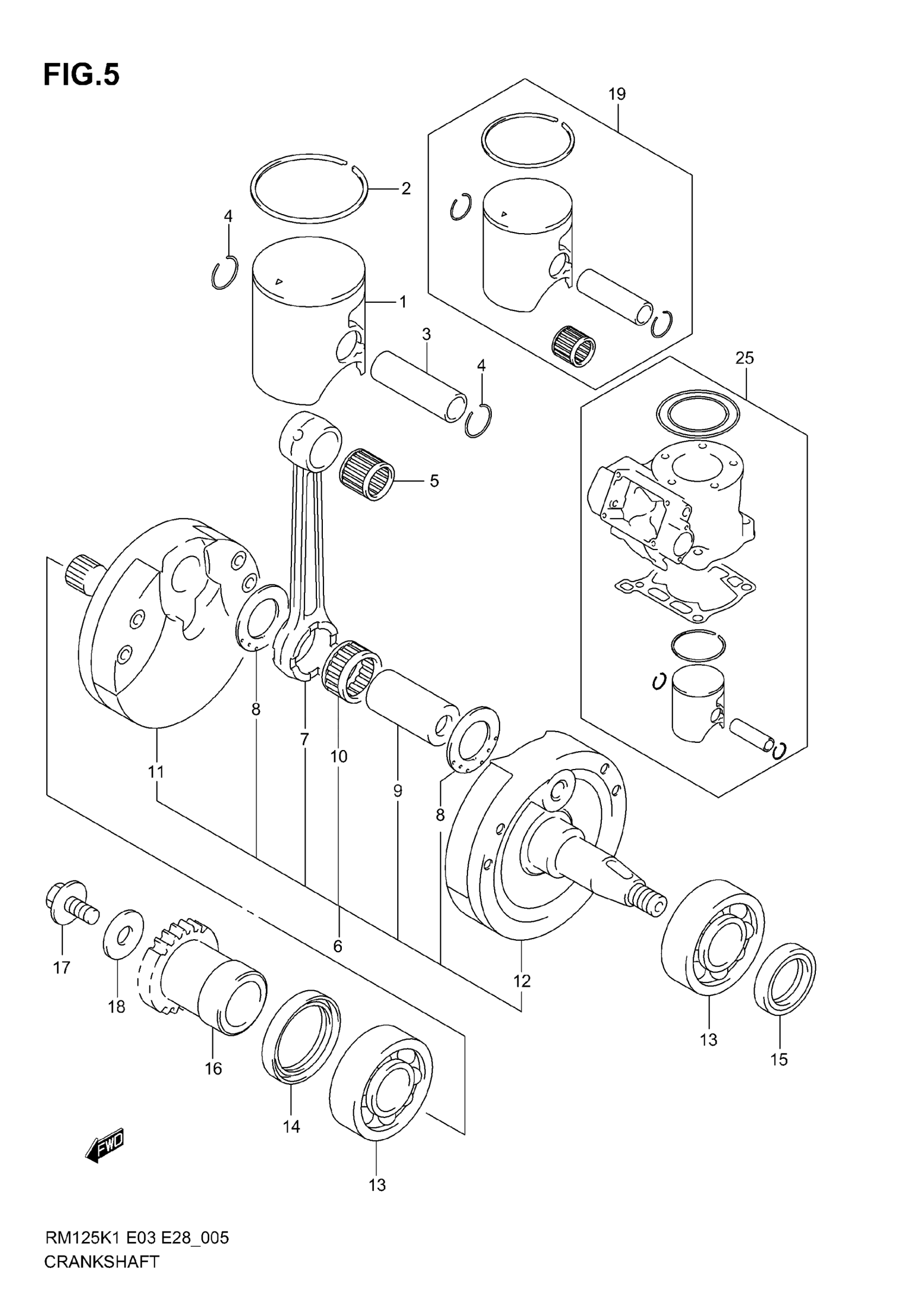

Suzuki RM125 (2006) CRANKSHAFT Diagram

#

Description
Price

1

PISTON | MODEL K1 This part replaces 12110-36E30-0F0.

12110-36E31-0F0

Unavailable

1

PISTON | MODEL K2/K3

12110-36E31-0F0

Unavailable

1

PISTON | MODEL K4/K5

12110-36F00-0F0

$138.38

1

PISTON | MODEL K6 This part replaces 12110-36F10-0F0.

12110-36F00-0F0

$138.38

2

RING, PISTON | MODEL K1/K2

12141-36E01

Unavailable

2

RING, PISTON | MODEL K3/K4/K5/K6

12141-36F00

$28.45

3

PIN, PISTON

12151-01B41

$17.72

4

CIRCLIP

09381-15001

$1.49

5

BEARING, PISTON PIN

09263-15040

$19.70

6

CRANKSHAFT ASSY | MODEL K1 This part replaces 12200-36F00.

12200-36F01

Unavailable

6

CRANKSHAFT ASSY | MODEL K2/K3

12200-36F01

Unavailable

6

NO DESCRIPTION AVAILABLE | MODEL K4 This part replaces 12200-36F20.

12200-36F21

Unavailable

6

CRANKSHAFT ASSY | MODEL K5

12200-36F30

Unavailable

6

CRANKSHAFT ASSY | MODEL K6; Includes Item(s) 7 - 12

12200-36F40

Unavailable

7

ROD, CONNECTING | MODEL K1 This part replaces 12161-36E11.

12161-36E12

Unavailable

7

ROD, CONNECTING | MODEL K2/K3

12161-36E12

Unavailable

7

ROD, CONNECTING | MODEL K4 This part replaces 12161-36F20.

12161-36F21

$107.47

7

ROD, CONNECTING | MODEL K5/K6

12161-36F21

$107.47

8

WASHER | MODEL K1/K2/K3/K5/K6

09160-22077

$20.77

8

WASHER | MODEL K4

09160-22079

$14.92

9

PIN, CRANK

12211-27C00

$40.10

10

BEARING (22X28X16)

09263-22060

$76.18

11

CRANKSHAFT, RH | MODEL K1/K2/K3

12220-36F00

Unavailable

11

CRANKSHAFT, RH | MODEL K4

12220-36F20

Unavailable

11

CRANKSHAFT, RH | MODEL K5

12220-36F30

Unavailable

11

CRANKSHAFT, RH | MODEL K6

12220-36F40

Unavailable

12

CRANKSHAFT, LH | MODEL K1/K2/K3

12260-36F00

Unavailable

12

CRANKSHAFT, LH | MODEL K4

12260-36F20

Unavailable

12

CRANKSHAFT, LH | MODEL K5

12260-36F30

Unavailable

12

CRANKSHAFT, LH | MODEL K6

12260-36F40

Unavailable

13

BEARING (22X56X16)

09262-22025

$57.67

14

SEAL,OIL (30X40X7) This part replaces 09283-30061.

09283-30076

$15.32

15

SEAL,OIL This part replaces 09283-18007.

09283-18010

$5.94

16

GEAR, PRIMARY DRIVE (NT:19)

21111-36E11

$78.80

17

BOLT, PRIMARY DRIVE GEAR | MODEL K1 This part replaces 21141-27C11.

09103-10339

$9.32

17

BOLT | MODEL K2/K3/K4/K5/K6

09103-10339

$9.32

18

WASHER

09164-11004

$5.47

19

TOP END KIT, ENGINE | OPT FOR E28 MODEL K1 This part replaces 12100-36830.

12100-36840

Unavailable

19

PISTON KIT | OPT FOR E28 MODEL K2

12100-36831

Unavailable

19

PISTON KIT | OPT FOR E28 MODEL K3

12101-36810

Unavailable

19

PISTON KIT | OPT FOR E28 MODEL K4/K5/K6; Includes Item(s) 20 - 24

12101-36821

$227.08

20

PISTON | MODEL K1 NOT SHOWN This part replaces 12110-36E30-0F0.

12110-36E31-0F0

Unavailable

20

PISTON | MODEL K2/K3 NOT SHOWN

12110-36E31-0F0

Unavailable

20

PISTON | MODEL K4/K5/K6 NOT SHOWN

12110-36F00-0F0

$138.38

21

RING, PISTON | MODEL K1/K2 NOT SHOWN

12141-36E01

Unavailable

21

RING, PISTON | MODEL K3/K4/K5/K6 NOT SHOWN

12141-36F00

$28.45

22

PIN, PISTON | NOT SHOWN

12151-01B41

$17.72

23

BEARING | NOT SHOWN

09263-15040

$19.70

24

CIRCLIP | NOT SHOWN

09381-15001

$1.49

25

TOP END KIT, ENGINE | OPT FOR E3 MODEL K1

12100-36840

Unavailable

25

TOP END KIT, ENGINE | OPT FOR E3 MODEL K2

12100-36841

Unavailable

25

TOP END KIT, ENGINE | OPT FOR E3 MODEL K3

12100-36860

Unavailable

25

TOP END KIT, ENGINE | OPT FOR E3 MODEL K4/K5/K6; Includes Item(s) 26 - 31

12100-36871

$259.74

26

O RING, CYLINDER HEAD NO.1 | NOT SHOWN

11147-27C11

$11.98

27

O RING, CYLINDER HEAD NO.2 | NOT SHOWN

11148-27C11

$5.35

28

GASKET, CYLINDER | MODEL K1/K2/K3 NOT SHOWN

11241-27C10

$15.78

28

GASKET, CYLINDER | MODEL K4/K5/K6 NOT SHOWN

11241-36F00

$15.65

29

PISTON | MODEL K1 NOT SHOWN This part replaces 12110-36E30-0F0.

12110-36E31-0F0

Unavailable

29

PISTON | MODEL K2/K3 NOT SHOWN

12110-36E31-0F0

Unavailable

29

PISTON | MODEL K4/K5/K6 NOT SHOWN

12110-36F00-0F0

$138.38

30

RING, PISTON | MODEL K1/K2 NOT SHOWN

12141-36E01

Unavailable

30

RING, PISTON | MODEL K3/K4/K5/K6 NOT SHOWN

12141-36F00

$28.45

31

CIRCLIP | NOT SHOWN

09381-15001

$1.49
