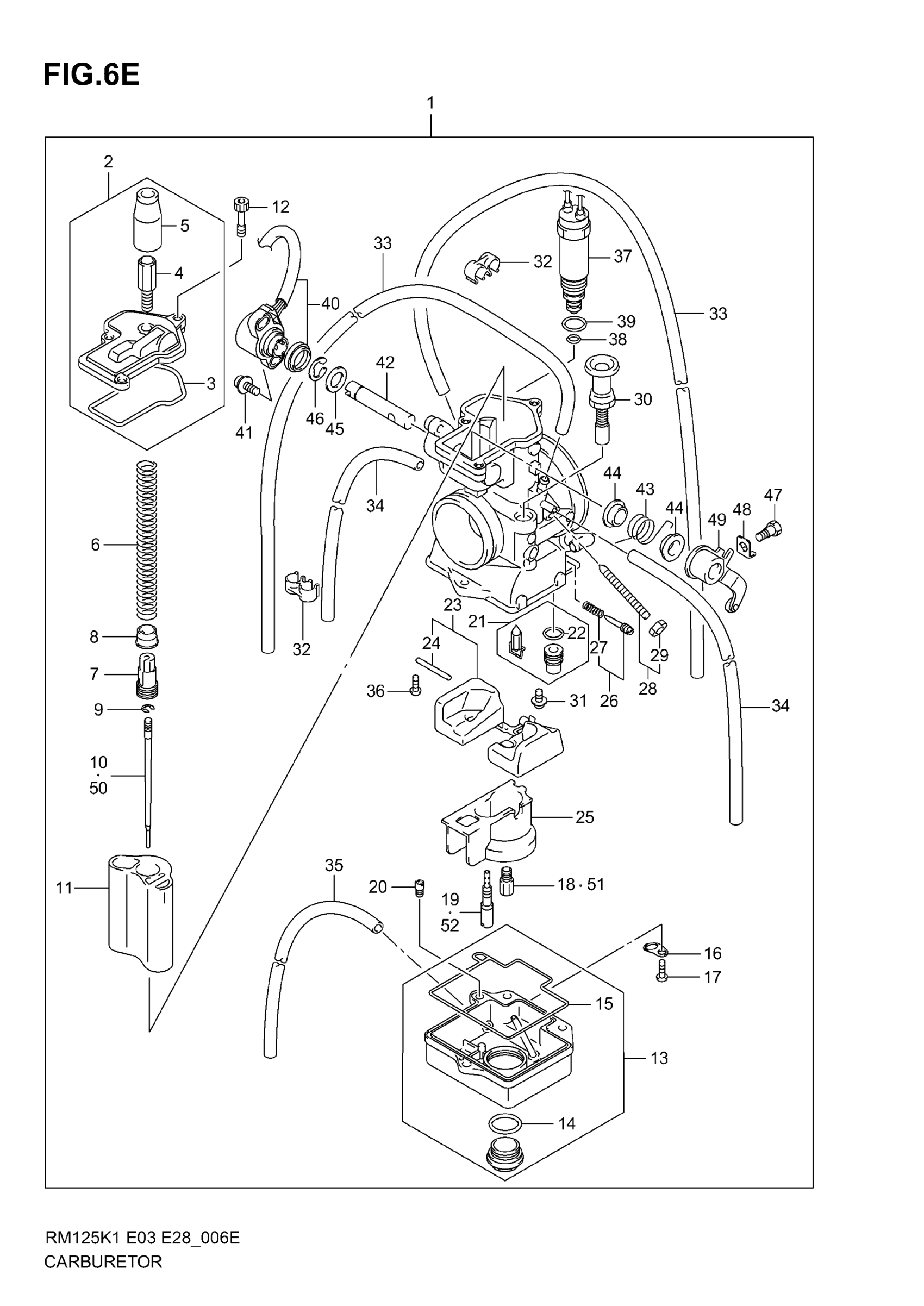

Suzuki RM125 (2006) CARBURETOR (MODEL K6) Diagram

#

Description
Price

1

CARBURETOR ASSY | Includes Item(s) 2 - 49 This part replaces 13200-36F80.

13200-36F81

$631.67

2

TOP CAP ASSY

13260-36F10

Unavailable

3

PACKING

13258-36F10

$7.05

4

CAP, RUBBER

13681-36F00

$10.07

5

ADJUSTER, CABLE

13577-41612

$7.01

6

SPRING

13573-36F10

$11.07

7

GUIDE

13518-36F00

$8.93

8

RING

13424-36F00

$6.00

9

E RING, MULTIPLE JET NOZZLE

13394-17E60

$1.80

10

NEEDLE, JET

13383-36FM0

$20.07

11

VALVE, PISTON

13551-36F50

$212.68

12

BOLT

13262-36F00

$7.05

13

FLOAT BODY ASSY

13250-36F20

$104.38

14

O RING

13246-29630

$6.30

15

O RING

13251-36F00

$13.62

16

PLATE

13693-36500

$3.25

17

SCREW This part replaces 13601-05148.

13601-05148-XC0

$3.11

18

JET, MAIN (#370)

09491-74003

$11.38

19

JET, PILOT (42.5)

09492-42003

$18.02

20

JET, POWER (55)

09492-55012

$18.02

21

VALVE ASSY,NEED This part replaces 13370-36F00.

13370-36F01

$43.53

22

O RING

13374-35C00

$5.99

23

FLOAT SET

13240-36F00

$74.03

24

PIN, FLOAT

13254-20010

$4.28

25

HOLDER

13418-36F00

$9.72

26

ADJUSTER SET (AS)

13280-36F20

$16.80

27

SPRING

13268-35010

$4.48

28

ADJUSTER SET (PV)

13270-36F00

$15.18

29

NUT

13607-47070

$3.13

30

PLUNGER ASSY

13411-36F00

$61.15

31

SCREW

13602-05A10

$3.56

32

CLIP

13619-42E00

$5.60

33

HOSE (3.5X6.5X600) | L:600!550

09351-35653-600

$4.64

34

HOSE (3.5X6.5X600) | L:600!350

09351-35653-600

$4.64

35

HOSE | L:600!300 This part replaces 09351-30503-600.

09351-30001-600

$3.57

36

SCREW This part replaces 02112-04083.

02112-0408A

$1.49

37

SOLENOID ASSY

13160-36F00

Unavailable

38

O RING

13453-36F00

$5.58

39

O RING

13454-36F00

Unavailable

40

SENSOR ASSY This part replaces 13581-36F00.

13581-36F01

$109.73

41

SCREW

13605-39F00

$4.52

42

SHAFT

13582-36F00

Unavailable

43

TORSION SPRING

13583-36F00

Unavailable

44

RING

13584-36F00

Unavailable

45

WASHER

13557-47070

$3.59

46

E RING

13617-44080

$2.90

47

BOLT

13587-36F00

Unavailable

48

PLATE

13588-36F00

Unavailable

49

LEVER ASSY

13589-36F00

Unavailable

50

NEEDLE, JET (6CHY17-64) | OPT

13383-36FM0

$20.07

50

NEEDLE, JET (6CHY17-63) | OPT

13383-36FP0

Unavailable

50

NEEDLE, JET (6CHY17-62) | OPT

13383-36FR0

$19.72

50

NEEDLE, JET (6CHY17-61) | OPT

13381-36F00

Unavailable

50

NEEDLE, JET (6CHY17-60) | OPT

13381-36F20

Unavailable

50

NEEDLE, JET (6CHY16-64) | OPT

13383-36FL0

Unavailable

50

NEEDLE, JET (6CHY16-63) | OPT

13383-36FN0

$20.45

50

NEEDLE, JET (6CHY16-62) | OPT

13383-36FQ0

$20.07

50

NEEDLE, JET (6CHY16-61) | OPT

13383-36FS0

Unavailable

50

NEEDLE, JET (6CHY16-60) | OPT

13381-36F10

Unavailable

51

JET, MAIN (#400) | OPT

09491-80010

$11.83

51

JET, MAIN (#410) | OPT

09491-82007

$12.88

51

JET, MAIN (#420) | OPT

09491-84008

Unavailable

51

JET, MAIN (#430) | OPT

09491-86002

$11.83

51

JET, MAIN (#440) | OPT

09491-88001

$18.02

51

JET, MAIN (#450) | OPT

09491-90005

$17.37

51

JET, MAIN (#460) | OPT

09491-92002

$18.02

51

JET, MAIN (#470) | OPT

09491-94004

$17.95

51

JET, MAIN (#480) | OPT

09491-96001

Unavailable

51

JET, MAIN (#490) | OPT

09491-98001

Unavailable

51

JET, MAIN (#500) | OPT

09491-10001

Unavailable

51

JET, MAIN (#350) | OPT

09491-70011

$11.38

51

JET, MAIN (#360) | OPT

09491-72011

$11.83

51

JET, MAIN (#370) | OPT

09491-74003

$11.38

51

JET, MAIN (#380) | OPT

09491-76003

$11.83

51

JET, MAIN (#390) | OPT

09491-78005

$11.83

51

JET, MAIN (#300) | OPT

09491-60007

$13.05

51

JET, MAIN (#310) | OPT

09491-62005

$11.83

51

JET, MAIN (#320) | OPT

09491-64002

$11.83

51

JET, MAIN (#330) | OPT

09491-66002

$11.38

51

JET, MAIN (#340) | OPT

09491-68002

$11.38

52

JET, PILOT (25) | OPT

09492-25011

$18.02

52

JET, PILOT (27.5) | OPT

09492-27011

$17.82

52

JET, PILOT (30.0) | OPT

09492-30014

Unavailable

52

JET, PILOT (32.5) | OPT

09492-32010

$14.76

52

JET, PILOT (35.0) | OPT

09492-35021

$18.02

52

JET, PILOT (37.5) | OPT

09492-37003

$18.02

52

JET, PILOT (40.0) | OPT

09492-40028

$18.02

52

JET, PILOT (42.5) | OPT

09492-42023

$18.02

52

JET, PILOT (45.0) | OPT

09492-45034

$30.70

52

JET, PILOT (47.5) | OPT

09492-47022

$18.02

53

WASHER, JET NEEDLE CLIP | OPT NOT SHOWN

13394-36F20

Unavailable

54

HOLDER, GUIDE | OPT NOT SHOWN

13518-36F20

Unavailable
