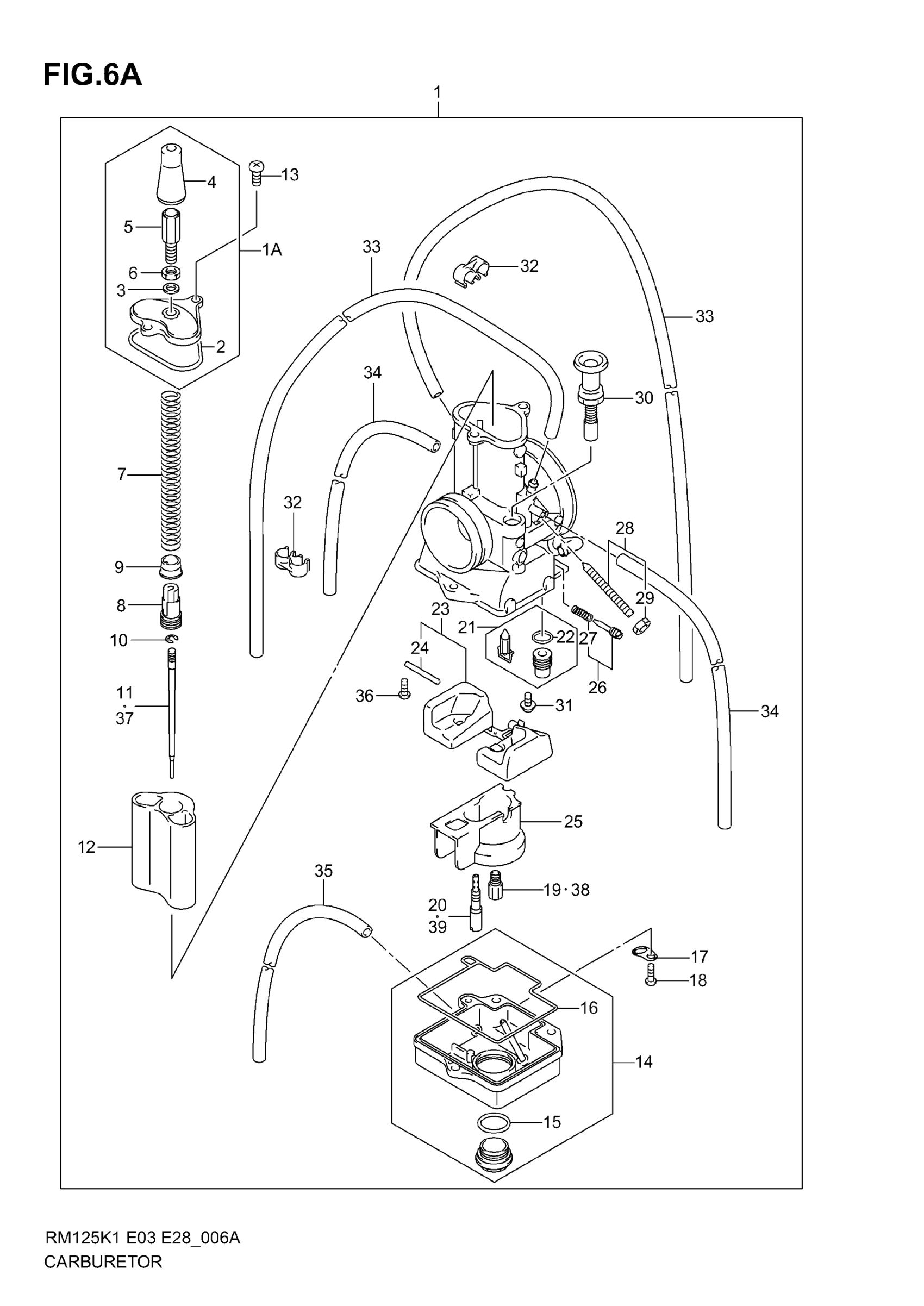

Suzuki RM125 (2006) CARBURETOR (MODEL K2) Diagram

#

Description
Price

1

CARBURETOR ASSY | Includes Item(s) 1A - 36

13200-36F10

Unavailable

1A

TOP CAP ASSY

13260-36F00

Unavailable

2

PACKING

13258-36F00

$6.47

3

WASHER

13531-09300

Unavailable

4

CAP

13681-16600

$3.77

5

CABLE ADJUSTER

13577-41612

$7.01

6

NUT

13661-16600

$4.64

7

SPRING

13573-36F00

$10.80

8

GUIDE HOLDER

13518-36F00

$8.93

9

RING

13424-36F00

$6.00

10

E RING

13394-17E60

$1.80

11

NEEDLE, JET (6BGY27-77)

13383-36FC0

$20.10

12

PISTON, VALVE

13551-36F10

$213.57

13

SCREW

13602-48B10

$3.43

14

FLOAT BODY ASSY

13250-36F10

Unavailable

15

O RING

13246-29630

$6.30

16

O RING

13251-36F00

$13.62

17

PLATE

13693-36500

$3.25

18

SCREW This part replaces 13601-05148.

13601-05148-XC0

$3.11

19

JET, MAIN (460)

09491-92002

$18.02

20

JET, PILOT (32.5)

09492-32010

$14.76

21

VALVE ASSY,NEED This part replaces 13370-36F00.

13370-36F01

$43.53

22

O RING, NEEDLE VALVE

13374-35C00

$5.99

23

FLOAT SET

13240-36F00

$74.03

24

PIN

13254-20010

$4.28

25

HOLDER

13418-36F00

$9.72

26

ADJUSTER SET (AS) | 1,1/2

13280-36F00

Unavailable

27

SPRING

13268-35010

$4.48

28

ADJUSTER SET (PV)

13270-36F00

$15.18

29

NUT

13607-47070

$3.13

30

PLUNGER ASSY

13411-36F00

$61.15

31

SCREW

13602-05A10

$3.56

32

CLIP

13619-42E00

$5.60

33

HOSE (3.5X6.5X600) | L:600!550

09351-35653-600

$4.64

34

HOSE (3.5X6.5X600) | L:600!350

09351-35653-600

$4.64

35

HOSE | L:600!300 This part replaces 09351-30503-600.

09351-30001-600

$3.57

36

SCREW This part replaces 02112-04083.

02112-0408A

$1.49

37

NEEDLE, JET (6BGY27-71) | OPT

13383-36FJ0

Unavailable

37

NEEDLE, JET (6BGY27-73) | OPT

13383-36FG0

Unavailable

37

NEEDLE, JET (6BGY27-75) | OPT

13383-36FE0

Unavailable

37

NEEDLE, JET (6BGY27-77) | OPT

13383-36FC0

$20.10

37

NEEDLE, JET (6BGY27-79) | OPT

13383-36FA0

Unavailable

37

NEEDLE, JET (6BGY28-71) | OPT

13383-36FK0

Unavailable

37

NEEDLE, JET (6BGY28-73) | OPT

13383-36FH0

Unavailable

37

NEEDLE, JET (6BGY28-75) | OPT

13383-36FF0

Unavailable

37

NEEDLE, JET (6BGY28-77) | OPT

13383-36FD0

Unavailable

37

NEEDLE, JET (6BGY28-79) | OPT

13383-36FB0

Unavailable

38

JET, MAIN (400) | OPT

09491-80010

$11.83

38

JET, MAIN (410) | OPT

09491-82007

$12.88

38

JET, MAIN (420) | OPT

09491-84008

Unavailable

38

JET, MAIN (430) | OPT

09491-86002

$11.83

38

JET, MAIN (440) | OPT

09491-88001

$18.02

38

JET, MAIN (450) | OPT

09491-90005

$17.37

38

JET, MAIN (460) | OPT

09491-92002

$18.02

38

JET, MAIN (470) | OPT

09491-94004

$17.95

38

JET, MAIN (480) | OPT

09491-96001

Unavailable

38

JET, MAIN (490) | OPT

09491-98001

Unavailable

38

JET, MAIN (500) | OPT

09491-10001

Unavailable

38

JET, MAIN (520) | OPT

09491-52008

Unavailable

38

JET, MAIN (540) | OPT

09491-54003

Unavailable

38

JET, MAIN (560) | OPT

09491-56005

Unavailable

38

JET, MAIN (580) | OPT

09491-58007

Unavailable

38

JET, MAIN (600) | OPT

09491-60013

Unavailable

39

JET, PILOT (25) | OPT

09492-25011

$18.02

39

JET, PILOT (27.5) | OPT

09492-27011

$17.82

39

JET, PILOT (30) | OPT

09492-30014

Unavailable

39

JET, PILOT (32.5) | OPT

09492-32010

$14.76

39

JET, PILOT (35) | OPT

09492-35021

$18.02
