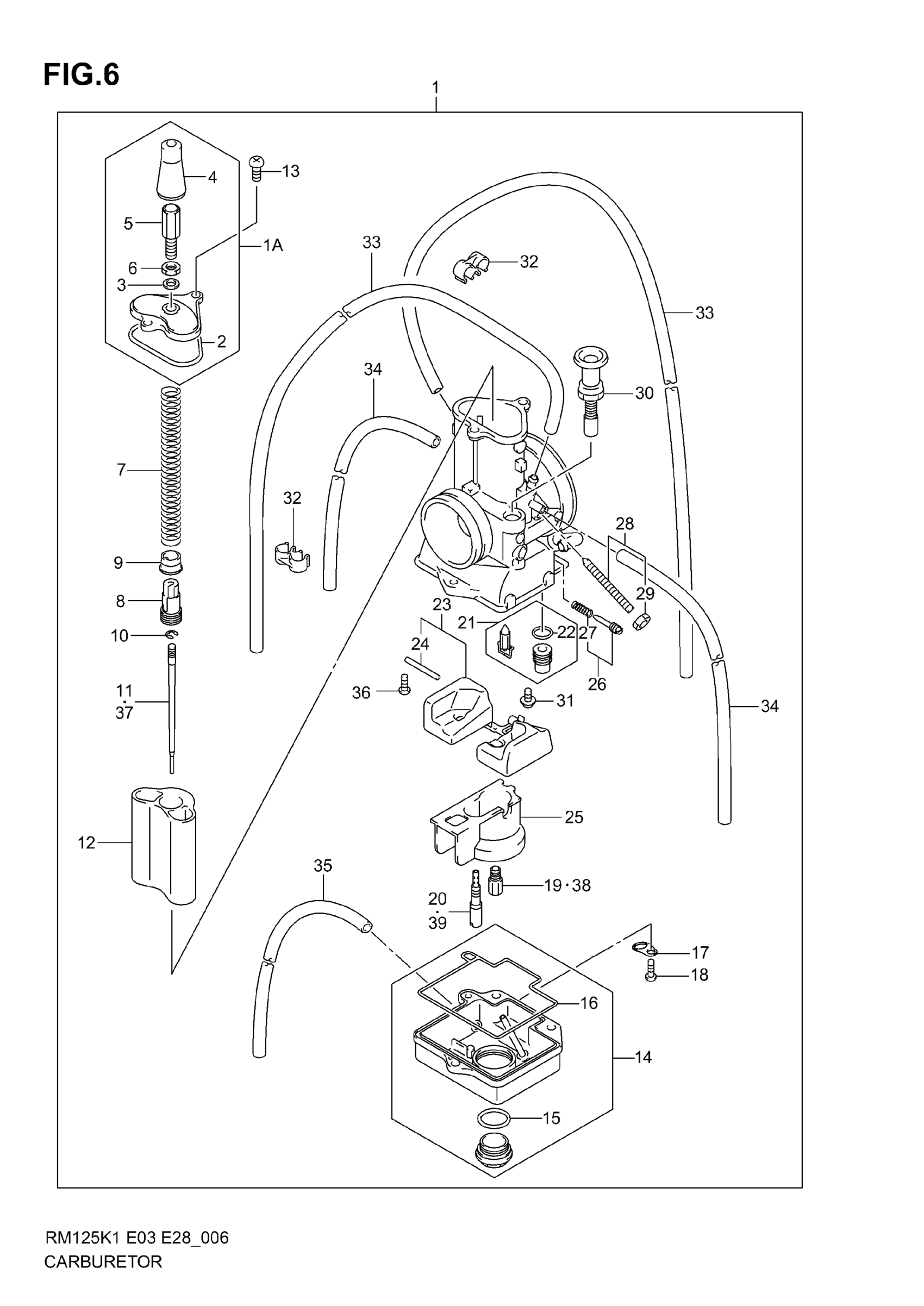

Find the part on the Carburetor diagram for your 2006 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki RM125 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY | Includes Item(s) 1A - 36

13200-36F00

1
Out of stock

1A

TOP CAP ASSY

13260-36F00

1
Out of stock

2

PACKING

13258-36F00

1
Out of stock

3

WASHER

13531-09300

1
Out of stock

4

CAP

13681-16600

1
Out of stock

5

CABLE ADJUSTER

13577-41612

1
Out of stock

6

NUT

13661-16600

1
Out of stock

7

SPRING

13573-36F00

1
Out of stock

8

GUIDE HOLDER

13518-36F00

1
Out of stock

9

RING

13424-36F00

1
Out of stock

10

E RING

13394-17E60

1

$2.19

In stock

11

NEEDLE, JET (6BGY23-75)

13383-36F40

1
Out of stock

12

PISTON, VALVE

13551-36F00

1
Out of stock

13

SCREW

13602-48B10

2
Out of stock

14

FLOAT BODY ASSY

13250-36F00

1
Out of stock

15

O RING

13246-29630

1
Out of stock

16

O RING

13251-36F00

1
Out of stock

17

PLATE

13693-36500

1
Out of stock

18

SCREW This part replaces 13601-05148.

13601-05148-XC0

3
Out of stock

19

JET, MAIN (460)

09491-92002

1
Out of stock

20

JET, PILOT (27.5)

09492-27011

1
Out of stock

21

VALVE ASSY,NEED This part replaces 13370-36F00.

13370-36F01

1
Out of stock

22

O RING, NEEDLE VALVE

13374-35C00

1

$5.97

In stock

23

FLOAT SET

13240-36F00

1
Out of stock

24

PIN

13254-20010

1
Out of stock

25

HOLDER

13418-36F00

1
Out of stock

26

ADJUSTER SET (AS)

13280-36F00

1
Out of stock

27

SPRING

13268-35010

1
Out of stock

28

ADJUSTER SET (PV)

13270-36F00

1
Out of stock

29

NUT

13607-47070

1
Out of stock

30

PLUNGER ASSY

13411-36F00

1
Out of stock

31

SCREW

13602-05A10

1

$3.55

In stock

32

CLIP

13619-42E00

2
Out of stock

33

HOSE (3.5X6.5X600) | L:600!550

09351-35653-600

2
Out of stock

34

HOSE (3.5X6.5X600) | L:600!350

09351-35653-600

2
Out of stock

35

HOSE | L:600!300 This part replaces 09351-30503-600.

09351-30001-600

1
Out of stock

36

1

$1.15

In stock

37

NEEDLE, JET (6BGY23-73) | OPT

13383-36F00

1
Out of stock

37

NEEDLE, JET (6BGY24-73) | OPT

13383-36F10

1
Out of stock

37

NEEDLE, JET (6BGY23-74) | OPT

13383-36F20

1
Out of stock

37

NEEDLE, JET (6BGY24-74) | OPT

13383-36F30

1
Out of stock

37

NEEDLE, JET (6BGY23-75) | OPT

13383-36F40

1
Out of stock

37

NEEDLE, JET (6BGY24-75) | OPT

13383-36F50

1
Out of stock

37

NEEDLE, JET (6BGY23-76) | OPT

13383-36F60

1
Out of stock

37

NEEDLE, JET (6BGY24-76) | OPT

13383-36F70

1
Out of stock

37

NEEDLE, JET (6BGY23-77) | OPT

13383-36F80

1
Out of stock

37

NEEDLE, JET (6BGY24-77) | OPT

13383-36F90

1
Out of stock

38

JET, MAIN (400) | OPT

09491-80010

1
Out of stock

38

JET, MAIN (410) | OPT

09491-82007

1
Out of stock

38

JET, MAIN (420) | OPT

09491-84008

1
Out of stock

38

JET, MAIN (430) | OPT

09491-86002

1
Out of stock

38

JET, MAIN (440) | OPT

09491-88001

1
Out of stock

38

JET, MAIN (450) | OPT

09491-90005

1
Out of stock

38

JET, MAIN (460) | OPT

09491-92002

1
Out of stock

38

JET, MAIN (470) | OPT

09491-94004

1
Out of stock

38

JET, MAIN (480) | OPT

09491-96001

—
Out of stock

38

JET, MAIN (490) | OPT

09491-98001

—
Out of stock

38

JET, MAIN (500) | OPT

09491-10001

—
Out of stock

38

JET, MAIN (520) | OPT

09491-52008

1
Out of stock

38

JET, MAIN (540) | OPT

09491-54003

1
Out of stock

38

JET, MAIN (560) | OPT

09491-56005

1
Out of stock

38

JET, MAIN (580) | OPT

09491-58007

1
Out of stock

38

JET, MAIN (600) | OPT

09491-60013

1
Out of stock

39

JET, PILOT (25) | OPT

09492-25011

1
Out of stock

39

JET, PILOT (27.5) | OPT

09492-27011

1
Out of stock

39

JET, PILOT (30) | OPT

09492-30014

1
Out of stock

39

JET, PILOT (32.5) | OPT

09492-32010

1
Out of stock

39

JET, PILOT (35) | OPT

09492-35021

1
Out of stock
