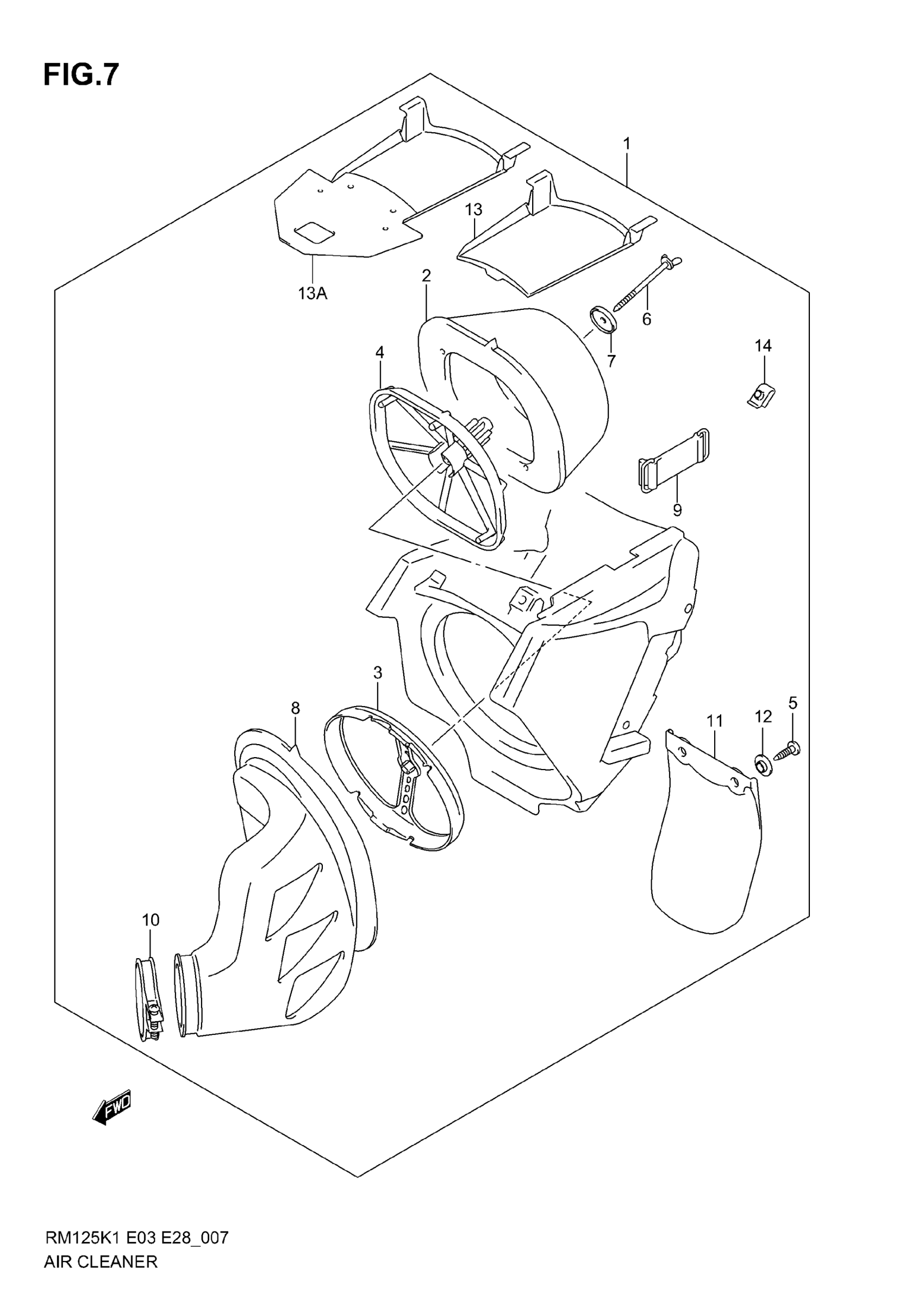

Suzuki RM125 (2006) AIR CLEANER (MODEL K1/K2/K3) Diagram

#

Description
Price

1

CLEANER ASSY, AIR | MODEL K1

13700-36F01

Unavailable

1

CLEANER ASSY, AIR | MODEL K2

13700-36F10

Unavailable

1

CLEANER ASSY, AIR | MODEL K3; Includes Item(s) 2 - 13A

13700-36F20

Unavailable

2

FILTER ASSY

13780-36E20

Unavailable

3

BASE, FILTER

13790-36E00

$23.92

4

HOLDER, FILTER

13791-36E00

$15.43

5

.SCREW

13831-35F00

$2.38

6

BOLT, WING

13831-37E20

Unavailable

7

WASHER

13792-13A01

$4.34

8

TUBE, OUTLET | MODEL K1

13881-36F00

Unavailable

8

TUBE, OUTLET | MODEL K2/K3

13881-36F10

Unavailable

9

BAND, CDI UNIT

32942-14111

$8.62

10

CLAMP This part replaces 09402-70203.

09402-70902

$5.64

11

MUD GUARD

13738-36E01

$21.90

12

COLLAR, MUD GUARD

13838-02B00

$3.56

13

CAP, AIR CLEANER | MODEL K1/K2

13741-37F02

Unavailable

13A

CAP, AIR CLEANER | MODEL K3

13740-36F20

Unavailable

14

NUT This part replaces 71812-82010.

09148-06021

$3.56
