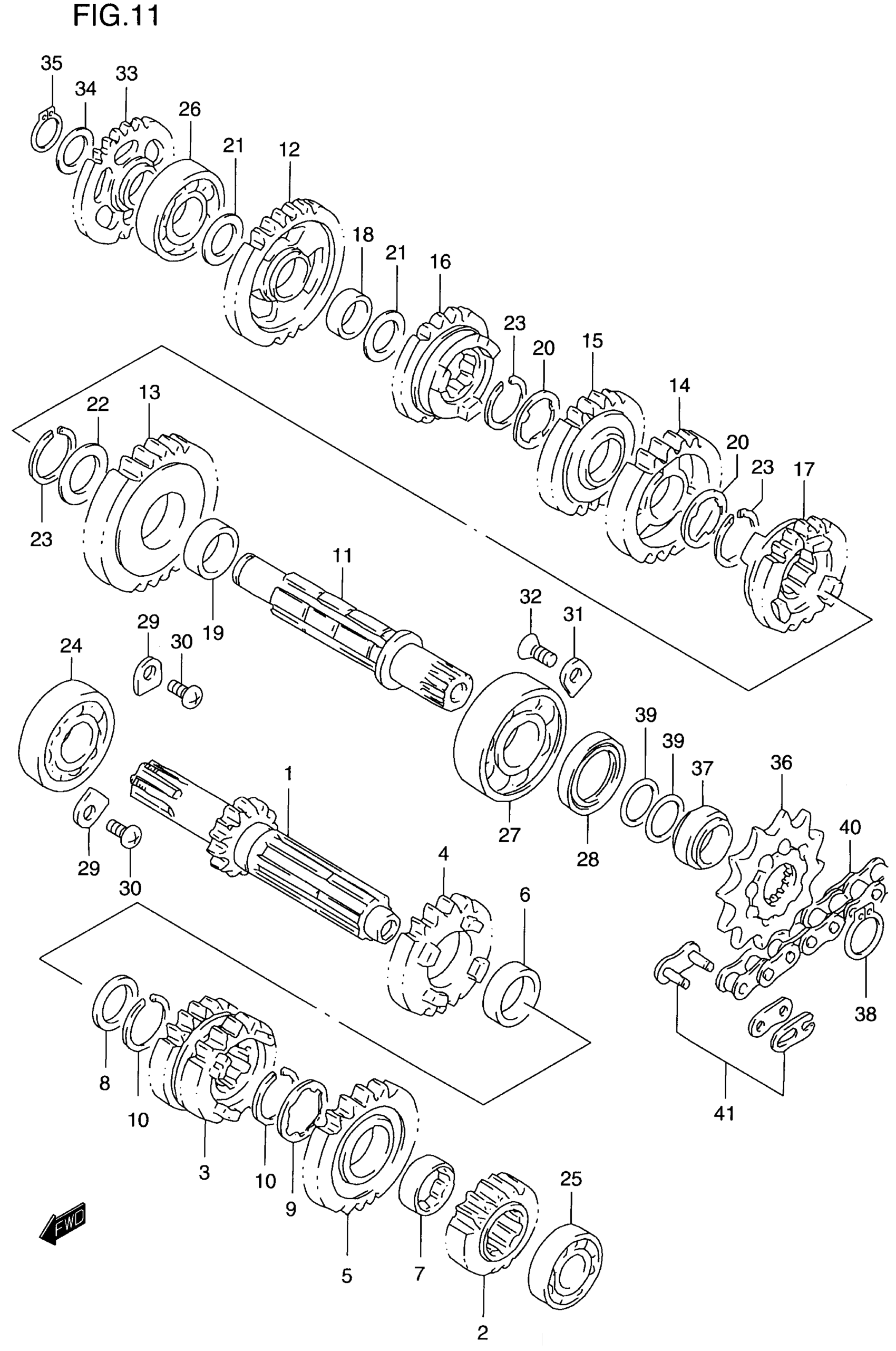

Suzuki RM125 (2000) TRANSMISSION (MODEL T/V) Diagram

#

Description
Price

1

COUNTERSHAFT (NT:14)

24121-43D00

Unavailable

2

GEAR, 2ND DRIVE (NT:16)

24221-43D00

Unavailable

3

GEAR, 3RD & 4TH DRIVE This part replaces 24231-43D10.

24231-43D21

Unavailable

4

GEAR, 5TH DRIVE (NT:19) This part replaces 24251-43D00.

24251-43D20

$107.25

5

GEAR, 6TH DRIVE (NT:20) This part replaces 24261-43D00.

24261-43D01

$107.25

6

BUSH (22X26X9)

09300-22008

$14.82

7

BUSH

24262-43D00

Unavailable

8

WASHER (22X28X1.0) | MODEL T This part replaces 08211-22281.

09181-22139

$3.48

8

WASHER (22X28X1.0) | MODEL V

09181-22139

$3.48

9

WASHER (22.1X27X1)

09167-22014

$3.78

10

CIRCLIP

09380-22006

$3.10

11

DRIVESHAFT

24131-43D01

Unavailable

12

GEAR, 1ST DRIVEN (NT:30)

24311-43D02

Unavailable

13

GEAR, 2ND DRIVEN (NT:28)

24321-43D00

Unavailable

14

GEAR, 3RD CRIVEN (NT:26)

24331-43D11

Unavailable

15

GEAR, 4TH DRIVEN (NT:24)

24341-43D01

Unavailable

16

GEAR, 5TH DRIVEN (NT:20)

24351-43D00

Unavailable

17

GEAR, 6TH DRIVEN (NT:19)

24361-43D01

Unavailable

18

BUSH (17X21X9)

09300-17012

$26.97

19

BUSH (22X26X9)

09300-22008

$14.82

20

WASHER (22X27X0.5)

09167-22022

Unavailable

21

WASHER (17X26X1) | MODEL T This part replaces 08211-17261.

09181-17167

$2.96

21

WASHER (17X26X1.0) | MODEL V

09181-17167

$2.96

22

WASHER, 6TH DRIVE | MODEL T This part replaces 08211-22301.

09181-22167

$2.96

22

WASHER (22X30X1.0) | MODEL V

09181-22167

$2.96

23

CIRCLIP

09380-22006

$3.10

24

BEARING (20X47X12) | RH

09262-20122

$24.83

25

BEARING (15X35X11) | LH

08113-62027

$14.40

26

BEARING (17X40X9.5) | RH

09262-17040

$21.21

27

BEARING (20X52X12.5) | LH

09262-20110

$27.52

28

OIL SEAL (28X38X6)

09283-28020

$9.93

29

HOLDER, BEARING

24741-21A00

$2.81

30

SCREW This part replaces 02112-06103.

02112-0610B

$1.84

31

RETAINER

24741-20A00

$2.81

32

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

33

GEAR, KICK IDLE (NT:26) This part replaces 26260-43D00.

26260-43D01

$85.22

34

WASHER (17X24X0.5) | MODEL T This part replaces 08221-17245.

09181-17130

$2.96

34

WASHER (17X24X0.50) | MODEL V

09181-17130

$2.96

35

CIRCLIP This part replaces 08331-31176.

08331-31179

$1.90

36

SPROCKET, ENGINE (NT:12)

27511-14111

$22.95

36

SPROCKET, ENGINE (NT:11) | OPT

27511-14101

Unavailable

36

SPROCKET, ENGINE (NT:13) | OPT

27511-14121

$34.22

37

SPACER

27531-43D00

$25.29

38

CIRCLIP

09380-20007

$2.43

39

O RING (ID:19.8,D:1.9)

09280-20006

$1.78

40

CHAIN ASSY,DRIVE | L:114(r)112; Includes Item(s) 41 This part replaces 27600-43D00-114.

27600-46K00-114

$140.88

41

.JOINT SET,CHAIN This part replaces 27620-43D00.

27620-46K00

$9.57
