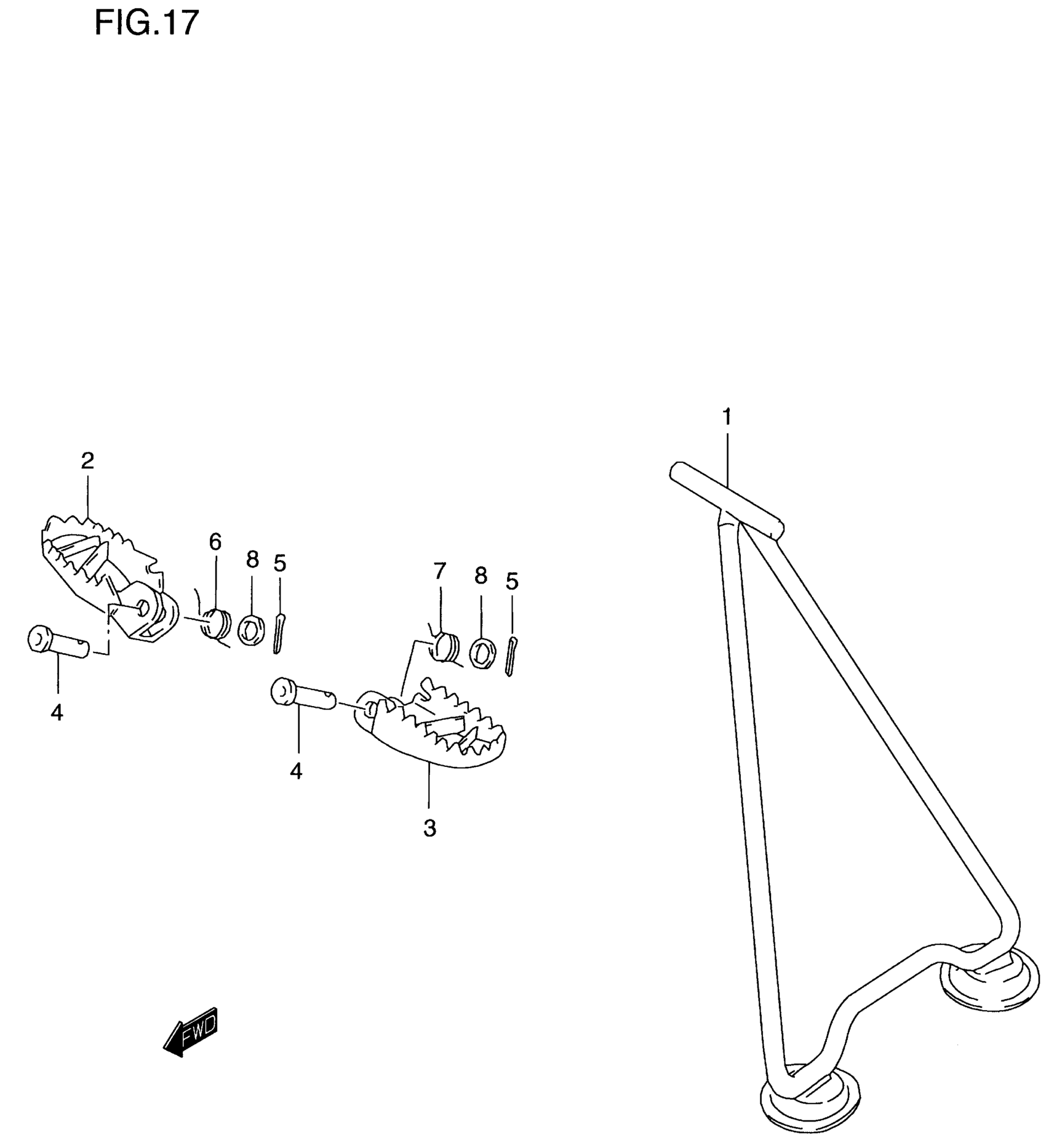

Suzuki RM125 (2000) STAND - FOOTREST Diagram

#

Description
Price

1

STAND, PROP | MODEL T This part replaces 42310-28E10.

42310-28E11

Unavailable

1

STAND, PROP | MODEL V/W/X

42310-28E11

Unavailable

1

STAND, PROP | MODEL Y

42310-36E40

Unavailable

2

FOOTREST,R(BLAC | MODEL T/V/W/X This part replaces 43551-36E00-019.

43551-36E01-019

Unavailable

2

FOOTREST, RH (BLACK) | MODEL Y

43551-36E40-019

Unavailable

3

FOOTREST, LH (BLACK) | MODEL T/V/W/X

43561-36E00-019

Unavailable

3

FOOTREST, LH (BLACK) | MODEL Y

43561-36E40-019

$145.32

4

PIN

09200-10019

$6.83

5

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

6

SPRING, RH

09448-18030

$5.36

7

SPRING, LH

09448-18029

$5.36

8

WASHER, KNUCKLE END This part replaces 08322-01103.

08322-0110A

$1.84
