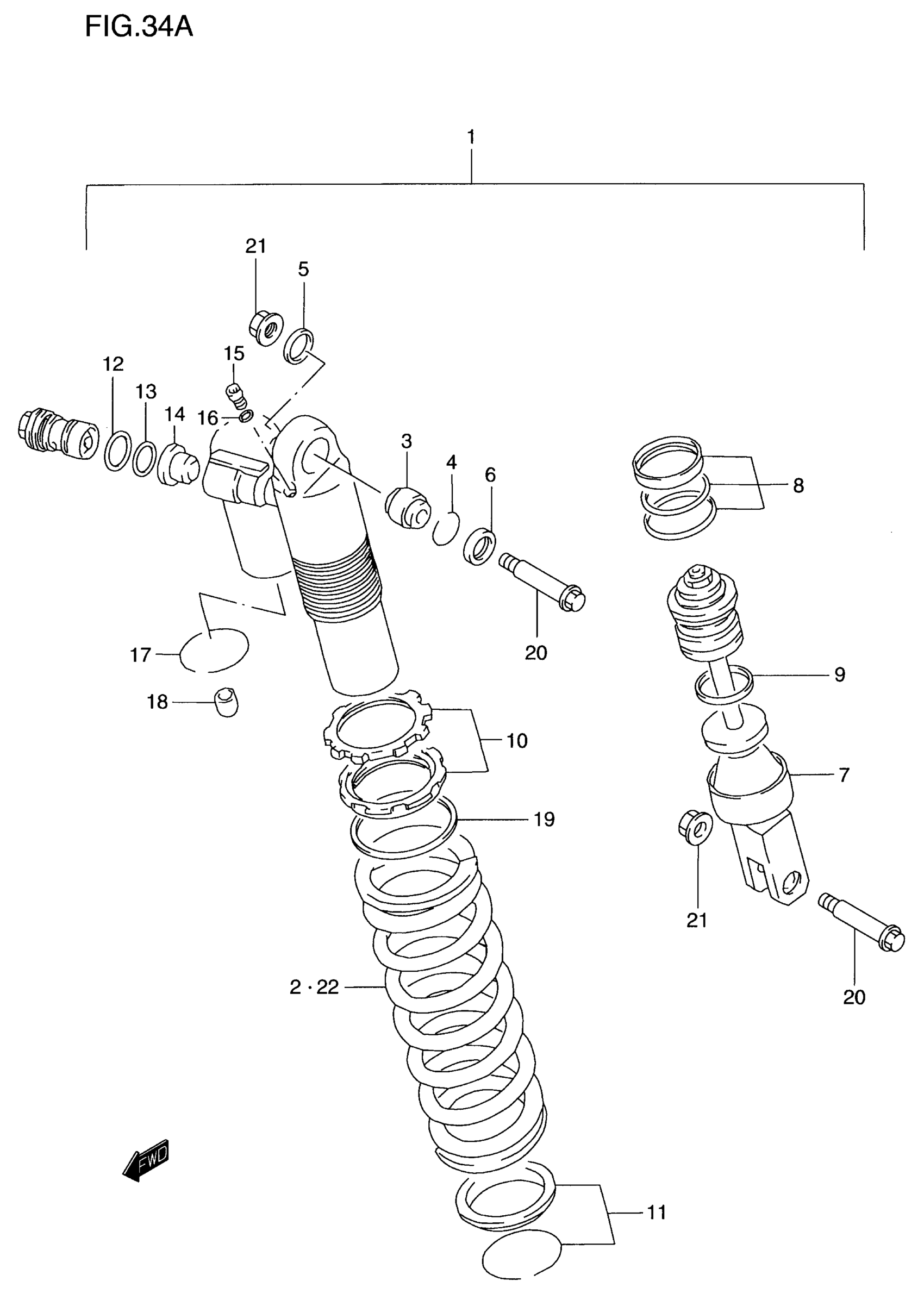

Suzuki RM125 (2000) SHOCK ABSORBER (MODEL V) Diagram

#

Description
Price

1

ABSORBER ASSY, REAR SHOCK (PURPLE) (PURPLE) (PURPLE) | E3; Includes Item(s) 2 - 19

62100-36E30-0RM

Unavailable

2

SPRING (K=4.8)

62211-37E00

Unavailable

3

BEARING

62175-36E00

$102.82

4

RING

62277-27C40

$3.95

5

SEAL, DUST RH

62226-36E00

$10.12

6

SEAL, DUST LH

62226-36E10

$10.32

7

ROD, PISTON

62120-36E30

Unavailable

8

O RING SET

62150-28E00

Unavailable

9

RING, STOPPER

62279-43D00

Unavailable

10

ADJUSTER NUT SET

62190-28E00

Unavailable

11

SPRING SEAT SET

62220-28E00

Unavailable

12

O RING

62131-28E00

$5.00

13

O RING, INNER

51174-43D00

$4.82

14

COLLAR

62227-36E00

Unavailable

15

BOLT

62281-27C40

Unavailable

16

GASKET

51183-31030

$3.77

17

RING, STOPPER

62278-36E00

$8.60

18

CAP

51294-20400

$7.37

19

SEAT, SPRING

62195-36E20

Unavailable

20

BOLT

09103-10149

$3.70

21

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

22

SPRING (K=5.0)(HARD) | OPT

62211-37E10

Unavailable
