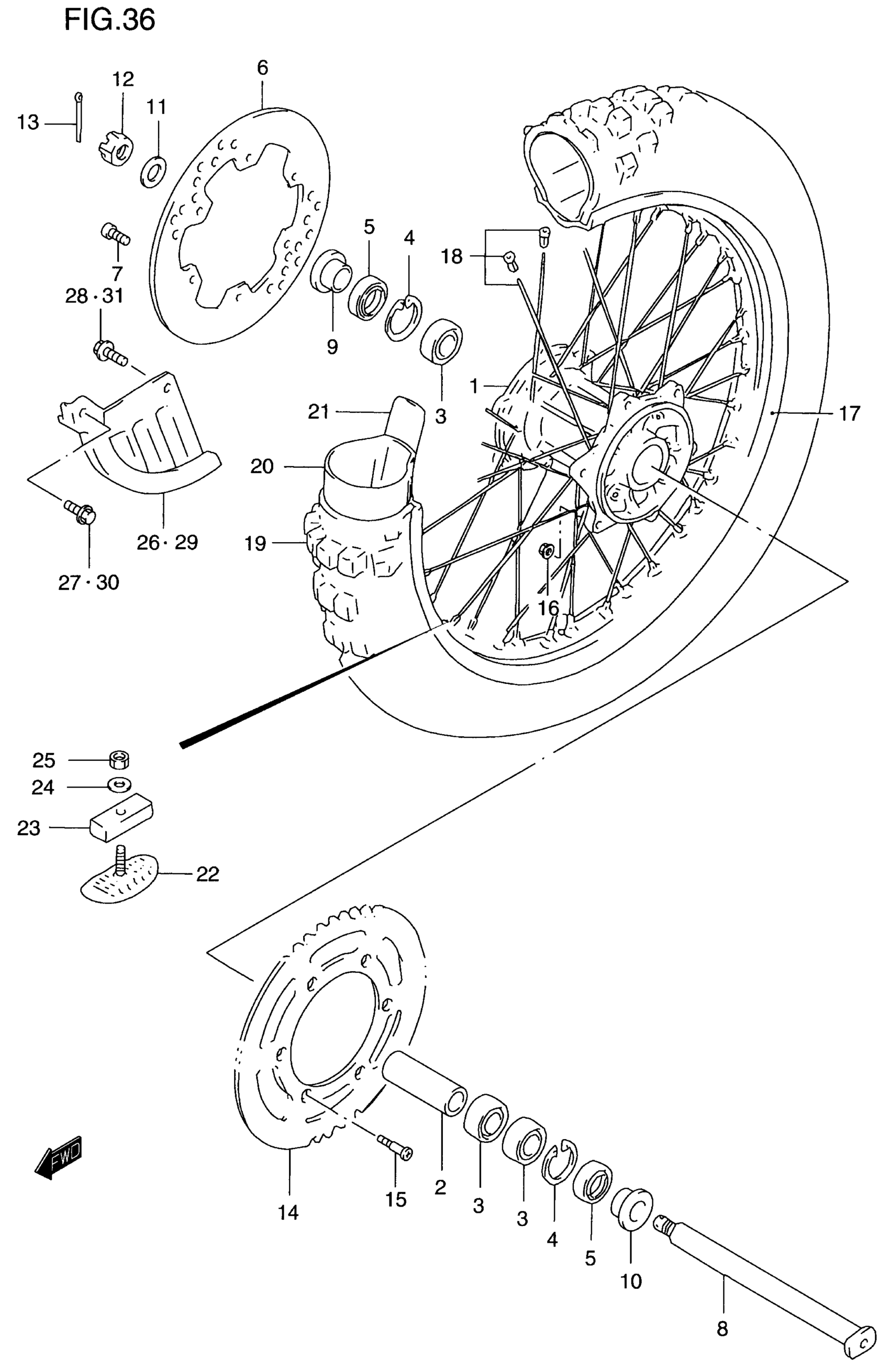

Suzuki RM125 (2000) REAR WHEEL (MODEL T/V/W/X) Diagram

#

Description
Price

1

HUB, REAR WHEEL

64111-43D00

Unavailable

2

SPACER, BEARING (20.5X27.3X95)

64731-43D00

Unavailable

3

BEARING

08133-60047

$25.82

4

CIRCLIP This part replaces 08331-41426.

08331-41429

$2.41

5

SEAL (29X42X6) This part replaces 64841-28E00.

64841-28E01

$7.89

6

DISC, REAR BRAKE | MODEL T/V/W

69211-43D00

$299.30

6

DISC, REAR BRAKE | MODEL X

69211-36E00

Unavailable

7

SCREW, SHIFT PAWL LIFTER This part replaces 09120-06011.

09120-06014

$2.45

8

AXLE, REAR

64711-28E00

Unavailable

9

SPACER, RH

64751-28E20

$27.30

10

SPACER, LH

64751-28E20

$27.30

11

WASHER

09160-19022

$4.90

12

NUT This part replaces 08314-40183.

08314-4018A

$4.64

13

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

14

SPROCKET,RR (NT:49) | MODEL T

64511-28E00

$120.85

14

SPROCKET,RR (NT:50) | MODEL V/W/X

64511-36E00

$126.60

14

SPROCKET, REAR (NT:48) | OPT ALUMINIUM

64511-14D60

Unavailable

14

SPROCKET, REAR (NT:51) | OPT ALUMINIUM

64511-40261

$155.22

15

SCREW (8X30.5)

09120-08010

$2.36

16

NUT

09159-08067

$5.57

17

RIM, REAR WHEEL (2.15X19) This part replaces 65311-27C10.

65311-36E00

Unavailable

18

SPOKE ASSY, WHEEL

65320-28C10

Unavailable

19

TIRE, REAR (100/90-19) (DUNLOP) | MODEL T/V/W This part replaces 65110-43D40.

65110-36E10

Unavailable

19

TIRE, REAR (100/90-19) DUNLOP | MODEL X

65110-36E10

Unavailable

20

TUBE This part replaces 55200-44610.

55200-44611

$33.73

21

PROTECTOR, INNER TUBE

65261-01B30

$6.97

22

STOPPER, BEAD

65270-43D00

$58.75

23

CUSHION, BEAD STOPPER

65271-27C00

$7.42

24

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

25

NUT This part replaces 08310-00083.

08310-0008A

$1.84

26

COVER, REAR DISC | MODEL T/V/W; Includes Item(s) 27 - 28

69200-28C00

$28.44

27

BOLT | MODEL T/V/W This part replaces 01550-06203.

01550-0620A

$1.97

28

BOLT, CLAMP | MODEL T/V/W This part replaces 01550-06123.

01550-0612A

$1.97

29

COVER, REAR DISC | MODEL X This part replaces 69231-36E00.

69231-37F01

$47.40

30

BOLT | MODEL X This part replaces 01550-06203.

01550-0620A

$1.97

31

BOLT, CLAMP | MODEL X This part replaces 01550-06123.

01550-0612A

$1.97
