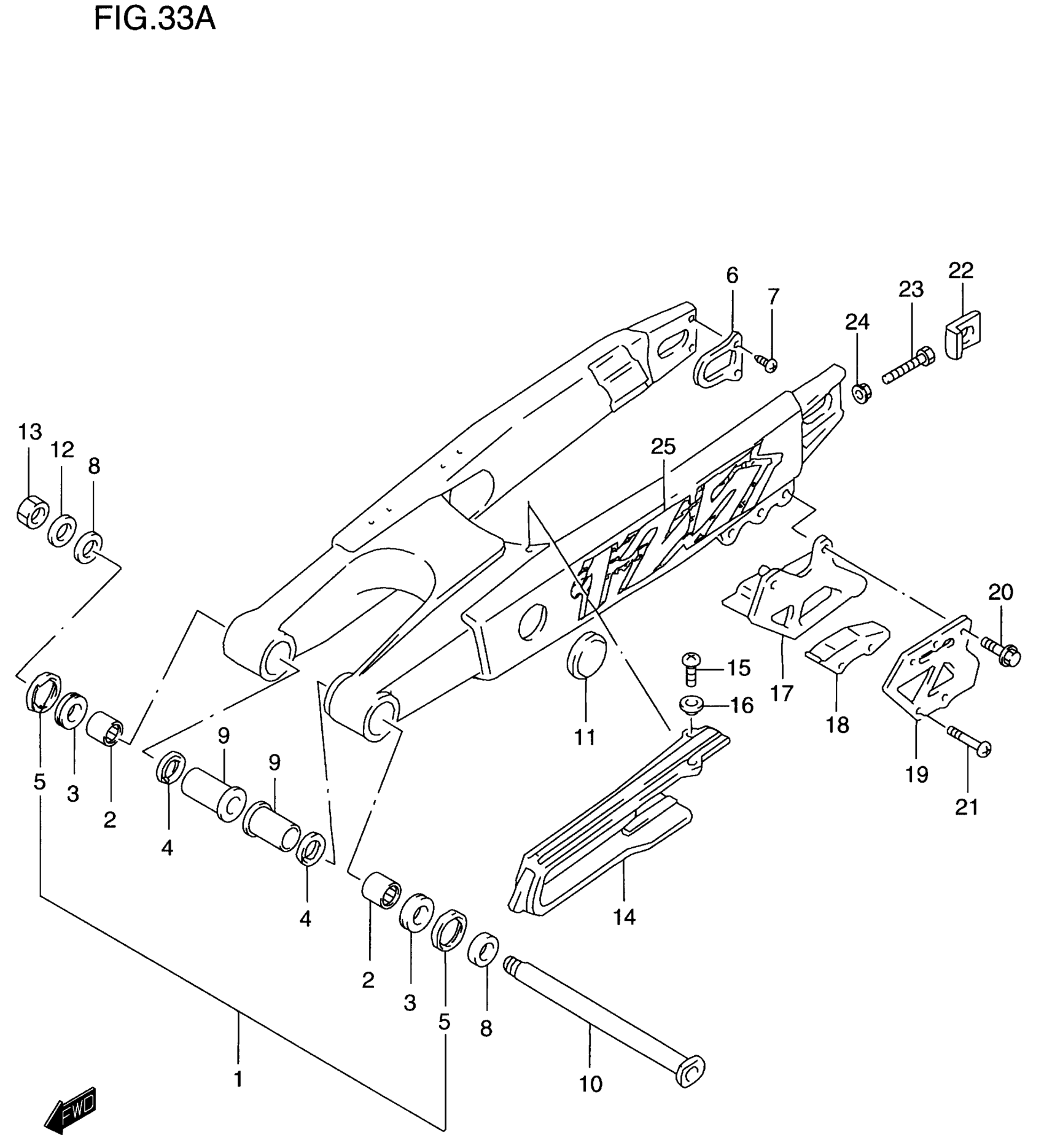

Suzuki RM125 (2000) REAR SWINGING ARM (MODEL V) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 7

61000-36E10

Unavailable

2

BEARING (22X29X30)

09263-22017

$22.58

3

BEARING, OUTER (22X35X2)

09263-22064

$27.72

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.83

5

SEAL, OUTER

61262-36E00

$6.93

6

PLATE, INNER

61128-28E00

Unavailable

7

SCREW (5X8)

09126-05009

$2.28

8

SPACER, PIVOT OUTER

61251-36E01

$13.16

9

SPACER, PIVOT INNER

61252-36E00

$53.92

10

SHAFT, PIVOT

61211-28C00

$67.10

11

CAP

09250-35003

$3.38

12

WASHER This part replaces 08322-01163.

08322-0116A

$1.84

13

NUT

09159-16007

$12.61

14

BUFFER, CHAIN TOUCH DEFENSE

61273-36E10

Unavailable

15

SCREW This part replaces 02112-05123.

02112-0512A

$1.49

16

WASHER

09169-05022

$3.55

17

GUIDE, CHAIN

61341-27C20

$45.08

18

DEFENSE, CHAIN GUIDE

61348-27C20

$32.18

19

PLATE, GUIDE OUTER

61342-28E00

$60.18

20

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

21

SCREW, UNDER (6X40)

09126-06013

$3.60

22

WASHER, CHAIN ADJUSTER

61445-28E10

Unavailable

23

BOLT (8X50)

09100-08287

$3.10

24

NUT

09159-08034

$1.62

25

NO DESCRIPTION AVAILABLE This part replaces 68381-36E10-G7E.

68381-36E11-G7E

Unavailable
